3ECKMF86 02 – SECTION

Products

Position	Product
	WP489069 Whirlpool Compactor Screw
	WP2158826 Whirlpool Refrigerator Dampener
	WP488163 Whirlpool Refrigerator Screw
	WP488366 Whirlpool Refrigerator Clamp
	549193 Whirlpool Refrigerator Power Clamp
	WP2196157 Whirlpool Fill Tube
	WP488878 Whirlpool Refrigerator Tube Clamp
	4387491 Whirlpool Refrigerator Insert
	W10823511 Whirlpool Refrigerator Water Tube
	WP627018 Whirlpool Refrigerator Nut
	Clamp Tube
	WPW10141625 Whirlpool Refrigerator Screw Assembly
	WPL LIT628107

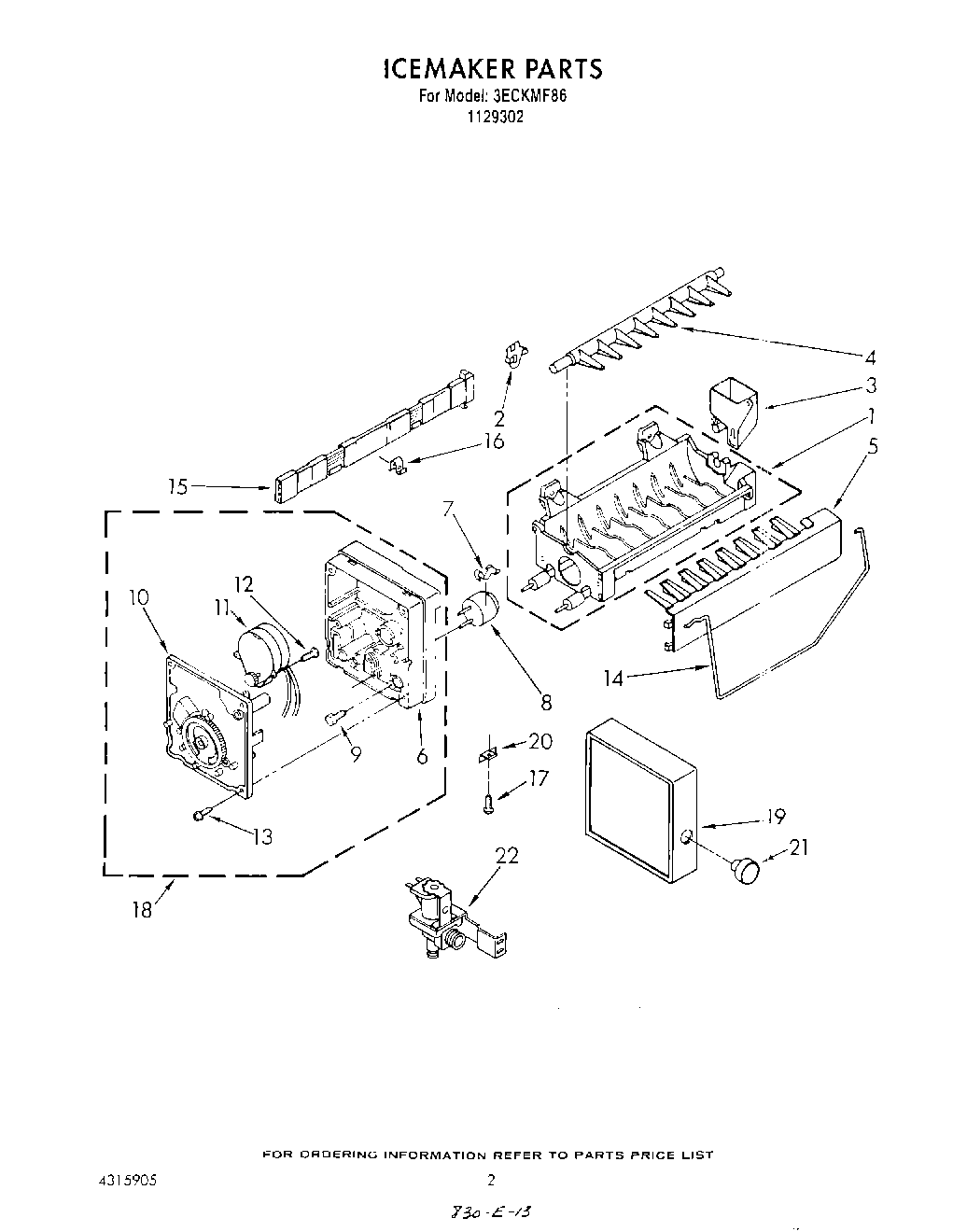

	Parts List
	WP1106508 Whirlpool Refrigerator Gasket
	xxAccessory Bag, Inside Parts
	Instruction Booklet
	Accessory Bag, Outside Parts
	Tube, Inlet Valve
	Washer
	Tube, Water Inlet
	Nut, Valve
1	WPW10122523 Whirlpool Refrigerator Ice Mold
2	WP627712 Whirlpool Refrigerator Mounting Clip
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	8533917 Whirlpool Refrigerator Screw
10	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
12	489136 Whirlpool Refrigerator Screw
13	WP681249 Whirlpool Screw Assembly
14	WP627792 Whirlpool Refrigerator Shut Off Arm
15	WP2187464 Whirlpool Refrigerator Wire Harness
16	WP628379 Whirlpool Refrigerator Clip
17	WP489128 Whirlpool Refrigerator Screw
18	W10190933 Whirlpool Refrigerator Motor Assembly
19	WPW10289690 Whirlpool Ice Maker Cover
20	W11500948 Whirlpool Refrigerator Bracket
21	Knob, Water
22	WP2187501 Whirlpool Refrigerator Wire Harness
22	PAN-ICE
22	Valve, Solenoid
22	Trim, Ice Pan
