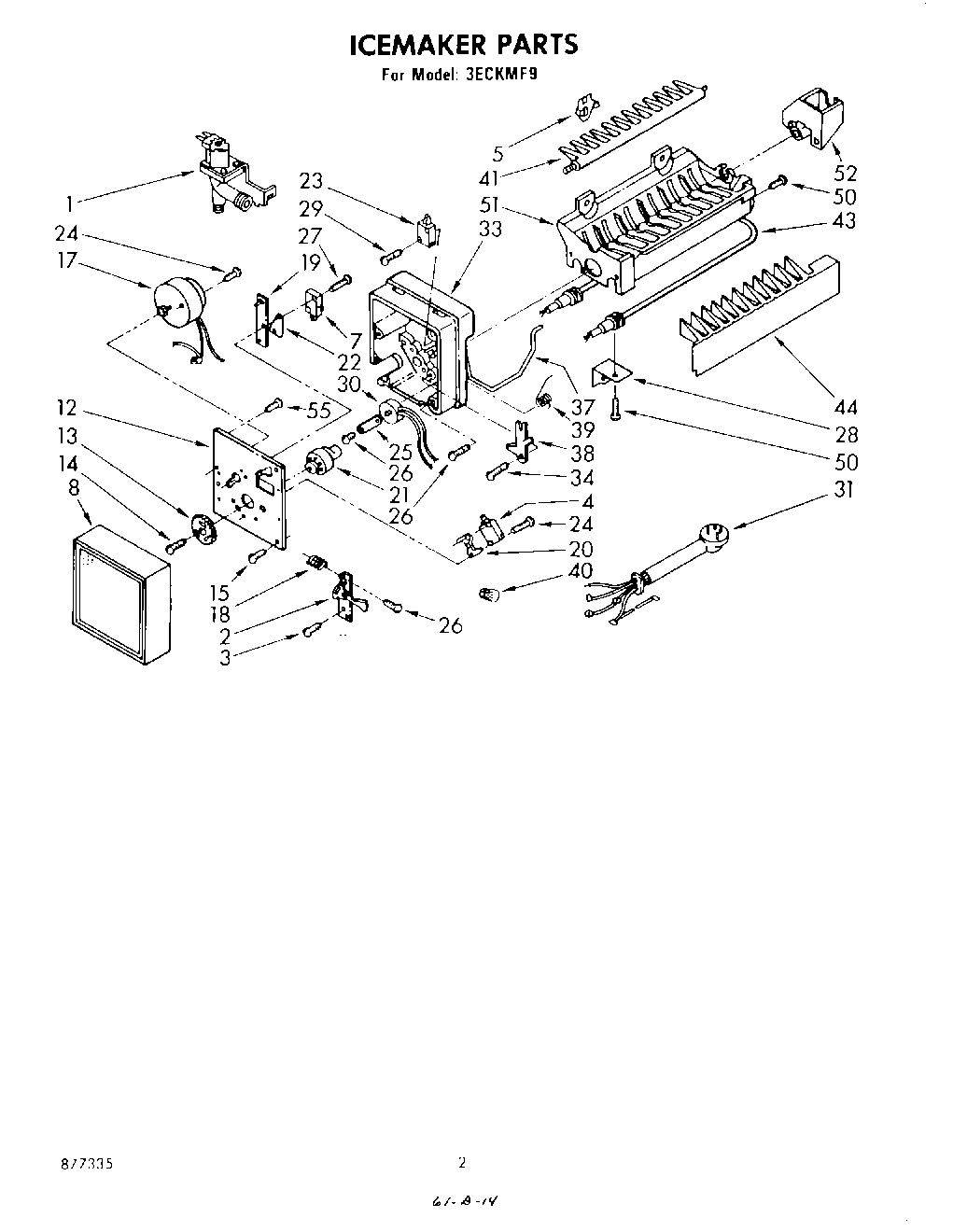

3ECKMF9 02 – SECTION

Products

Position	Product
1	Valve Solenoid
2	Lever & Plate Assembly
3	Screw (Use W/Motor 627106)
4	Switch, S.P.D.T.
5	WP627712 Whirlpool Refrigerator Mounting Clip
7	Switch, S.P.S.T.
8	Cover
12	Plate, Mounting
13	Gear
14	Screw
15	WP488787 Whirlpool Refrigerator Screw
17	Motor
18	Spring
19	Plate, Valve Switch
20	Spacer, Switch (2)
21	Cam
22	Insulator
23	Switch, S.P.D.T. (2)
24	Screw, 4-40 x 1
25	Clamp, Thermostat
26	Screw, 8-32 x 1
27	Screw
28	WP2256087 Whirlpool Refrigerator Bracket
29	Screw, 4-24 x 3/4
30	Thermostat
30	THERMOSTAT (ALTERNATE)
31	Harness Wiring
33	Support
34	Screw, Shoulder
37	Arm, Shut-Off
38	Lever, Arm
39	Spring, Shut-Off Arm
40	Wire Connector
41	Ejector
43	Heater, Mold
44	Stripper, Ice
50	Screw, 8-16 x 3/8
51	Mold & Heater Assembly (Includes Illus. 43)
52	Bearing & Inlet
55	Instruction Booklet
55	Repair Parts List
55	WPL 627131
55	xGrommet, Screw (2)
55	xWater Inlet Tube
55	Tube, Water Inlet
55	Hole Plug
55	Trim, Ice Pan
55	WP16123 Whirlpool Washer
55	WP2158826 Whirlpool Refrigerator Dampener
55	WP488366 Whirlpool Refrigerator Clamp
55	WP488878 Whirlpool Refrigerator Tube Clamp
55	4387491 Whirlpool Refrigerator Insert
55	WP627018 Whirlpool Refrigerator Nut
55	PAN-ICE
55	WP489069 Whirlpool Compactor Screw
55	Clamp Tube
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
55	Screw, Ground
55	Clip
55	Nut, Valve
55	Tube, Inlet
55	W10823511 Whirlpool Refrigerator Water Tube
55	SCREW
