3ED22DQXBN02 04 – FREEZER LINER

3ED22DQXBN02 04 – FREEZER LINER

Written by

in

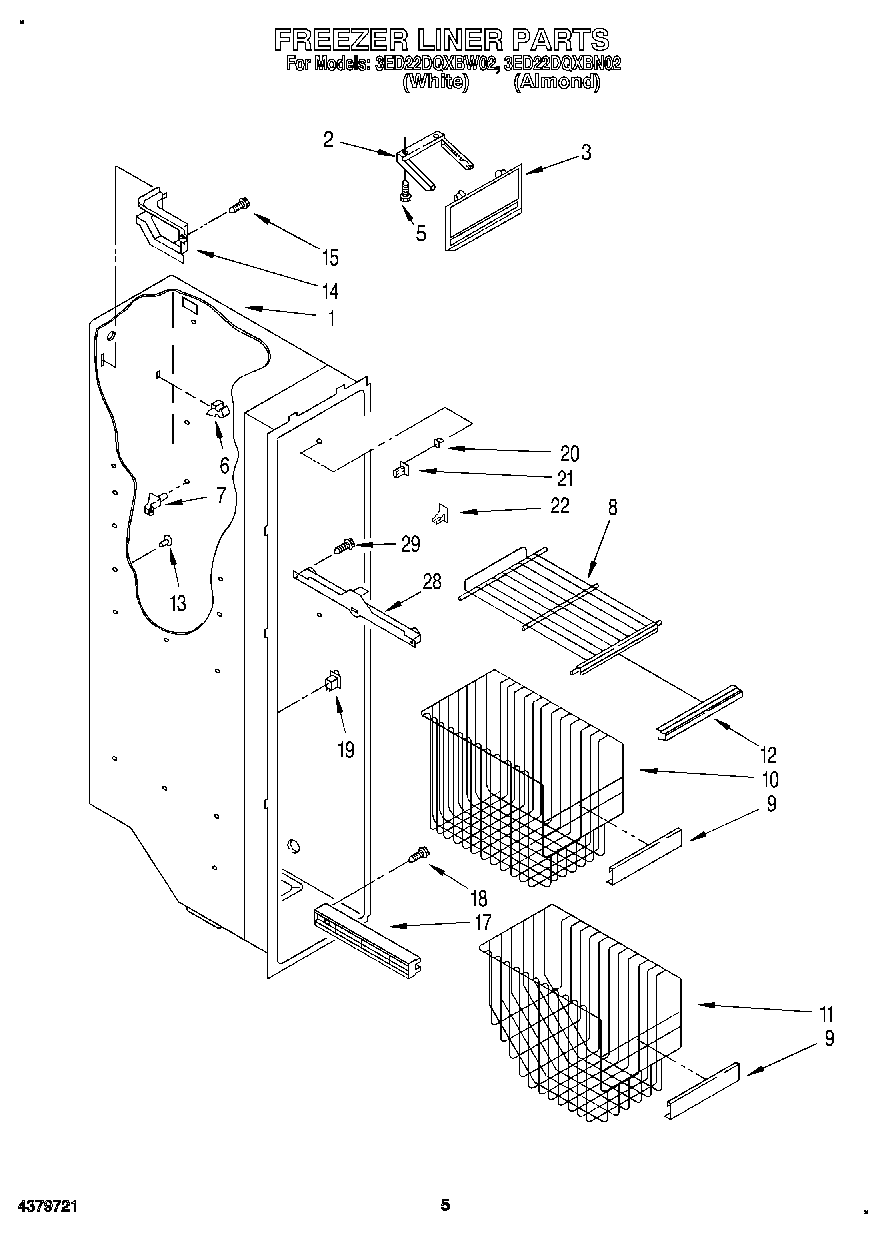

3ED22DQXBN02 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
3Door, Ice Compartment
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf
9Trim, Basket
10Basket, Tall
11Basket, Slope
12Trim, Shelf
13Grommet (8)
14Cover, Wiring
15WP488729 Whirlpool Refrigerator Door Screw
17Shelf Track (Left Side (4))
17Shelf Track (Right Side (4))
18W11693756 Whirlpool Screw Assembly
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Stud, Support
21Stud, Front R.S.
22Stud, Rear R.S.
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
