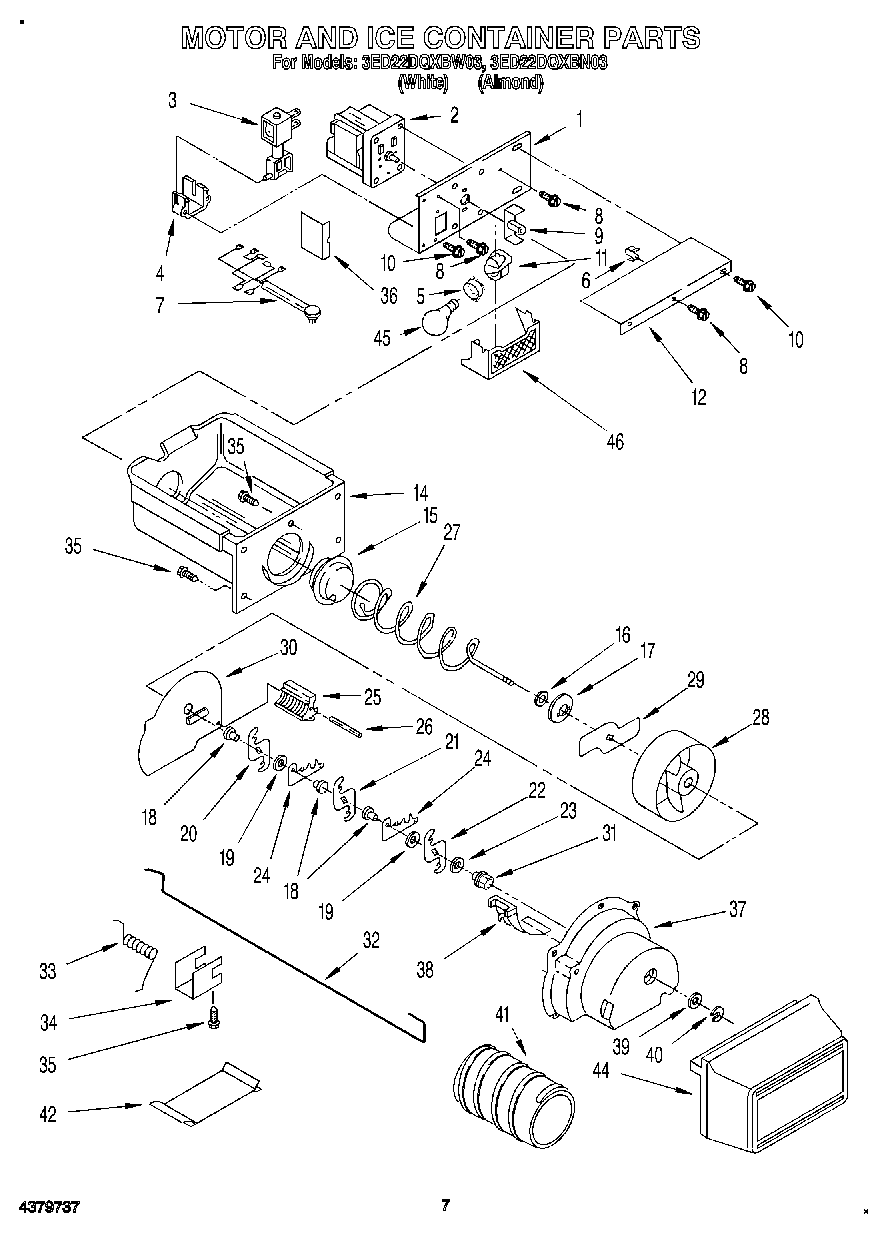

3ED22DQXBN03 05 – MOTOR AND ICE CONTAINER

3ED22DQXBN03 05 – MOTOR AND ICE CONTAINER

3ED22DQXBN03 05 – MOTOR AND ICE CONTAINER

Products

PositionProduct
2Motor, Dispenser
3WPW10129867 Whirlpool Refrigerator Solenoid
4W10850503 Whirlpool Refrigerator Guide
5WP2175210 Whirlpool Refrigerator Shroud
6WP1115374 Whirlpool Refrigerator Clip
7Wiring Assembly, Ice Dispenser
8WP489399 Whirlpool Refrigerator Screw
9COUPLING AUGER MOTOR
10WP489478 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
12WPW10284487 Whirlpool Refrigerator Bracket
14WP2196089 Whirlpool Refrigerator Container
15W10749708 Whirlpool Refrigerator Coupling
16Stop, Cone
17Feeder Cone
18WP1119005 Whirlpool Refrigerator Spacer
19WP1119007 Whirlpool Refrigerator Spacer
20W10278731 Whirlpool Refrigerator Blade
21W10278732 Whirlpool Refrigerator Blade
22W10278733 Whirlpool Refrigerator Blade
23WP489235 Whirlpool Refrigerator Washer
24Blade, Fixed (2)
252157405 Whirlpool Refrigerator Blade Block
26489229 Whirlpool Refrigerator Roll Pin
27W10422851 Whirlpool Ice Maker Bucket Auger
294388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30W10852691 Whirlpool Refrigerator Baffle
31WP1119018 Whirlpool Refrigerator Bearing
32W11596045 Whirlpool Refrigerator Control Arm
331119020 Whirlpool Refrigerator Spring
341119021 Whirlpool Refrigerator Clip
35WP488787 Whirlpool Refrigerator Screw
361129563 Whirlpool Shield
37WPW10185018 Whirlpool Refrigerator Housing
38WP1119017 Whirlpool Refrigerator Deflector
39489234 Whirlpool Refrigerator Washer
40WP489236 Whirlpool Refrigerator Ring
414317870 Whirlpool Refrigerator Auger Sleeve
42Housing Filler
44Front Cover, Ice Container
45WP67002552 Whirlpool Refrigerator Light Bulb
46Lens, Dispenser Light
