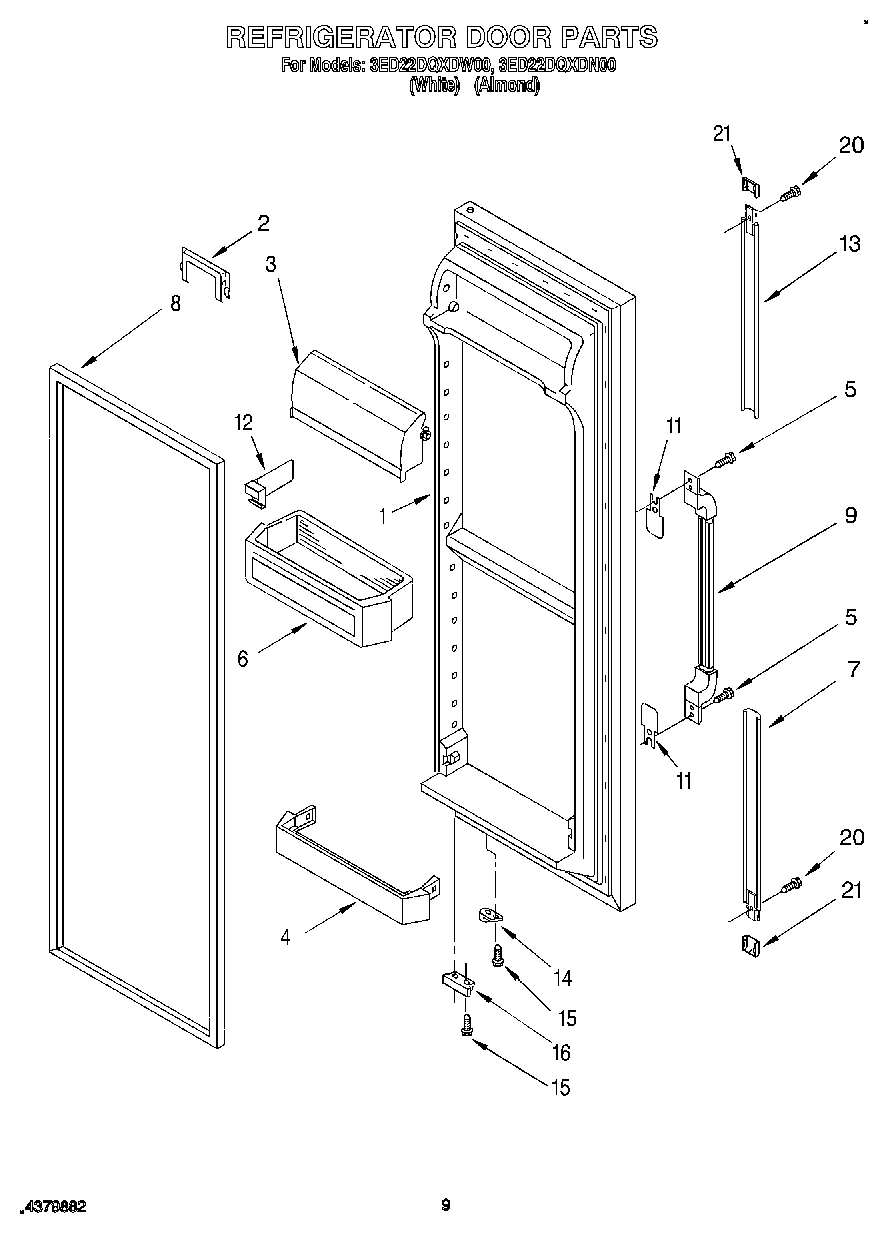

3ED22DQXDN00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (Almond)
1	Refrigerator Door (Includes Item No.6)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489463 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Extension, Bottom (Almond)
7	Extension, Bottom (White)
8	2159073 Whirlpool Refrigerator Door Gasket
9	Handle, Center (Almond)
9	Handle, Center (White)
11	Shim
12	WPL 2171284
13	Extension, Top (White)
13	Extension, Top (Almond)
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP999367 Whirlpool Refrigerator Screw
16	Bracket, Door Stop
21	Cover, Endcap (White)
21	Cover, End Cap (Almond)
