3ED22DQXDN00 12 – CONTROL, LIT/OPTIONAL

3ED22DQXDN00 12 – CONTROL, LIT/OPTIONAL

Written by

in

3ED22DQXDN00 12 – CONTROL, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2170416
	WPL LIT628371
	WPL LIT2165605

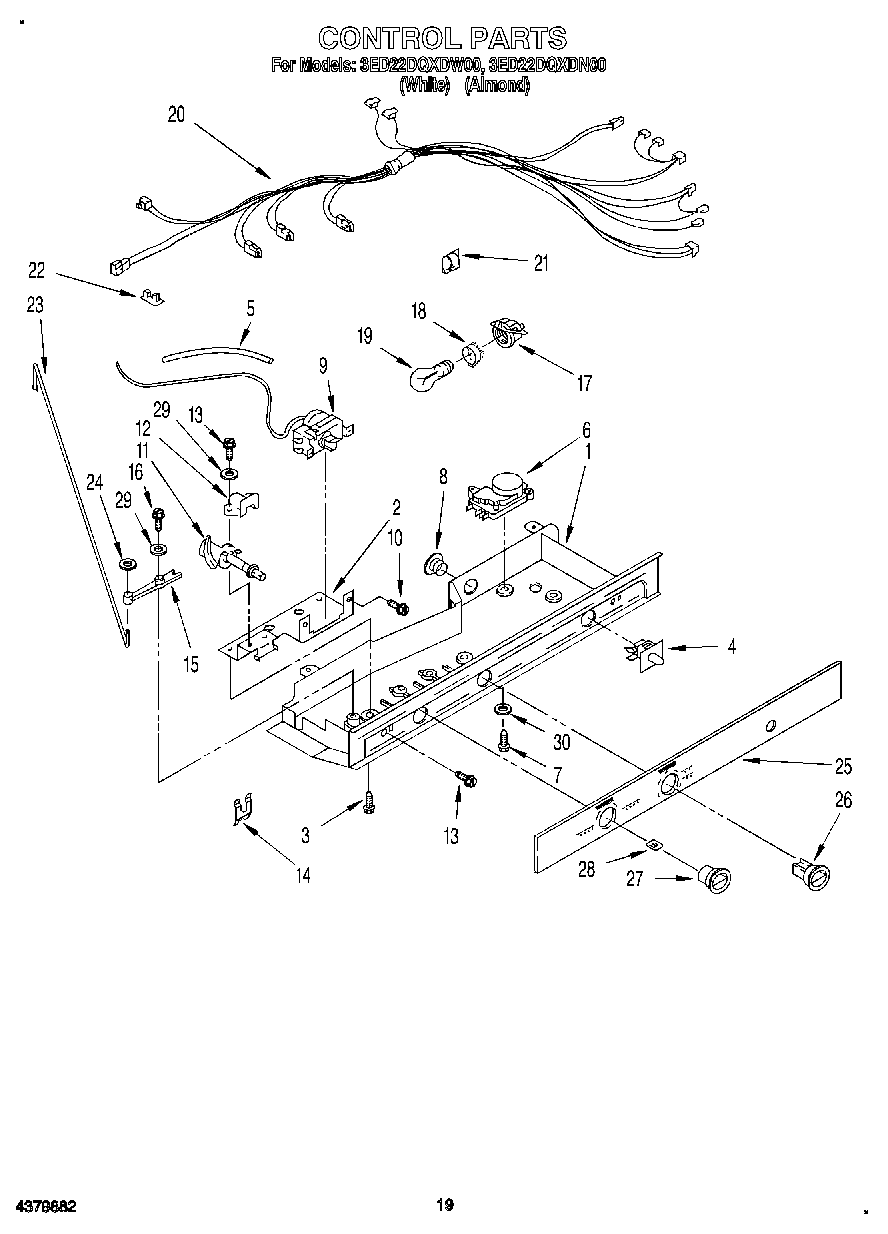

1	Control Box
2	Mounting Bracket
3	Screw (2)
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP2166867 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	Cam Assembly
12	1110560 Whirlpool Refrigerator Bearing
13	WP489478 Whirlpool Refrigerator Screw
14	Retainer, Damper
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	WP2175210 Whirlpool Refrigerator Shroud
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	2182111 Whirlpool Refrigerator Thermal Knob
27	Knob, Air Control
28	Knob, Retainer
29	489203 Whirlpool Refrigerator Washer
30	350930 Whirlpool White Spray Paint
30	876370 Whirlpool Refrigerator Insulation
30	72017 Whirlpool Appliance Touch-Up Paint White
30	Washer
30	350956 Whirlpool Spray Assembly
30	799344 Whirlpool Refrigerator Paint
30	285006 Whirlpool Spray
30	WP72107 Whirlpool Touchup
30	511873 Whirlpool Refrigerator Paint
30	606755 Whirlpool Refrigerator Bag
30	833938 Whirlpool Refrigerator Terminal
30	WP503695 Whirlpool Refrigerator Sealer
30	WP505587 Whirlpool Refrigerator Sealer
30	WP542638 Whirlpool Refrigerator Grease
30	212643 Whirlpool Refrigerator Permagum Sealer
30	TAPE, VINYL (3/4 X 108“)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	Enamel, Black (1 Qt. Uncut)
30	WPL 799833
30	WPL 876029
30	72032 Whirlpool Touch Up Paint Black
30	Almond (Uncut)
30	Leveler (Thinner)
30	350942 Whirlpool Spray Paint
