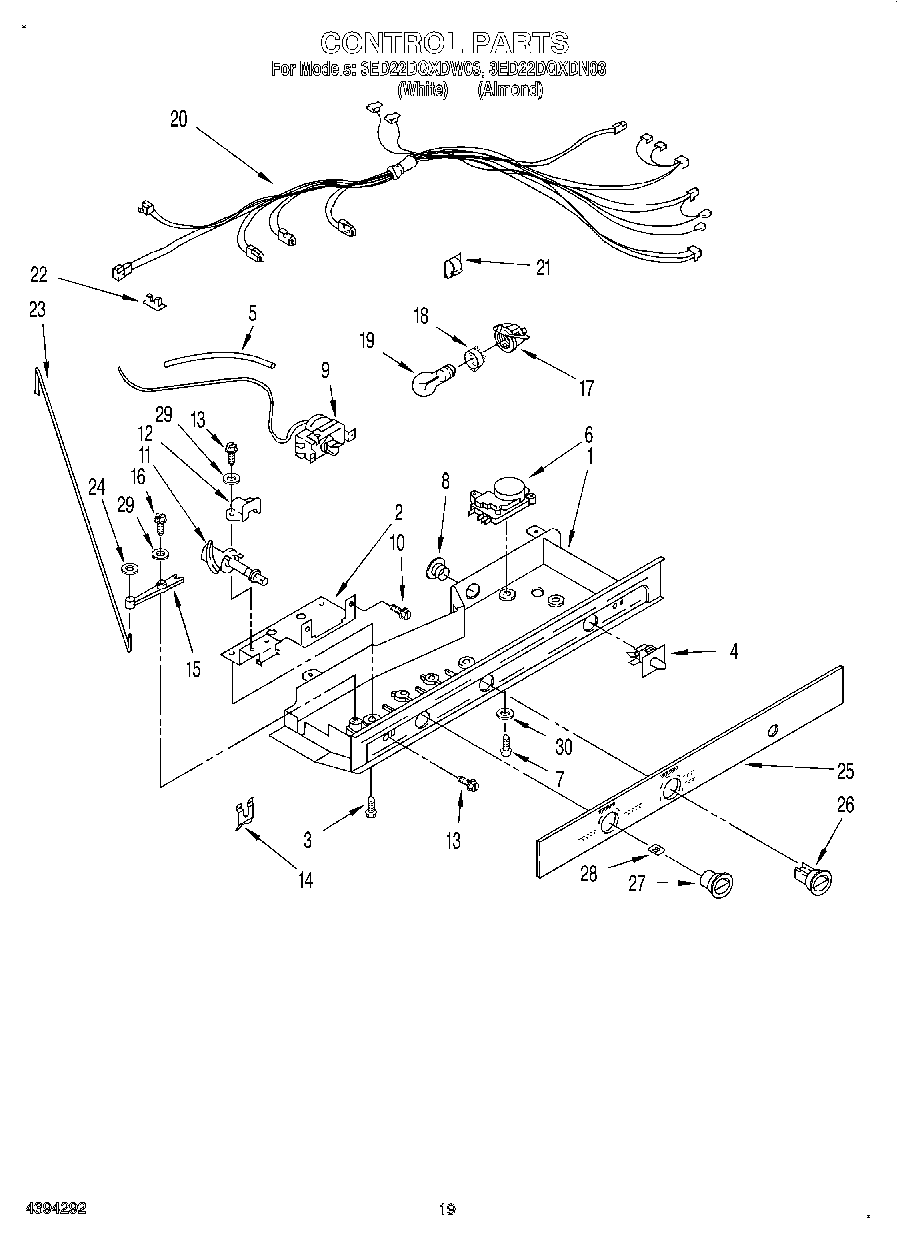

3ED22DQXDN03 12 – CONTROL, LIT/OPTIONAL

3ED22DQXDN03 12 – CONTROL, LIT/OPTIONAL

Written by

in

3ED22DQXDN03 12 – CONTROL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2182955
WPL LIT628371
WPL LIT2165605
Torx Key
WPW10312301 Whirlpool Refrigerator Ice Container
1Control Box
2Mounting Bracket
3Screw (2)
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP2166867 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11Cam Assembly
121110560 Whirlpool Refrigerator Bearing
13WP489478 Whirlpool Refrigerator Screw
14Retainer, Damper
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18WP2175210 Whirlpool Refrigerator Shroud
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
28Knob, Retainer
29489203 Whirlpool Refrigerator Washer
30350930 Whirlpool White Spray Paint
30Washer
30TAPE, VINYL (3/4 X 108“)
3072032 Whirlpool Touch Up Paint Black
30511873 Whirlpool Refrigerator Paint
30350942 Whirlpool Spray Paint
30212643 Whirlpool Refrigerator Permagum Sealer
30Almond (Uncut)
30Leveler (Thinner)
30WP72107 Whirlpool Touchup
30799344 Whirlpool Refrigerator Paint
3072017 Whirlpool Appliance Touch-Up Paint White
30606755 Whirlpool Refrigerator Bag
30833938 Whirlpool Refrigerator Terminal
30876370 Whirlpool Refrigerator Insulation
30285006 Whirlpool Spray
30WPL 876029
30WPL 799833
30Enamel, Black (1 Qt. Uncut)
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
30WP542638 Whirlpool Refrigerator Grease
30WP505587 Whirlpool Refrigerator Sealer
30WP503695 Whirlpool Refrigerator Sealer
30350956 Whirlpool Spray Assembly
