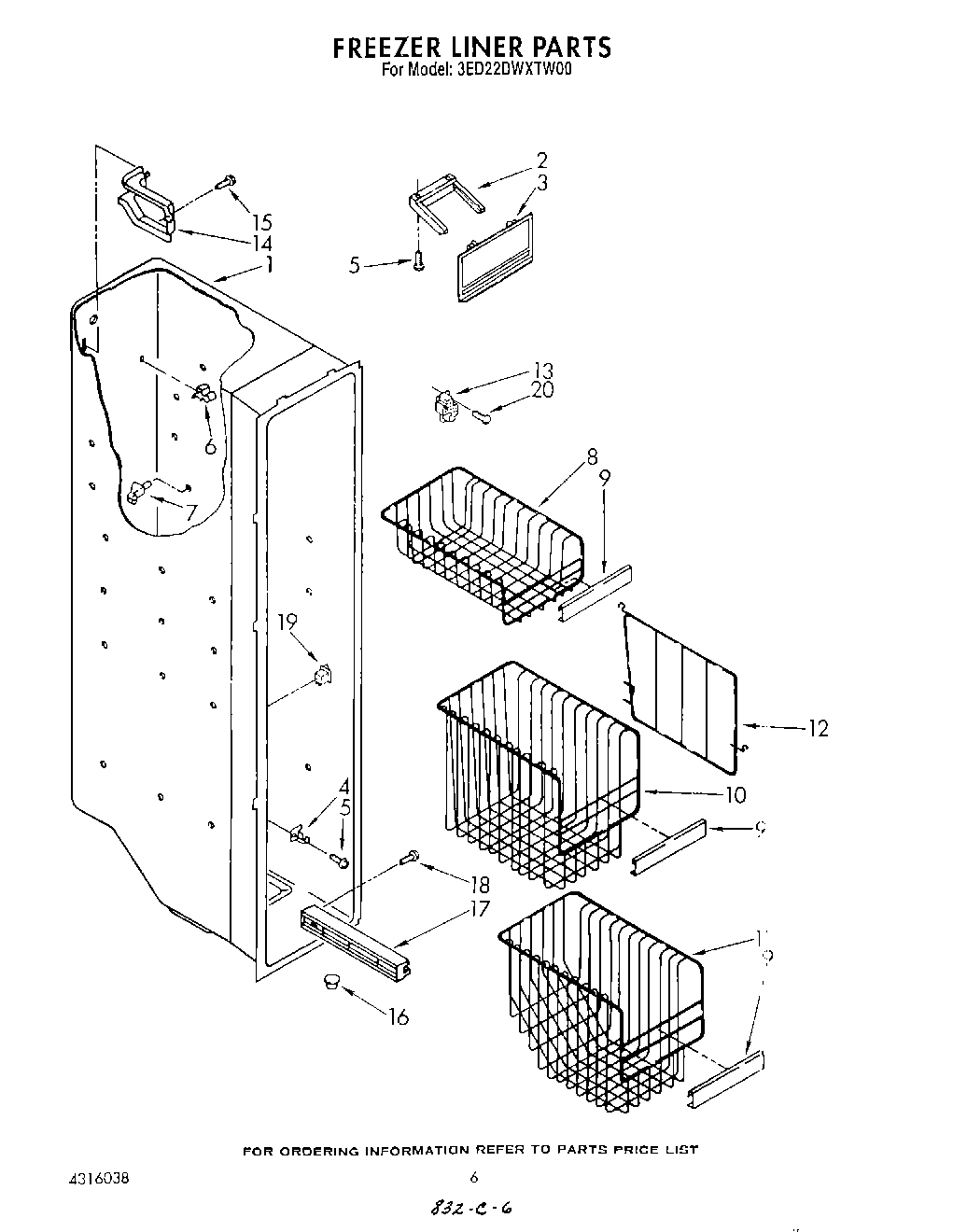

3ED22DWXTN00 05 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	Door, Ice Compartment
4	Evaporator, Support
5	W11624204 Whirlpool Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Basket (2)
9	Trim, Basket
10	Basket, Tall
11	Basket, Slope
12	Rack, Pizza
13	Terminal Block, Multiple
14	Wiring Cover
15	WP488729 Whirlpool Refrigerator Door Screw
16	Fitting, Drain
17	Shelf Track, (Left Side)
17	Shelf Track, (Right Side)
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	SCREW
20	WP489478 Whirlpool Refrigerator Screw
