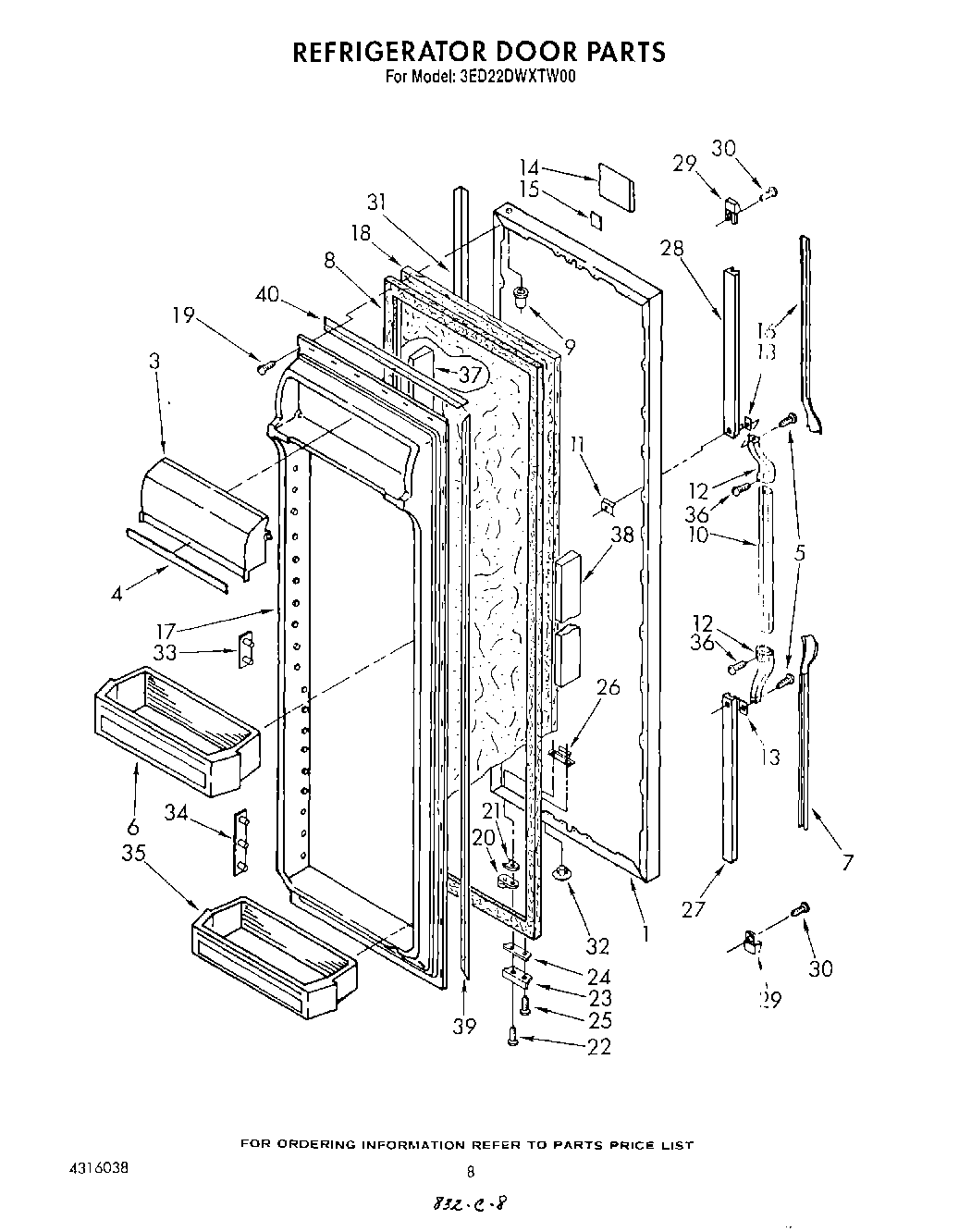

3ED22DWXTN00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 18)
1	Refrigerator Door (Almond (Also Order Item 18))
3	Door, Compartment
4	Trim, Compartment Door
5	WP488729 Whirlpool Refrigerator Door Screw
6	Shelf Bin (2)
7	Insert, Handle (White)
7	Insert, Handle (Almond)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
14	Nameplate
15	Tape Strip
16	Insert, Handle (Almond)
16	Insert, Handle
17	Panel, Interior Door
18	WPL 876029
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
25	Screw, 89 x 5/8
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap
30	Screw
31	Trim, Door
32	Hole Plug (2)
33	Pin Plate (6)
34	Pin Plate (8)
35	Shelf Bin (2)
36	Screw
37	Door Dike, Hinge Side
38	Door Dike, Handle Side
39	Retainer, Gasket
40	Gasket Retainer, Top & Bottom
40	woodgrain handle insert
40	Timeless Black Decor Panel
40	Black Handle Insert
