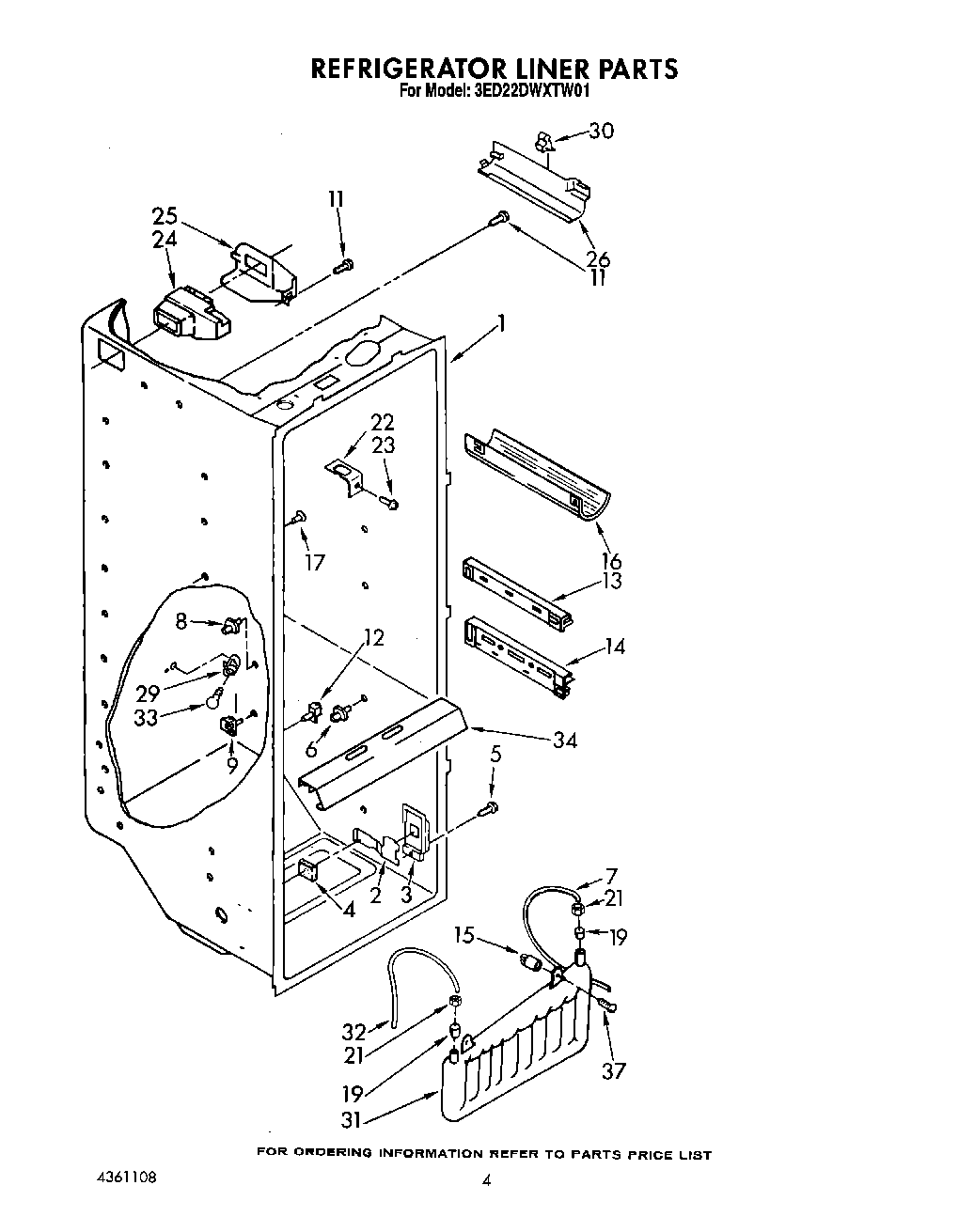

3ED22DWXTN01 03 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide, Meat Pan Control
4	Pad, Foam
5	Screw, 8-15 x 1/2 (4)
6	WP2149540 Whirlpool Shelf Support
7	W10823511 Whirlpool Refrigerator Water Tube
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	Stud (2)
11	W10759522 Whirlpool Screw
13	Track, Shelf (Right Side (2))
13	Track, Shelf (Left Side (2))
14	WP1115265 Whirlpool Refrigerator Track
14	Track, Shelf (Right Side)
15	Stud, Spacer (2)
16	Wine Rack
17	WP1114631 Whirlpool Refrigerator Shelf Support Stud
19	Insert, Tube
21	Nut, Compression
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
31	WP2256126 Whirlpool Refrigerator Reservoir
32	Tube
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
