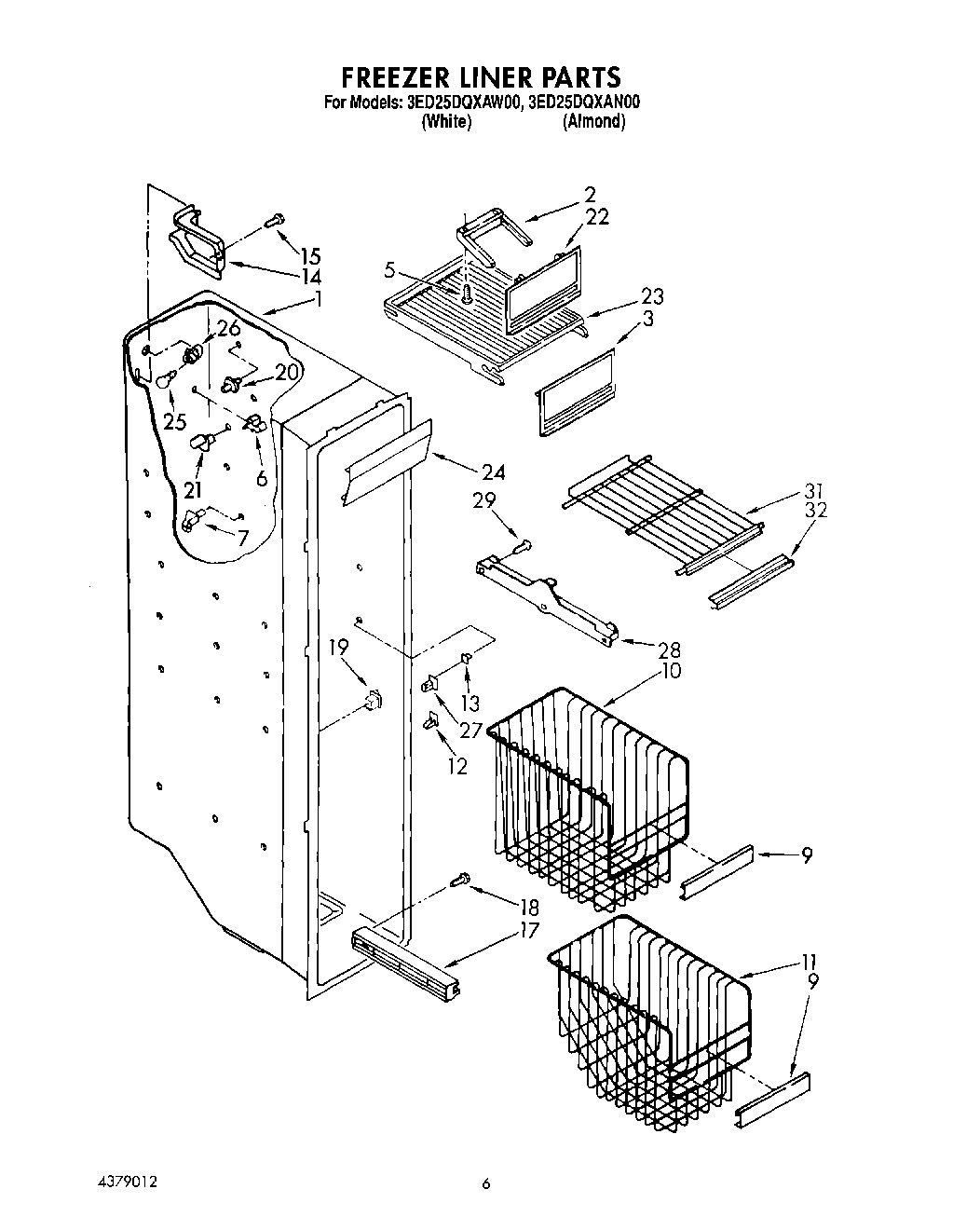

3ED25DQXAW00 04 – FREEZER LINERadmin2025-04-26T12:16:05+00:003ED25DQXAW00 04 – FREEZER LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Slide, Ice Door |
| 3 | Door, Ice Compartment |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 6 | 2215823 Whirlpool Refrigerator Clip |
| 7 | 4388405 Whirlpool Refrigerator Shelf Stud |
| 9 | Trim, Basket |
| 10 | Basket, Tall |
| 11 | Basket, Slope |
| 12 | Stud, Rear R.S. |
| 13 | Stud, Support |
| 14 | Cover, Wiring |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Shelf Track (Right Side (4)) |
| 17 | Shelf Track (Left Side (4)) |
| 18 | W11693756 Whirlpool Screw Assembly |
| 19 | W11457217 Whirlpool Refrigerator Rocker Switch Combination |
| 20 | 4388538 Whirlpool Refrigerator Stud Shelf Kit (White) |
| 21 | Stud, Shelf (4) |
| 22 | Door, Top Compartment |
| 23 | Shelf, Top Compartment |
| 24 | Light Lens |
| 25 | WP67002552 Whirlpool Refrigerator Light Bulb |
| 26 | 4387478 Whirlpool Refrigerator Light Socket |
| 27 | Stud, Front R.S. |
| 28 | W10845585 Whirlpool Refrigerator Track |
| 28 | W10845583 Whirlpool Refrigerator Track |
| 29 | 718257 Whirlpool Dishwasher Screw |
| 31 | WP2174267 Whirlpool Refrigerator Wire Shelf |
| 32 | Trim, Shelf |
