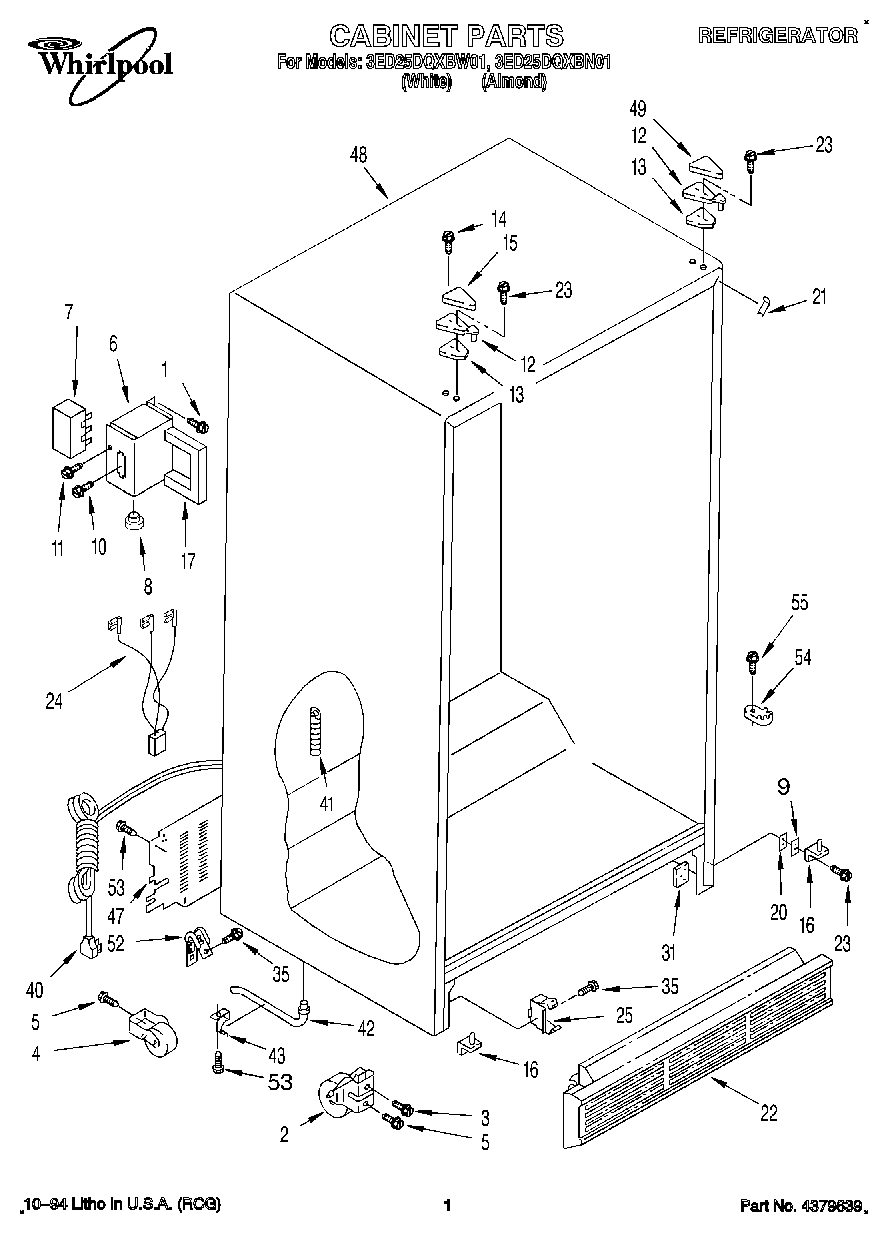

3ED25DQXBN01 01 – CABINET

Products

Position	Product
1	WP250830 Whirlpool Refrigerator Screw
2	Roller, Front
3	Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Enclosure, Term.
7	Terminal Block
8	Bushing
9	WP2181911 Whirlpool Refrigerator Shim
10	WPW10272364 Whirlpool Refrigerator Screw
11	Screw
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
14	Screw
15	WP1129262 Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	Gasket
20	Spacer, Hinge
21	Filler, Wrapper (White)
21	Filler, Wrapper (Almond)
22	Grille (White)
22	Grille (Almond)
23	WP999367 Whirlpool Refrigerator Screw
24	Wiring Assembly, Terminal Block
25	WP2155013 Whirlpool Refrigerator Clip
31	Tap Plate (2)
35	WP489478 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
52	489348 Whirlpool Refrigerator Tube Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
