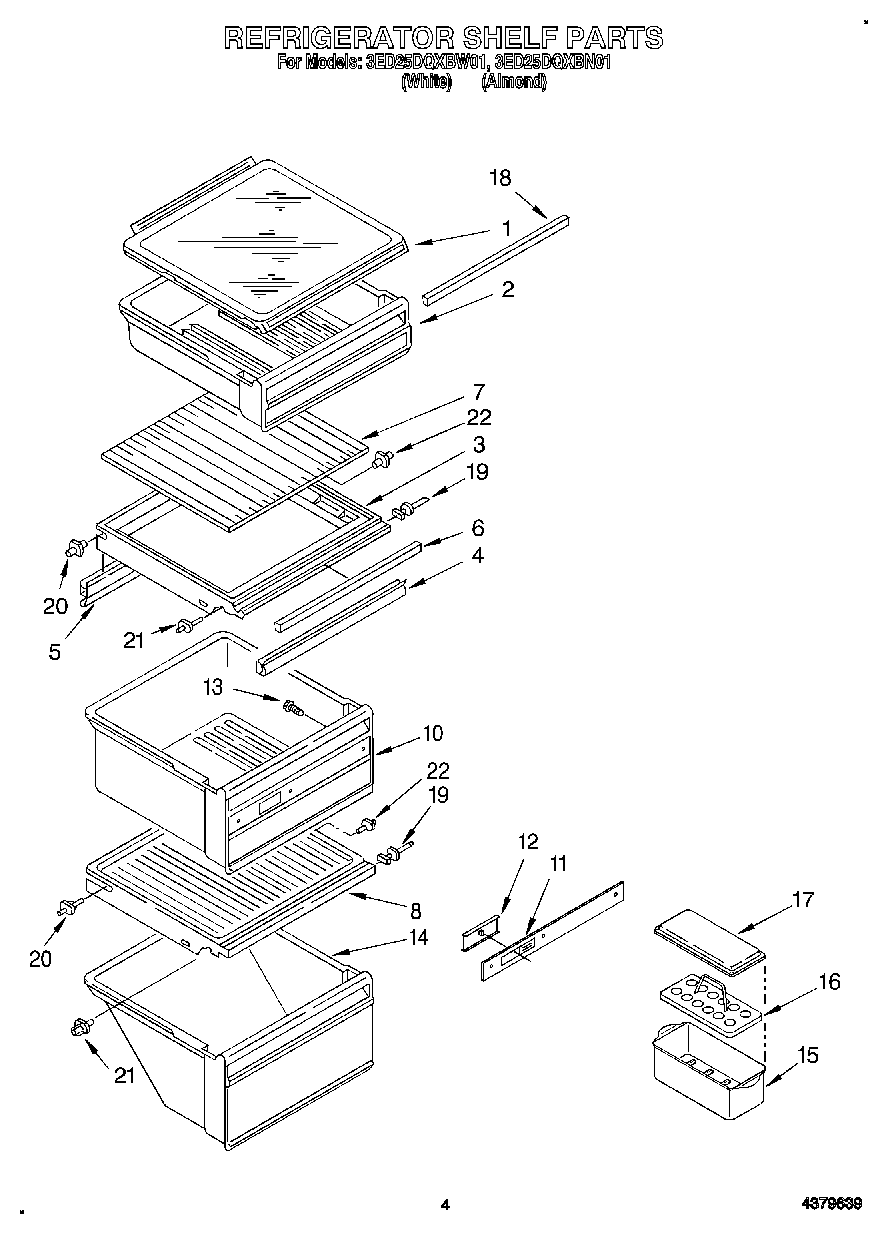

3ED25DQXBN01 03 – REFRIGERATOR SHELF

3ED25DQXBN01 03 – REFRIGERATOR SHELF

Written by

in

3ED25DQXBN01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Glass Sliding (3)
2Snack Bin
3WP1126289 Whirlpool Refrigerator Cover
4Gasket, Crisper (Front)
5Gasket, Crisper (Rear)
6Trim, Crisper Cover
7Glass, Crisper Cover
8WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
10Pan, Crisper
11Front, Crisper Pan
12Slide, Humidity Control
13Screw (3)
14Meat Pan
15W10136387A Whirlpool Refrigerator Egg Container
16WP2177817 Whirlpool Refrigerator Egg Container
17Cover
18Trim
20Stud (2)
21WP2149540 Whirlpool Shelf Support
224388538 Whirlpool Refrigerator Stud Shelf Kit (White)
