3ED25DQXVW01 13 – CONTROL

3ED25DQXVW01 13 – CONTROL

Written by

in

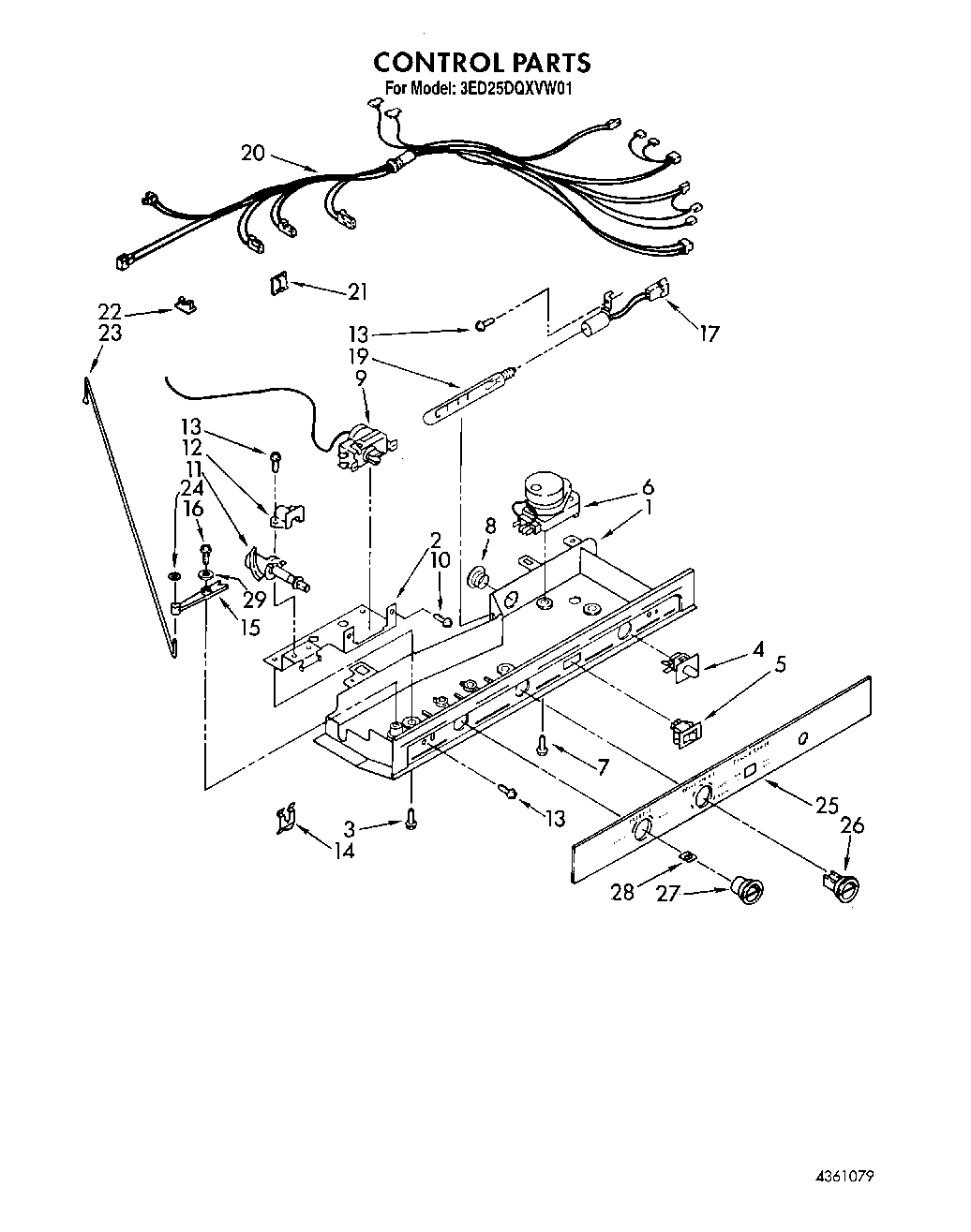

3ED25DQXVW01 13 – CONTROL

Products

PositionProduct
1Control Box
2Mounting Bracket
3Screw (2)
4WP2149705 Whirlpool Refrigerator Door Switch
5WP938213 Whirlpool Refrigerator Power Switch
6Timer, Defrost (10 Hour)
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
11Cam Assembly
121110560 Whirlpool Refrigerator Bearing
13WP965173 Whirlpool Dishwasher Screw
14Retainer, Damper
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
17Light Socket
19WP548049 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
28Knob, Retainer
29489203 Whirlpool Refrigerator Washer
