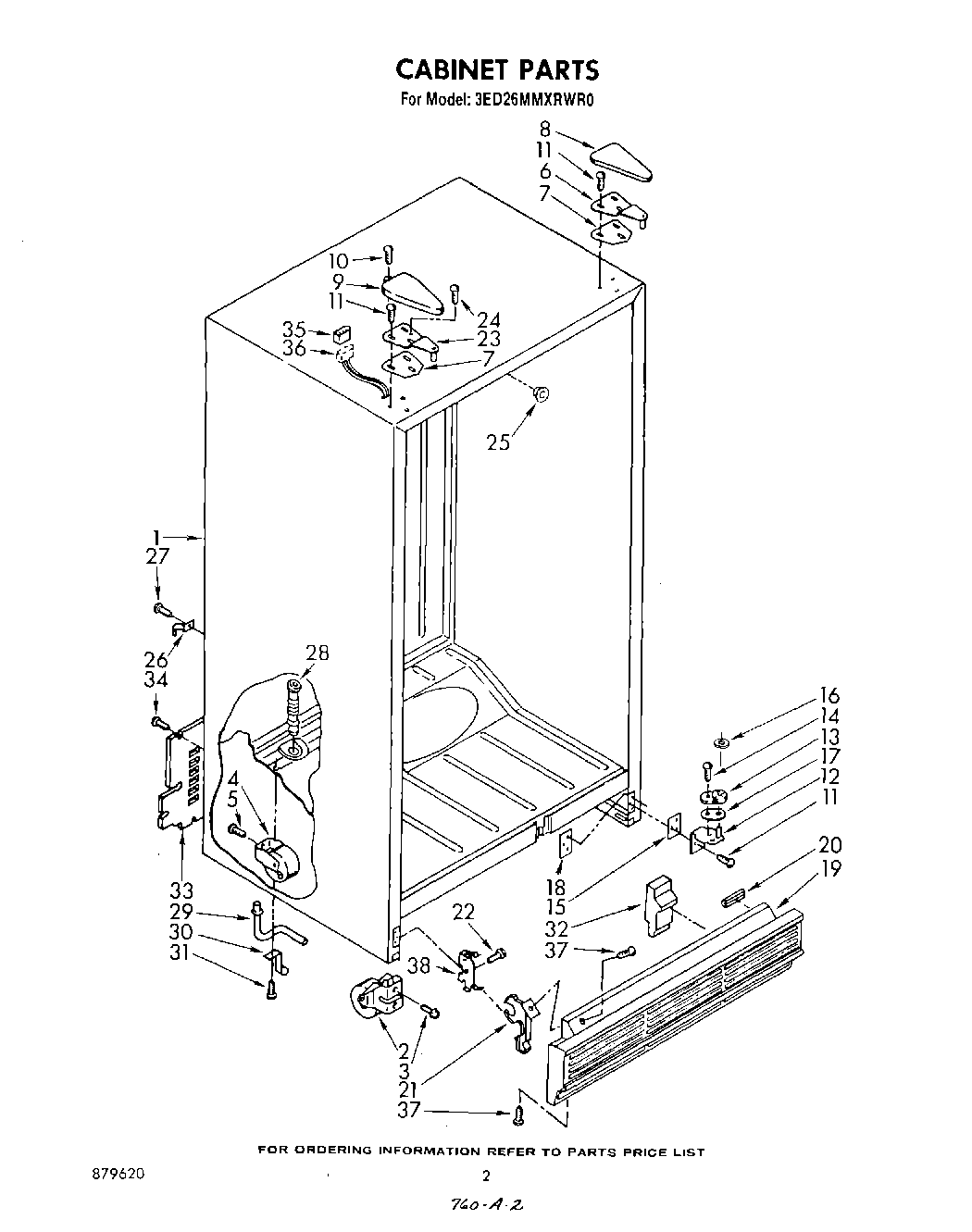

3ED26MMXRWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Hinge (Top)
7	Shim, Hinge Top
8	1119787 Whirlpool Refrigerator Hinge Cover
8	Hinge Cover (Golden Harvest)
8	Hinge Cover (Toast)
9	Hinge Cover (Platinum)
9	Hinge Cover (Toast)
9	Hinge Cover (Golden Harvest)
9	WP1129262 Whirlpool Refrigerator Cover
10	Screw, 6-32 x 1/2
11	Screw (Repair)
11	WP999367 Whirlpool Refrigerator Screw
12	Hinge, Bottom (R.H.)
12	Hinge Bottom (L.H)
13	WPW10329686 Whirlpool Door Cam Black
14	Screw (Repair)
14	WP486579 Whirlpool Air Conditioner Screw
15	Shim, Bottom Hinge
16	WP487802 Whirlpool Refrigerator Washer
17	Shim, Door Closer
18	Tap Plate
19	Exterior, Grille (Almond)
19	Exterior, Grille (White)
19	Exterior, Grille (Platinum)
19	Exterior, Grille (Toast)
19	Exterior, Grille (Golden Harvest)
20	Bumper, Grille
21	WP944224 Whirlpool Refrigerator Support
23	Hinge, Top Freezer
24	WP488234 Whirlpool Air Conditioner Screw
25	Grommet
26	Clamp, Water Line (2)
27	W11624204 Whirlpool Screw
28	Drain Fitting, Liner
29	Extension, Drain Fitting
30	Cup, Drain Extension
31	Screw, 8-15 x 3/8
32	WPL 836372
33	WPL 851174
34	WP488729 Whirlpool Refrigerator Door Screw
35	WPL 851648
36	WPL 482553
37	WPL 489085
38	WPL 989068
