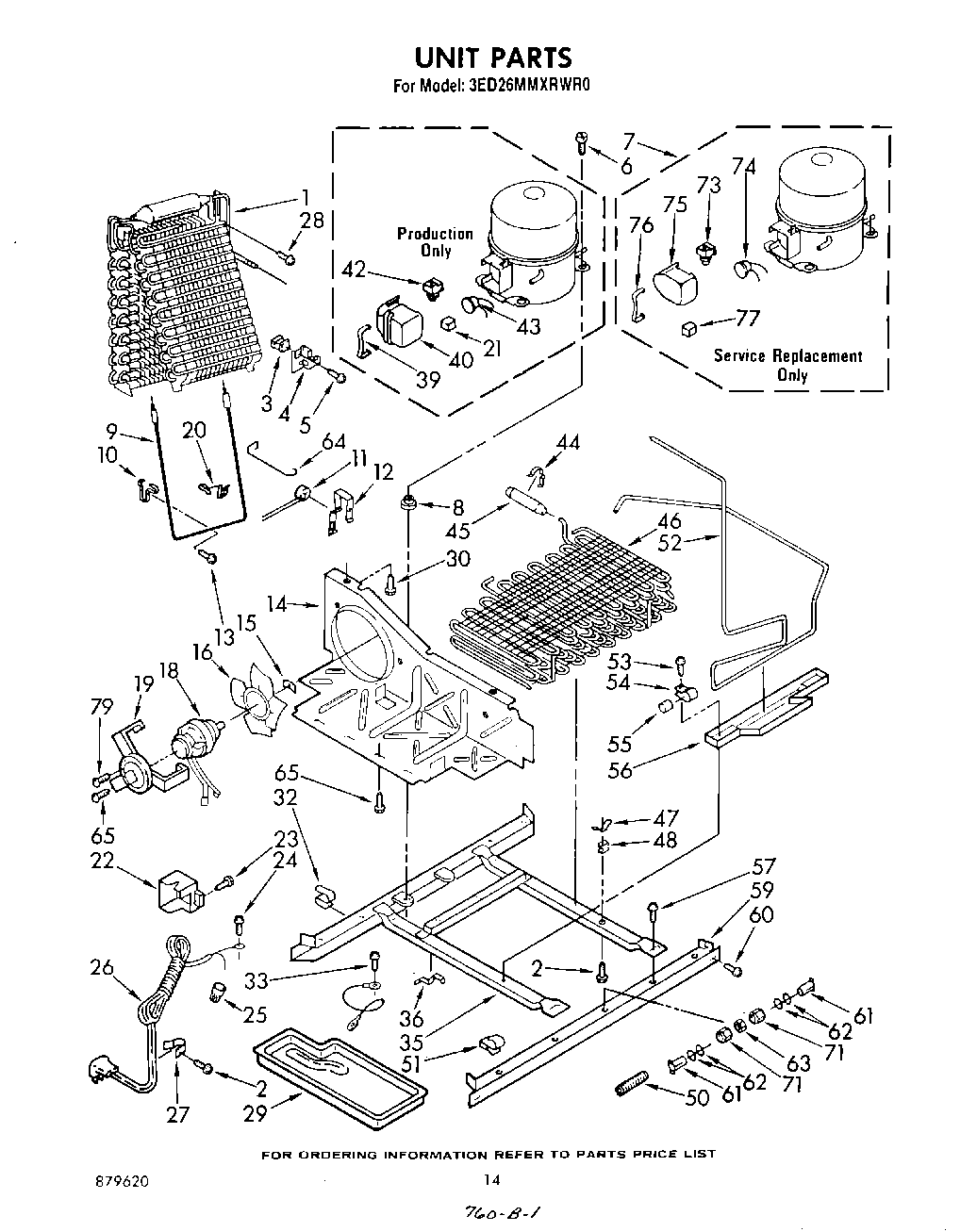

3ED26MMXRWR0 08 – UNIT

Products

Position	Product
1	Evaporator
2	W11624204 Whirlpool Screw
3	Grommet, Screw
4	Support, Evaporator
5	SCREW
6	Screw, 1/4-28 x 1“ (4)
7	Compressor Kit (Includes Items 39, 40, 41, 42 & 43)
8	Grommet (4)
9	Heater, Defrost
10	Clamp, Evaporator
11	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12	Clamp
13	W11693756 Whirlpool Screw Assembly
14	Baffle, Air
15	WP486692 Whirlpool Refrigerator Nut
16	Fan, Blade
18	Motor, Fan
19	Bracket, Motor
20	Heater, Clamp (4)
22	Box, Junction
23	WP488729 Whirlpool Refrigerator Door Screw
24	Screw, 8-32 x 3/8
25	Wire Connector
26	Cord, Service
27	Clamp
28	WP489478 Whirlpool Refrigerator Screw
29	Tray, Evaporator
30	Screw, 8-15 x 3/8
32	Clip, Wire (2)
33	303776 Whirlpool Dishwasher Screw
35	Frame Assembly
36	Clip (2)
42	Relay
44	Clamp
45	W10843121 Whirlpool Refrigerator Tube
46	Condenser & Precooler Assembly
47	Clamp (4)
48	Grommet (4)
50	Spring-Tube
51	Clip, Tube (3)
52	Exchanger, Heat
53	WPW10141625 Whirlpool Refrigerator Screw Assembly
54	Clamp Tube
55	Dampener (2)
56	Pan, Drip
57	Screw, 1/4-28 x 1/2 (2)
59	Rail, Front
60	489340 Whirlpool Refrigerator Screw
61	4387491 Whirlpool Refrigerator Insert
62	“O“ Ring Seal (4)
63	WP4211117 Whirlpool Refrigerator Connector
64	Guard, Fan
65	Screw, 8 x 3/8
71	WP245183 Whirlpool Nut
73	Relay (Alternate)
74	Overload
75	Case, Relay
76	Spring
77	Bumper
79	VALVE, ACCESS (5/8“)
79	876764 Whirlpool Refrigerator Primary Valve
79	VALVE, ACCESS (1/2“)
79	978026 Whirlpool Refrigerator Primary Valve
79	WP978025 Whirlpool Refrigerator Valve
79	978027 Whirlpool Refrigerator Primary Valve
79	978030 Whirlpool Refrigerator Valve
79	681390 Whirlpool Refrigerator Screw
