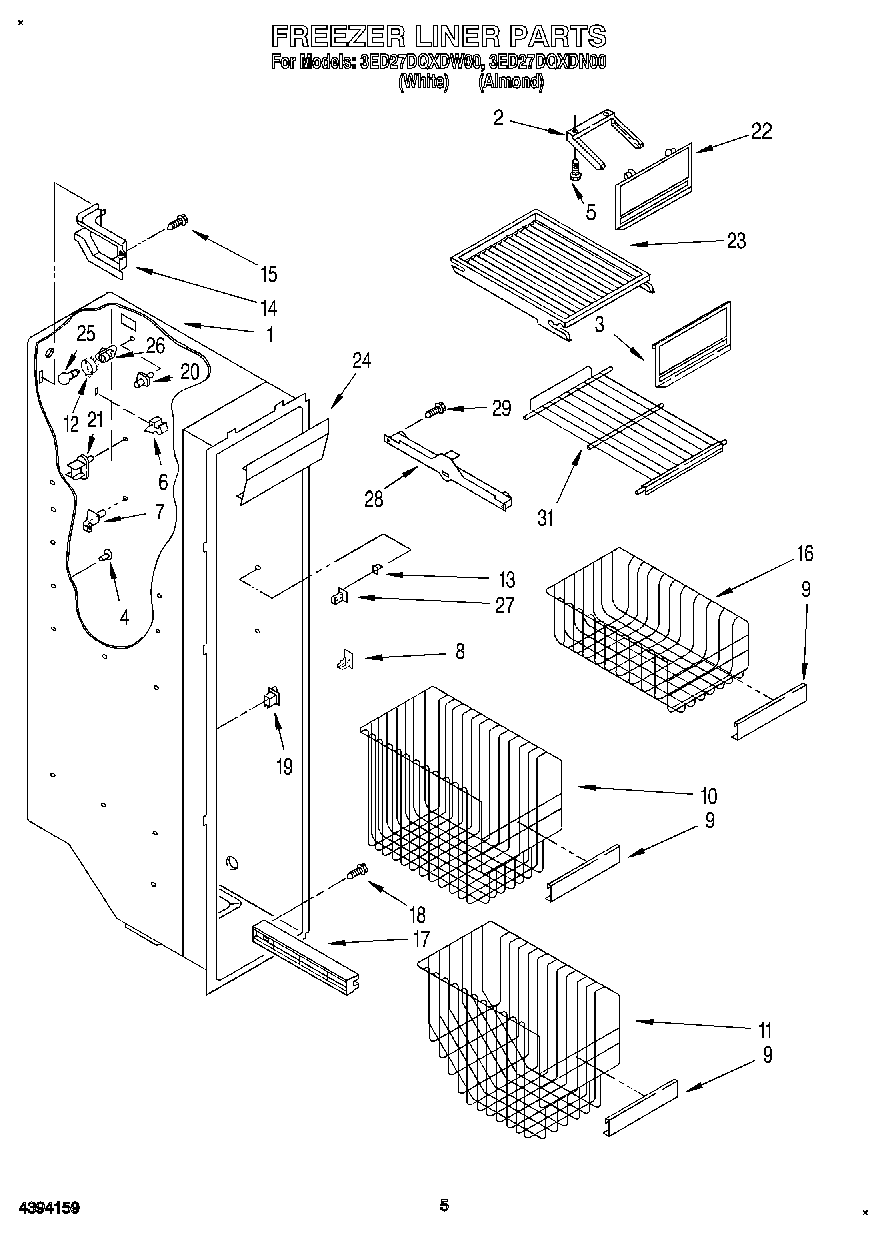

3ED27DQXDW00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	Door, Ice Compartment
4	Grommet
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
9	Trim, Basket
10	Basket, Tall
11	Basket, Slope
12	WP2175210 Whirlpool Refrigerator Shroud
13	Stud, Support
14	Cover, Wiring
15	SCREW
16	Basket
17	Slide, Basket (Left Side (2))
17	Slide, Basket (Right Side (2))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
21	Stud, Shelf (4)
22	WP2171713 Whirlpool Refrigerator Ice Door
23	Shelf, Top Compartment
24	2171705 Whirlpool Refrigerator Light Lens
25	WP67002552 Whirlpool Refrigerator Light Bulb
26	4387478 Whirlpool Refrigerator Light Socket
27	Stud, Rear R.S.
27	Stud, Front R.S.
28	W10845585 Whirlpool Refrigerator Track
28	W10845583 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
31	WP2174267 Whirlpool Refrigerator Wire Shelf
