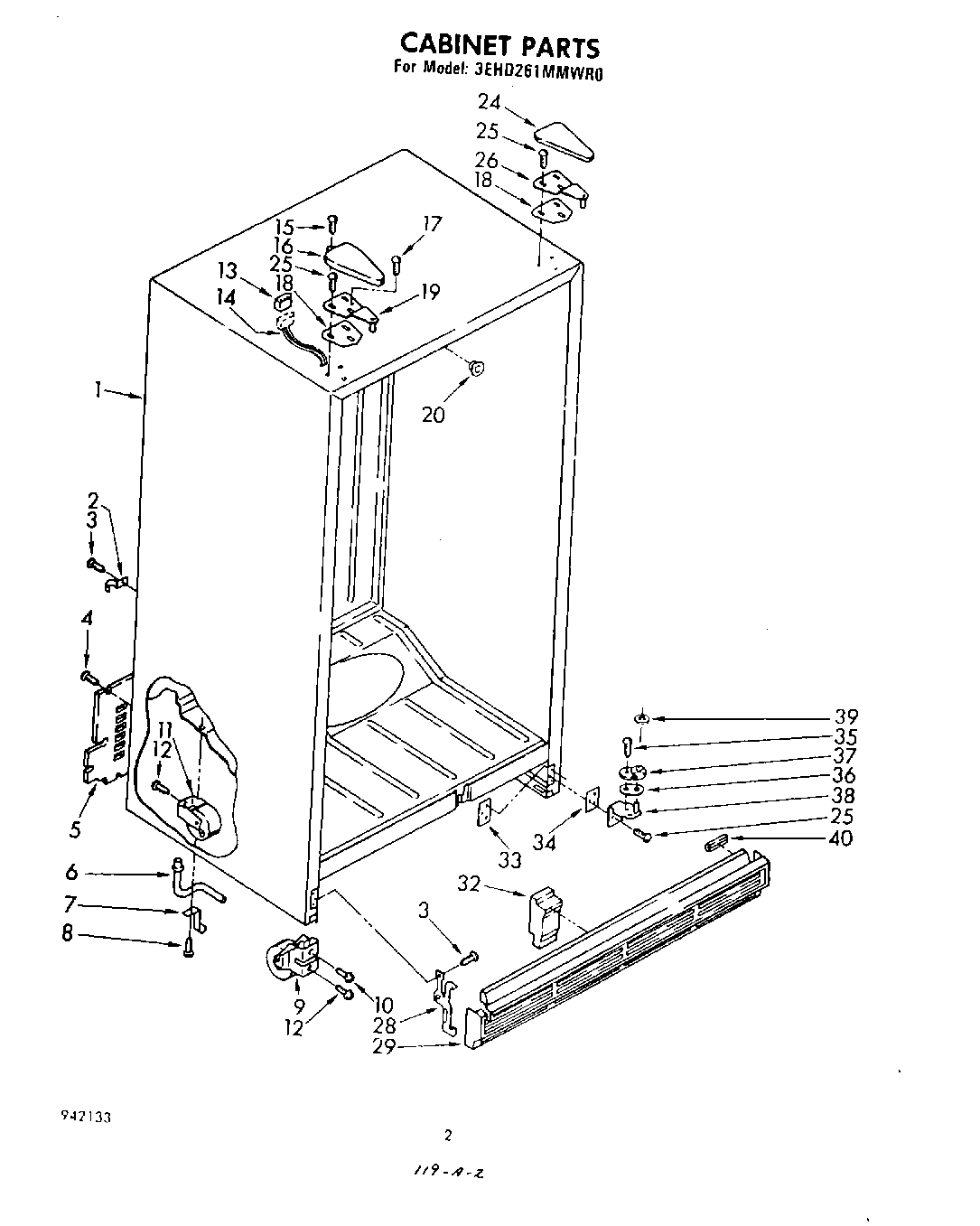

3EHD261MMWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Clamp, Water Line (2)
3	W11624204 Whirlpool Screw
4	WP488729 Whirlpool Refrigerator Door Screw
5	WPL 851174
6	Extension, Drain Fitting
7	Cup, Drain Extension
8	Screw, 8-15 x 3/8
9	Roller, Front
10	Screw, 5/16-24 x 1
11	WPW10250570 Whirlpool Refrigerator Cabinet Roller
12	Screw, 1/4-28 x 1/2 (2)
13	WPL 851648
14	WPL 482553
15	Screw, 6-32 x 1/2
16	Hinge Cover (New Avocado)
16	WP1129262 Whirlpool Refrigerator Cover
16	Hinge Cover (Golden Harvest)
16	Hinge Cover (Coffee)
17	WP488234 Whirlpool Air Conditioner Screw
18	Shim, Hinge Top
19	Hinge, Top Freezer
20	Grommet
24	Hinge, Cover (Coffee)
24	Hinge Cover (New Avocado)
24	1119787 Whirlpool Refrigerator Hinge Cover
24	Hinge Cover (Golden Harvest)
25	Screw (Repair)
25	WP999367 Whirlpool Refrigerator Screw
26	Hinge (Top)
28	WPL 844614
29	Grille (Coffee)
29	Grille (New Avocado)
29	Grille (Golden Harvest)
29	Grille (Almond)
29	Grille (White)
32	WPL 836372
33	Tap Plate
34	Shim, Bottom Hinge
35	WP486579 Whirlpool Air Conditioner Screw
35	Screw (Repair)
36	Shim, Door Closer
37	WPW10329686 Whirlpool Door Cam Black
38	Hinge Bottom (L.H)
38	Hinge, Bottom (R.H.)
39	WP487802 Whirlpool Refrigerator Washer
40	Bumper, Grille
