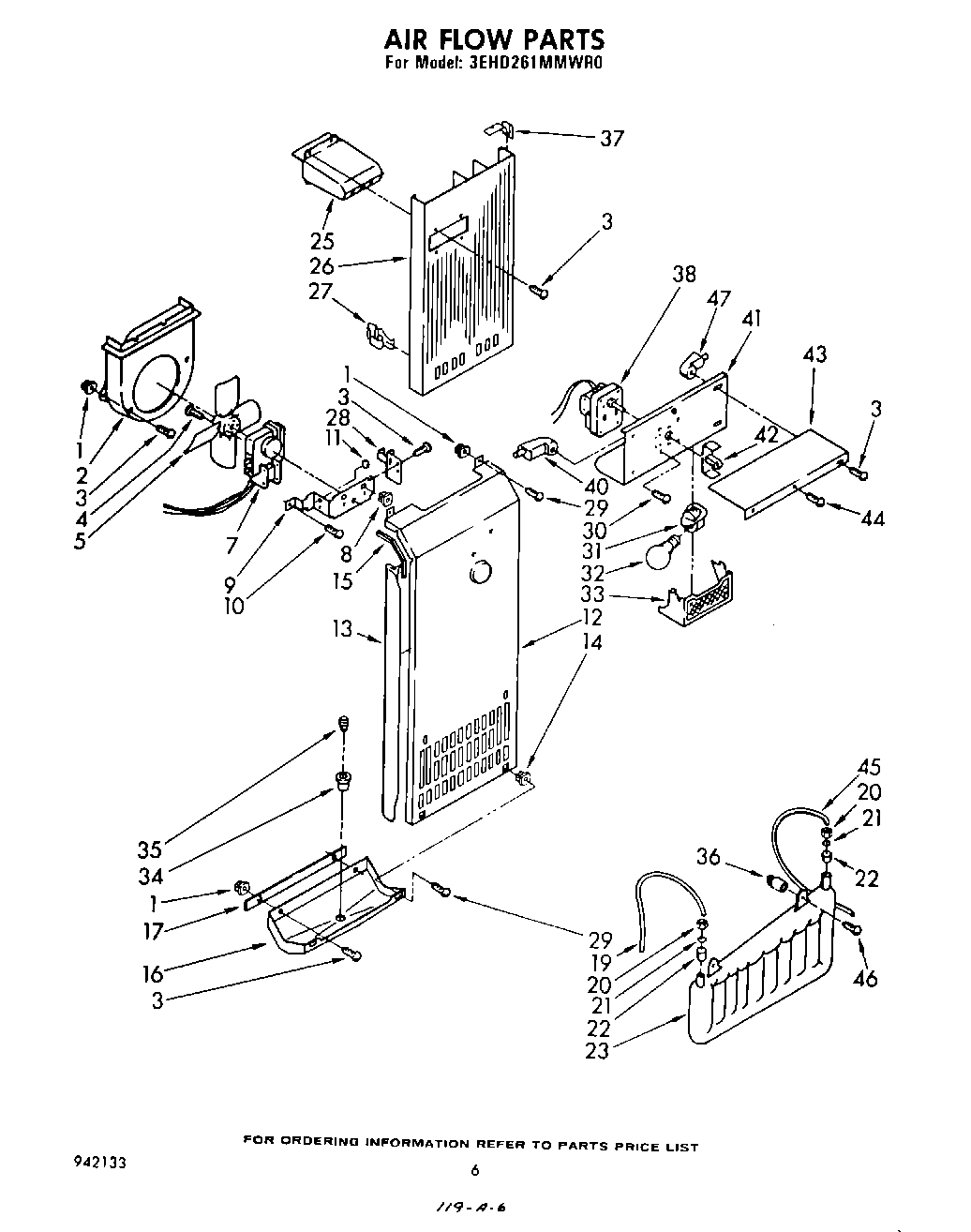

3EHD261MMWR0 04 – AIR FLOW

Products

Position	Product
1	Grommet
2	Scroll Fan
3	W11624204 Whirlpool Screw
4	WP487887 Whirlpool Refrigerator Screw
5	Blade, Fan
7	Motor, Fan
8	Screw Grommet
9	Fan Bracket, Single
10	WP489069 Whirlpool Compactor Screw
11	Grommet (3)
12	Cover, Evaporator
13	Gasket, Evaporator Cover
14	Grommet
15	Gasket, Cover Top
16	Pan, Drain
17	Gasket, Drain Pan
20	Nut, Compression
21	``O`` Ring Seal
22	4387491 Whirlpool Refrigerator Insert
23	WP2256126 Whirlpool Refrigerator Reservoir
25	Air Deflector
26	Duct, Air
27	2215823 Whirlpool Refrigerator Clip
28	Fan, Bracket Double
29	WP488729 Whirlpool Refrigerator Door Screw
30	303776 Whirlpool Dishwasher Screw
31	4387478 Whirlpool Refrigerator Light Socket
32	WP67002552 Whirlpool Refrigerator Light Bulb
33	Lens, Dispenser Light
34	Drain Insert
35	Cap, Drain
36	Grommet
37	Baffle, Air
38	Motor, Dispenser
40	Support, Stud
41	Bracket, Ice Dispenser
42	COUPLING AUGER MOTOR
43	Cover, Ice Dispenser
44	WP489128 Whirlpool Refrigerator Screw
45	W10823511 Whirlpool Refrigerator Water Tube
46	Screw, 8 x 1-1/2
47	Support, Stud
