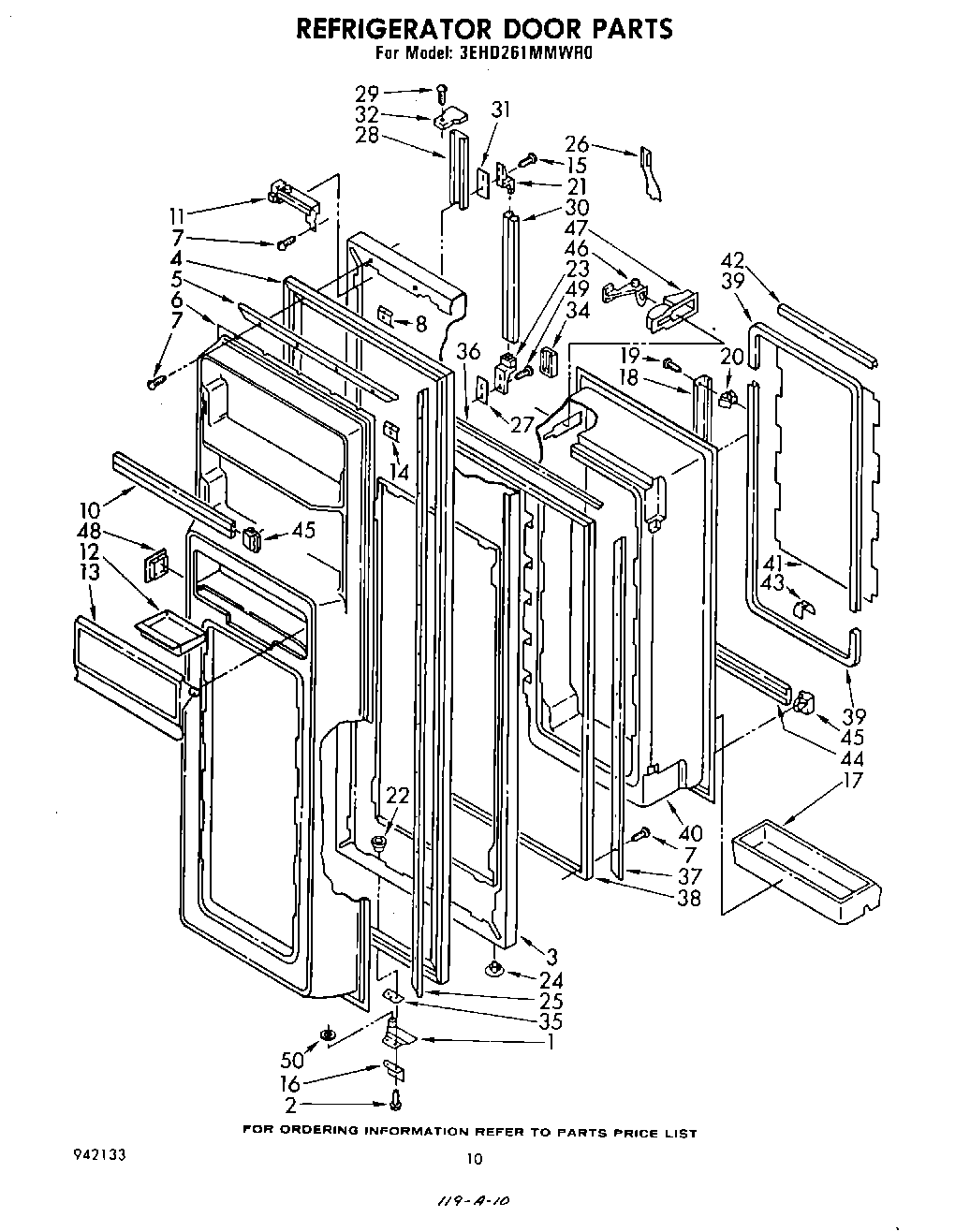

3EHD261MMWR0 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Hinge, Bottom
2	WP250830 Whirlpool Refrigerator Screw
3	Exterior Door Panel (White)
3	Exterior Door Panel (Coffee)
3	Exterior Door Panel (Golden Harvest)
3	Exterior Door Panel (Almond)
3	Exterior Door Panel (New Avocado)
4	Door Gasket, Magnetic (For Platinum Model Only)
5	Retainer, Top & Bottom
6	Panel, Interior
7	W11624204 Whirlpool Screw
7	SCREW
8	Screw Anchor (2)
10	WPL 988746
11	WPL 840847
13	WPL 935352
14	WP939101 Whirlpool Refrigerator Plate
16	Bracket, Door Stop
17	Shelf, Cantilever (3)
18	Shelf Ladder
20	Expansion Clip
21	Center End Cap, Handle
22	Cap, Hinge Sleeve (2)
23	Handle End,
24	Hole Plug (2)
25	Retainer, Gasket Side
26	Insert, Handle
27	Shim, Handle
28	Retainer Insert
29	Screw
30	Handle, Center (New Avocado)
30	Handle, Center (White, Coffee & Almond)
30	Handle, Center (Golden Harvest)
31	Shim
32	End Cap
34	Cover, End Cap
35	Shim, Bottom Hinge
36	Reinforcement Strip, Top & Bottom (2)
37	Reinforcement Strip, Side
38	Gasket, Seal
39	WPL 986453
40	Panel, Interior Storage
41	Panel, Decorative
42	Trim, Decorative
43	Cap Trim Joint
44	WPL 986448
45	WP839904 Whirlpool Refrigerator Endcap Trim
46	WPL 935111
47	WPL 935109
48	WPL 935112
49	WP488729 Whirlpool Refrigerator Door Screw
50	Washer
