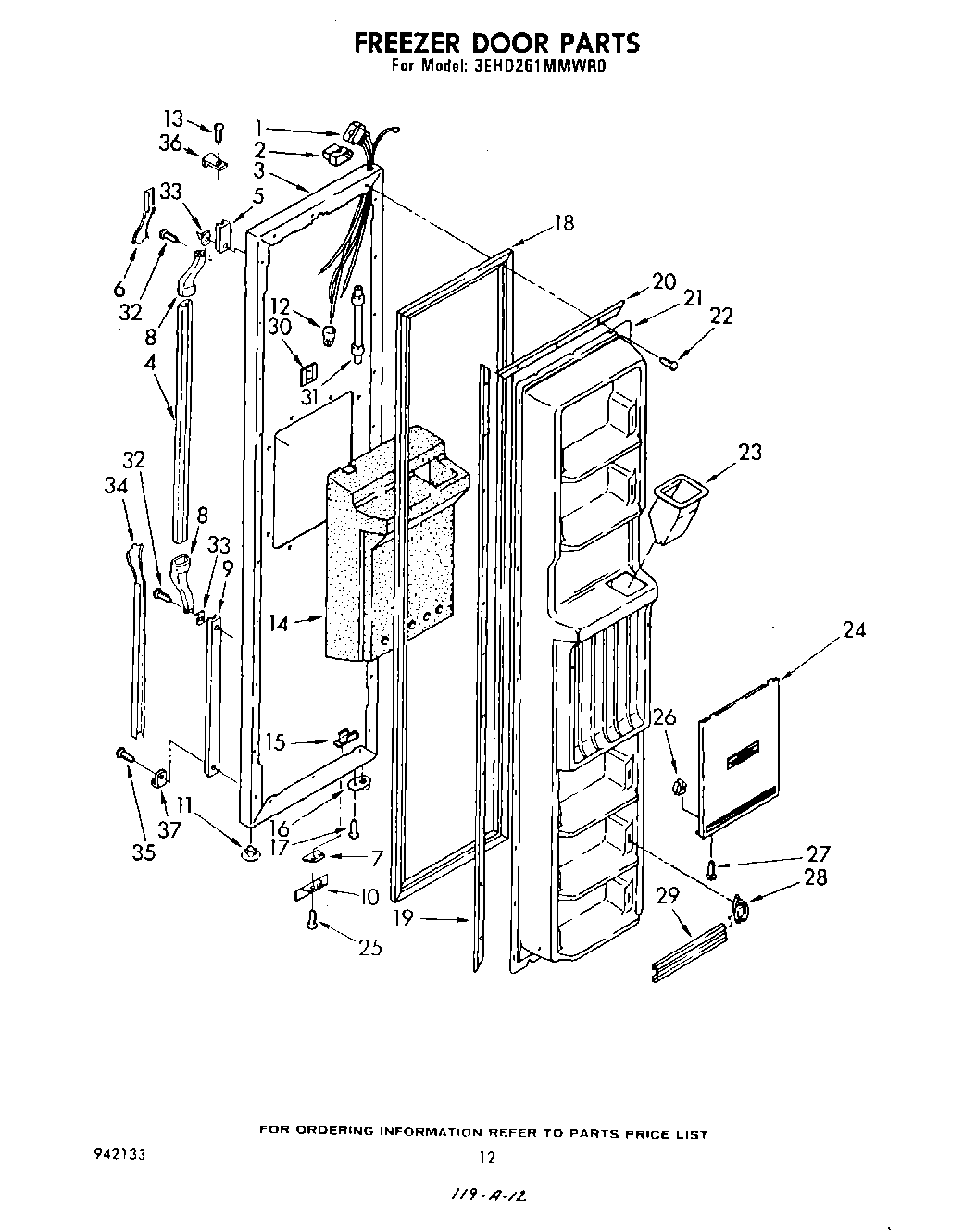

3EHD261MMWR0 07 – FREEZER DOOR

Products

Position	Product
1	Plug, Crossover
2	Connector, Plug
3	Exterior Door Panel Freezer (White)
3	Exterior Door Panel Freezer (Golden Harvest)
3	Exterior Door Panel Freezer (Almond)
3	Exterior Door Panel Freezer (Coffee)
3	Exterior Door Panel Freezer (New Avocado)
4	Handle, Center (White, Coffee & Almond)
4	Handle, Center (Golden Harvest)
4	Handle, Center (New Avocado)
5	Retainer Insert
6	Insert, Handle
7	Shim
8	Center End Cap, Handle
9	Retainer, Insert
10	Bracket, Door Stop
11	Hole Plug (2)
12	Wire Connector
13	Screw
14	Insulation, Dispenser
15	Tap Plate
16	4318165 Whirlpool Refrigerator Door Closure Cam Kit
17	WP489069 Whirlpool Compactor Screw
18	Door Gasket, Magnetic (For Platinum Model Only)
19	Retainer, Gasket Side
20	Retainer, Gasket Top & Bottom
21	Panel, Interior
22	W11624204 Whirlpool Screw
22	SCREW
23	Chute, Ice
24	Overlay, Ice Dispenser
25	Screw, 89 x 5/8
26	Expansion Clip
28	WP839904 Whirlpool Refrigerator Endcap Trim
29	WPL 935969
30	Screw Anchor (2)
31	Tube, Door Wiring
32	WP488729 Whirlpool Refrigerator Door Screw
33	Shim
34	Insert, Handle
35	Screw, 6-32 x 1/2
36	End Cap
37	End Cap, Retainer
