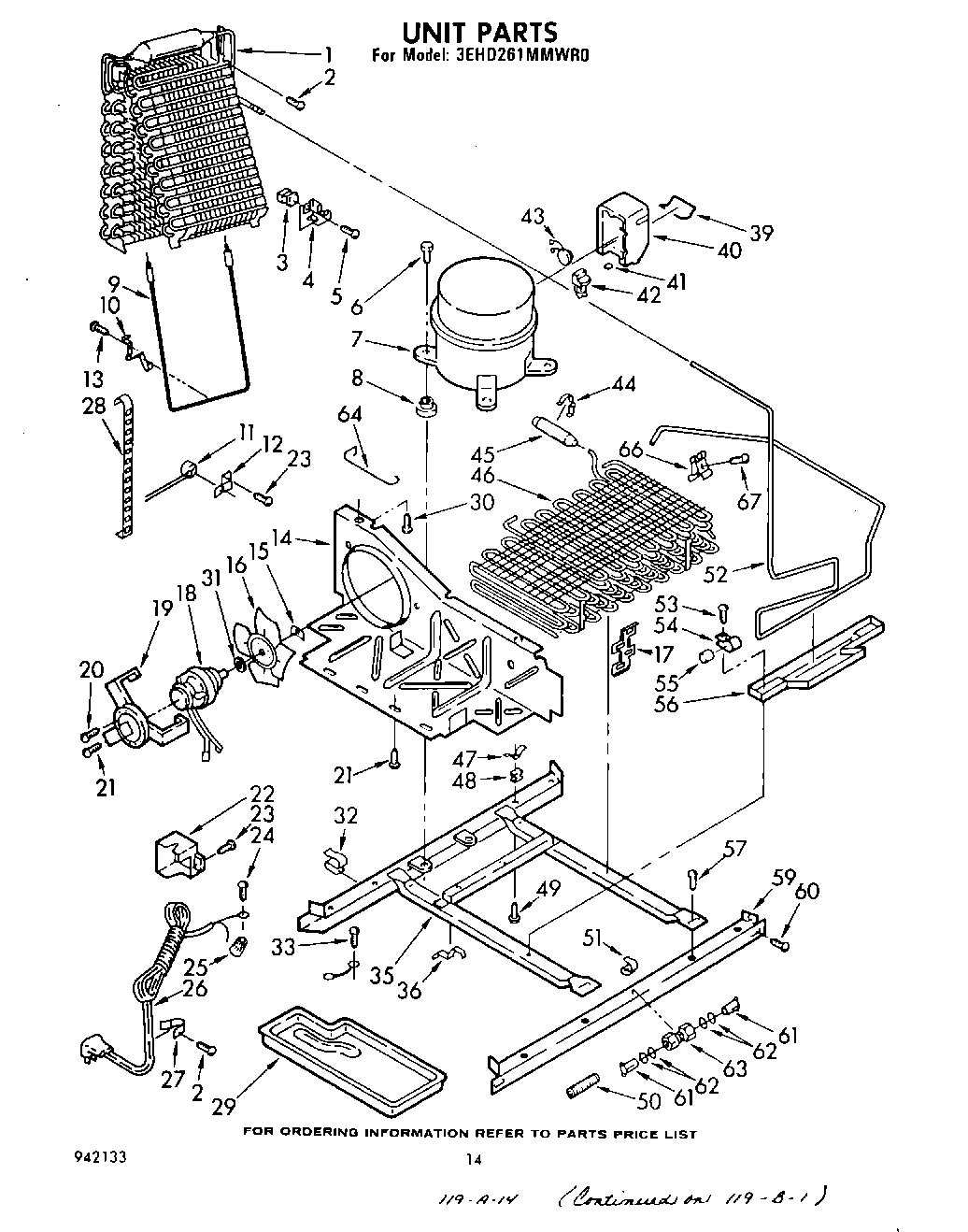

3EHD261MMWR0 09 – UNIT

Products

Position	Product
1	Evaporator
2	W11624204 Whirlpool Screw
3	Grommet, Screw (2)
4	Support, Evaporator
5	SCREW
6	Screw, 1/4-28 x 1“ (4)
7	Compressor
8	Grommet (4)
9	Heater, Defrost
10	Clamp, Evaporator
11	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
12	Clamp
13	W11693756 Whirlpool Screw Assembly
14	Baffle, Air
15	WP486692 Whirlpool Refrigerator Nut
16	Fan, Blade
17	Spacer Condenser (4)
18	Motor, Fan
19	Bracket, Motor
20	Screw, 8-36 x 3/8 (3)
21	Screw, 8 x 3/8
22	Box, Junction
23	WP488729 Whirlpool Refrigerator Door Screw
24	WP489128 Whirlpool Refrigerator Screw
25	Wire Connector
26	Cord, Service
27	Clamp
28	Shield, Evaporator (4)
29	Tray, Evaporator
30	Screw, 8-15 x 3/8
31	WASHER
32	Clip, Wire (2)
33	303776 Whirlpool Dishwasher Screw
35	Frame Assembly
36	Clip (2)
39	Spring
40	Case, Relay
41	Bumper
42	Relay
43	Overload
44	Clamp
45	W10843121 Whirlpool Refrigerator Tube
46	Condenser & Precooler Assembly
47	Clamp (4)
48	Grommet (4)
50	Spring-Tube
51	Clip, Tube (3)
52	Exchanger, Heat
53	WPW10141625 Whirlpool Refrigerator Screw Assembly
54	Clamp Tube
55	Dampener (2)
56	Pan, Drip
57	Screw, 1/4-28 x 1/2 (2)
59	Rail, Front
60	489340 Whirlpool Refrigerator Screw
61	4387491 Whirlpool Refrigerator Insert
62	“O“ Ring Seal (4)
63	WP2198677 Whirlpool Refrigerator Connector
64	Guard, Fan
66	Clip, Tube (4)
67	978027 Whirlpool Refrigerator Primary Valve
67	978030 Whirlpool Refrigerator Valve
67	WP978025 Whirlpool Refrigerator Valve
67	VALVE, ACCESS (1/2“)
67	978026 Whirlpool Refrigerator Primary Valve
67	WP488787 Whirlpool Refrigerator Screw
67	VALVE, ACCESS (5/8“)
