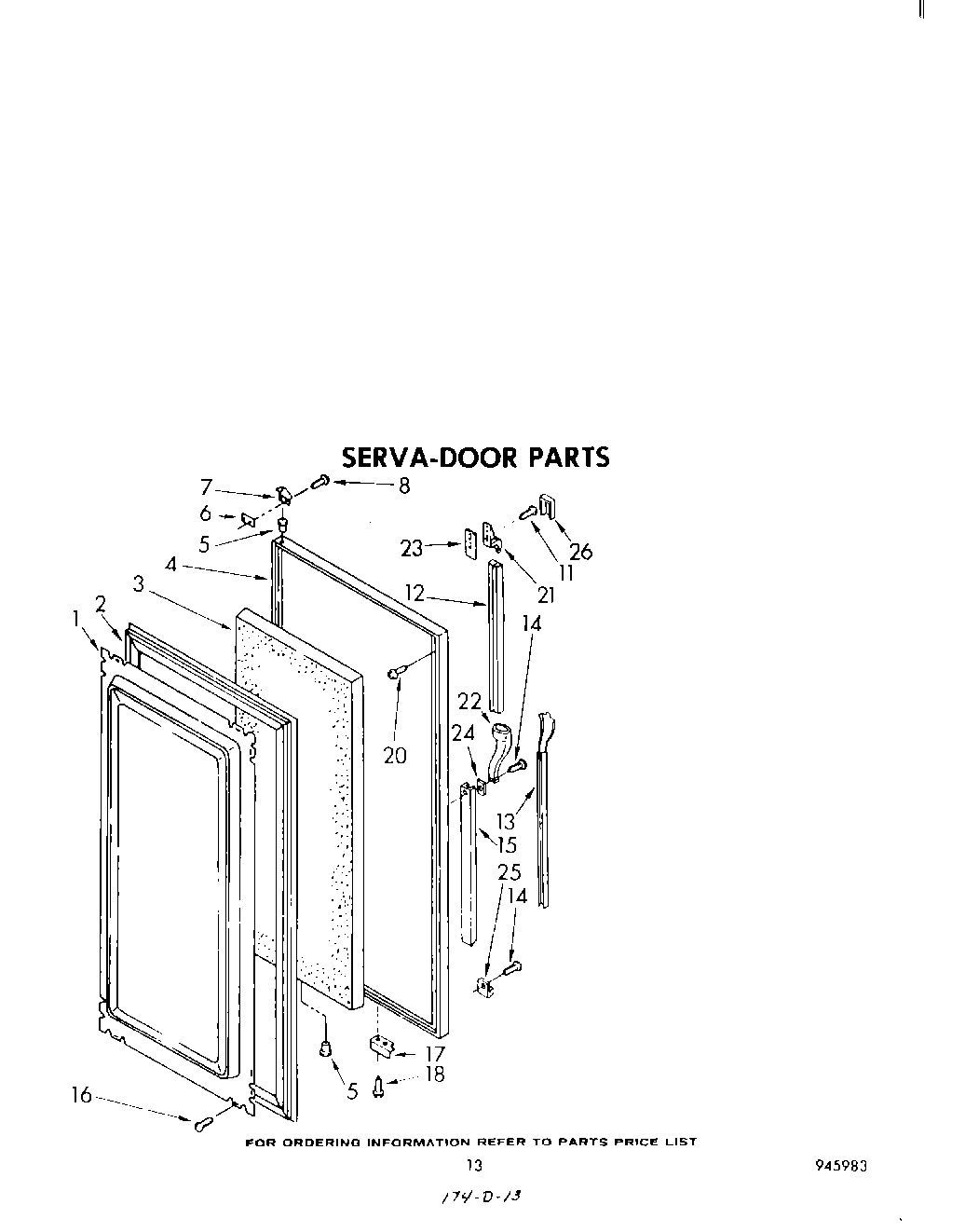

3EHD261MMWR1 08 – SERVA-DOOR

Products

Position	Product
1	Interior Panel (Servadoor)
2	Gasket, Serva-Door
3	Insulation, Servadoor
4	Panel, Servadoor (Golden Harvest)
4	Panel, Servadoor (White)
4	Panel, Servadoor (Coffee)
4	Panel, Servadoor (Almond)
4	Panel, Servadoor (New Avocado)
5	Sleeve, Hinge Pivot
6	Shim, Hinge Top
7	Hinge, Top
8	Screw (Repair)
11	Screw, 8-32 x 7/16
12	Handle, Center (Golden Harvest)
12	Handle, Center (White, Coffee)
12	Handle, Center (Almond)
12	Handle, Center (New Avocado)
13	Insert, Handle
14	WPL 488844
15	Retainer, Insert
16	WP488729 Whirlpool Refrigerator Door Screw
17	Bracket, Door Stop
18	Screw, 8 x 7/16
18	Screw (Repair)
20	W11624204 Whirlpool Screw
21	Handle End,
22	Center End Cap, Handle
23	Shim, Handle
24	Shim
25	End Cap, Retainer
26	Cover, End Cap
