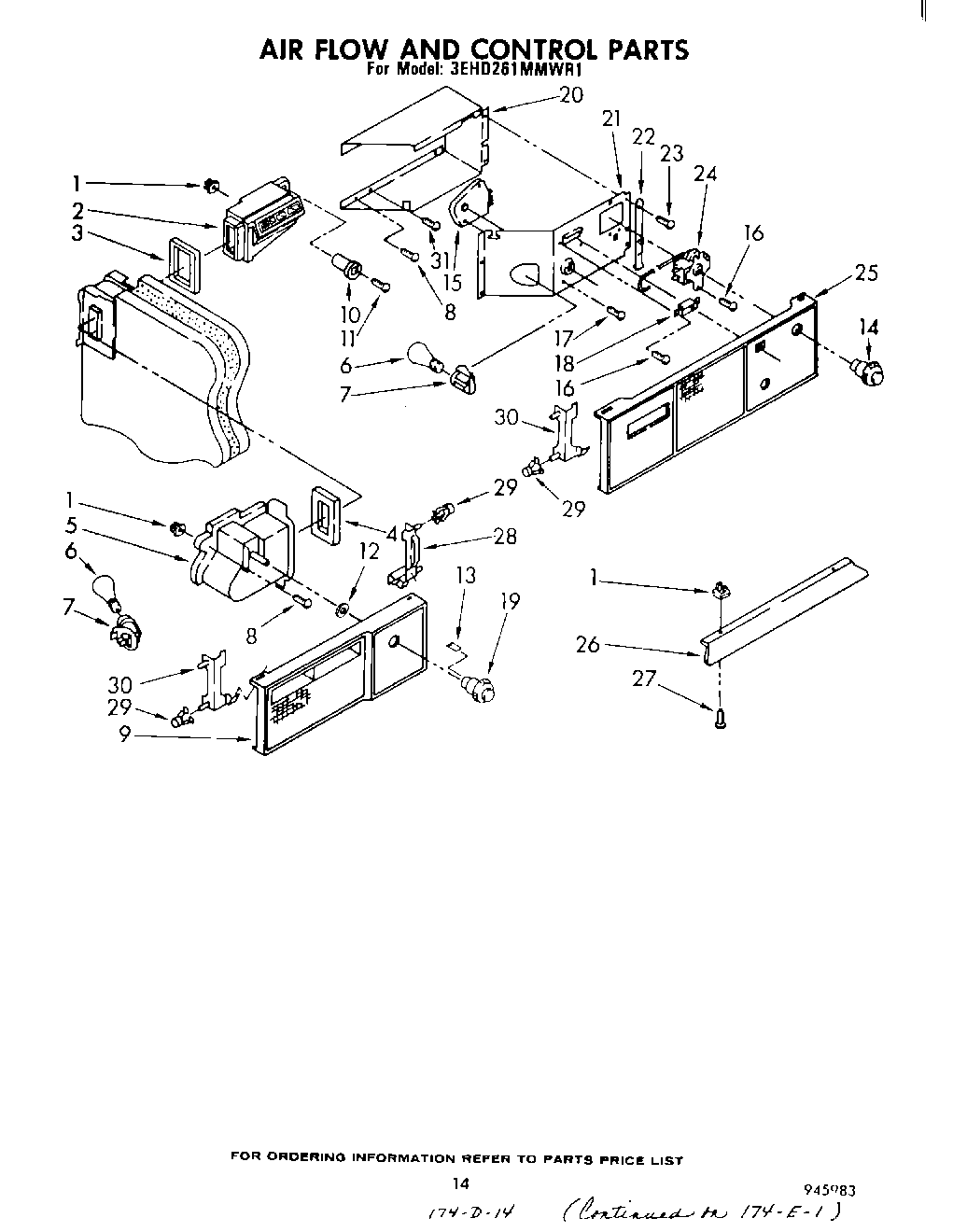

3EHD261MMWR1 09 – AIRFLOW AND CONTROL

Products

PositionProduct
1Grommet
2Air Diffuser
3Gasket, Air Diffuser
4Gasket, Air Scoop
5Air Scoop Assembly
6WP67002552 Whirlpool Refrigerator Light Bulb
74387478 Whirlpool Refrigerator Light Socket
9Light Lens, Freezer
10836667 Whirlpool Refrigerator Spacer
11Screw, 8 x 1-1/4 (3)
12Retainer, Damper
13Knob, Retainer
14Knob, Temperature Control
15DEFROST, TIMER (8 HR.)
16WP489128 Whirlpool Refrigerator Screw
17WP3388228 Whirlpool Screw
18WP938213 Whirlpool Refrigerator Power Switch
19Control Knob
20Box, Control
21Control Box Front
22Support, Light Lens
23W11624204 Whirlpool Screw
24WP819470 Whirlpool Refrigerator Thermostat
25Light Lens
26Baffle, Liner Top
27WP489069 Whirlpool Compactor Screw
28Support, Light Lens (R.S.)
29Clip, Tubular
30Support, Light Lens (L.S.)
31Screw, 8-32 x 3/8
