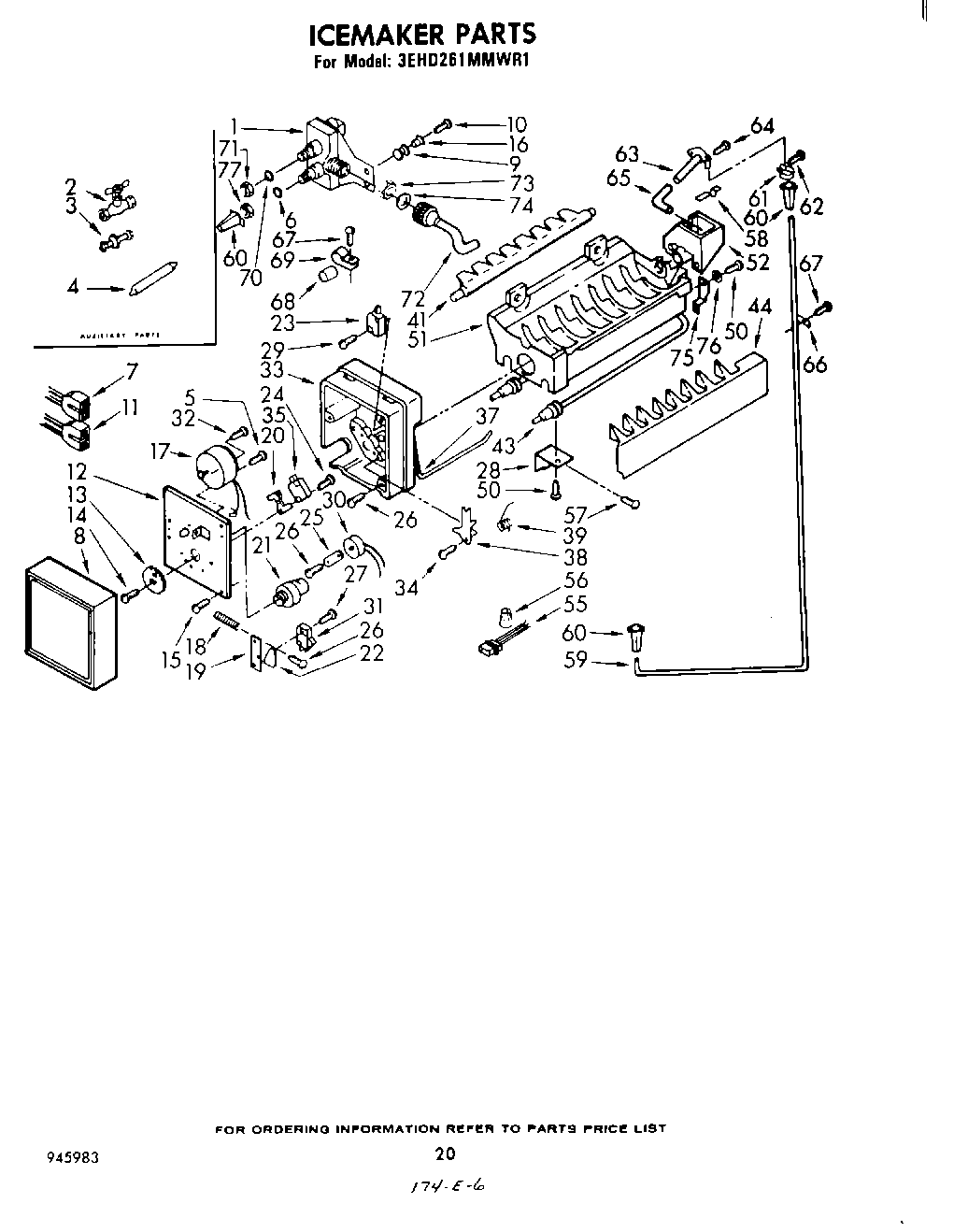

3EHD261MMWR1 13 – ICEMAKER , NOT ILLUSTRATED AND OPTIONAL

3EHD261MMWR1 13 – ICEMAKER , NOT ILLUSTRATED AND OPTIONAL

Written by

in

3EHD261MMWR1 13 – ICEMAKER , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
Leveler (Thinner)
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
350956 Whirlpool Spray Assembly
1Valve, Solenoid
2Valve, Shut-Off
3Union, 1/4“ x 3/16“
4Filter Kit
6“O“ Ring Seal
7WPL 548734
8Cover
9Grommet (2)
10W11693756 Whirlpool Screw Assembly
11Wiring, Dispensing Valve
12Plate, Mounting
13Gear
14Screw
15WP488787 Whirlpool Refrigerator Screw
16Spacer (2)
17Motor
18Spring
19Plate, Valve
20Spacer, Switch (2)
21Cam
22Insulator
23Switch, S.P.D.T. (2)
24Screw, 4-40 x 1
25Clamp, Thermostat
26Screw, 8-32 x 1
27Screw
28WP2256087 Whirlpool Refrigerator Bracket
29Screw, 4-24 x 3/4
30Thermostat (Alternate)
30Thermostat
31Switch, S.P.S.T.
32Screw, Ground
33Support
34Screw, Shoulder
35Switch, S.P.D.T.
37Arm, Shut-Off
38Lever, Arm
39Spring, Shut-Off Arm
41WP627843 Whirlpool Refrigerator Ejector Arm
43Heater, Mold
44Stripper, Ice
50Screw, 8-16 x 3/8
51Mold & Heater Assembly (Includes Illus. 43)
52Bearing & Inlet
55Wire Harness
56Wire Connector
57SCREW
58Clip
59W10823511 Whirlpool Refrigerator Water Tube
604387491 Whirlpool Refrigerator Insert
61WP488878 Whirlpool Refrigerator Tube Clamp
62WP965173 Whirlpool Dishwasher Screw
63WP2196157 Whirlpool Fill Tube
64WP98165 Whirlpool Screw
65Tube, Water Inlet
66Clamp, Water Line (2)
67W11624204 Whirlpool Screw
68WP2158826 Whirlpool Refrigerator Dampener
69Clamp Tube
70“O“ Ring Seal (4)
71WP627018 Whirlpool Refrigerator Nut
72Tube, Inlet
73Nut, Valve
74WP16123 Whirlpool Washer
75Bracket, Shut-Off Arm
76F
7772032 Whirlpool Touch Up Paint Black
77212643 Whirlpool Refrigerator Permagum Sealer
77511873 Whirlpool Refrigerator Paint
77606755 Whirlpool Refrigerator Bag
77Golden Harvest (Uncut)
77833938 Whirlpool Refrigerator Terminal
77Clamp, Hose
7772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
77Almond (Uncut)
77WP72107 Whirlpool Touchup
77799344 Whirlpool Refrigerator Paint
7772017 Whirlpool Appliance Touch-Up Paint White
77WPL 941651
77WPL 942131
77876370 Whirlpool Refrigerator Insulation
77WP503695 Whirlpool Refrigerator Sealer
77Nut, Compression
77Enamel, New Avocado (1 Qt. Uncut)
77Enamel, Coffee (1 Qt. Uncut)
77Paint, Touch-Up 1/2 Oz. (Coffee)
7772109 Whirlpool Dacor Avocado Touch-Up Paint
77WPL 876029
77WPL 799833
77WPL 799351
77WPL 799832
77Enamel, Black (1 Qt. Uncut)
77CEMENT, ALUMILASTIC (1 1/4 OZ.)
77TAPE, VINYL (3/4 X 108“)
77WP542638 Whirlpool Refrigerator Grease
77WP505587 Whirlpool Refrigerator Sealer
77WPL 945983
