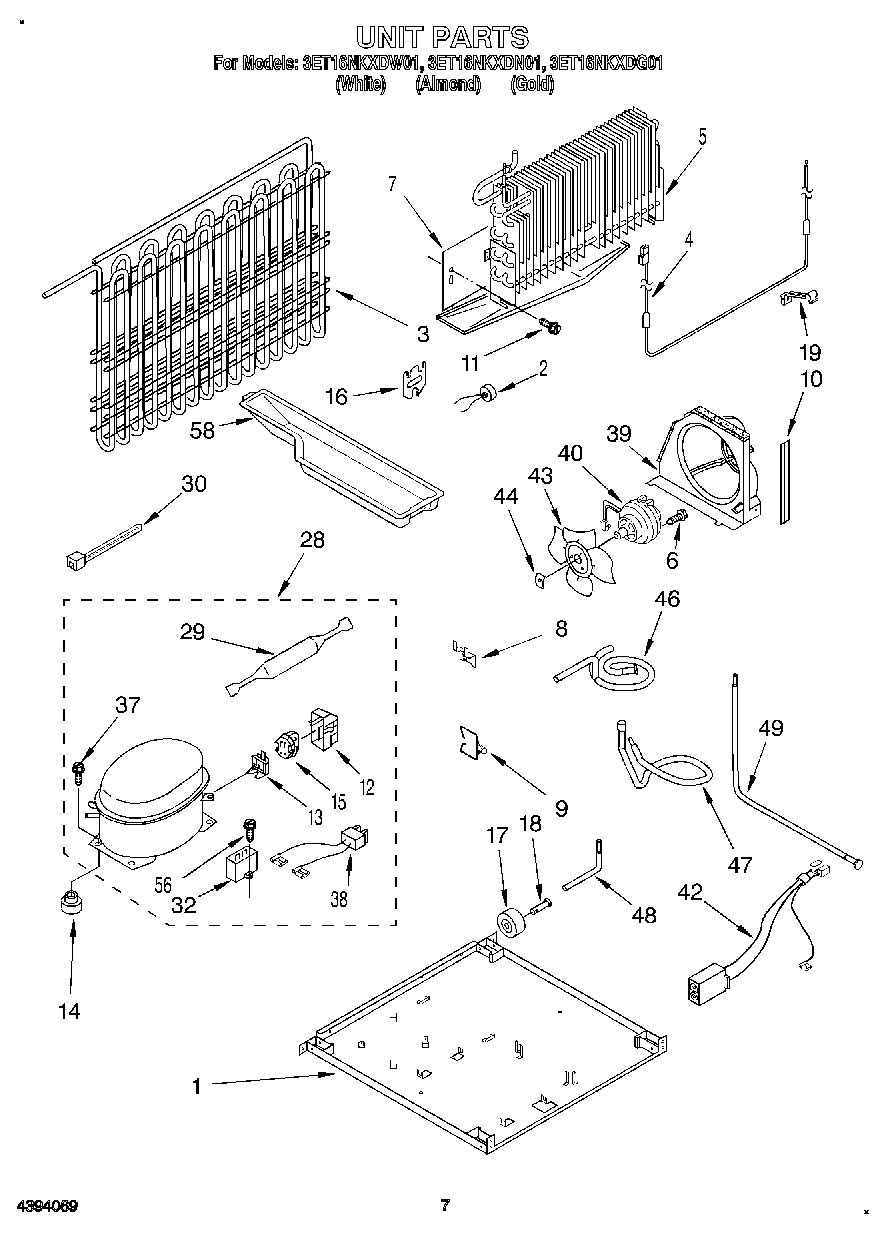

3ET16NKXDG01 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP2182381 Whirlpool Refrigerator Bimetallic Defrost
3Condenser
4Heater, Defrost
5Evaporator Assy.
6Screw
7Drain Pan
8Clip, Capacitator
9Clip, Wire
10Extension, Air Baffle
11WP489478 Whirlpool Refrigerator Screw
12WP2162358 Whirlpool Refrigerator Terminal Cover
132169410 Whirlpool Refrigerator Overload
14W11661108 Whirlpool Grommet
14876811 Whirlpool Grommet
15WP2262184 Whirlpool Refrigerator Start Relay
16Bracket, Heater
17Roller (2)
18W11594405 Whirlpool Axle
19Clip, Heater
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Compressor (Includes Items 11, 12, 13, 14, 15, 21, 29, 32, 38 And 56) (Also Order)
28Installation Kit
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WP2201147 Whirlpool Refrigerator Capacitor
37SCREW
38WP2172890 Whirlpool Refrigerator Wire
39Baffle, Air
408201703 Whirlpool Refrigerator Condenser Motor
42Wire Assy. Unit
43Fan, Blade
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56W11693756 Whirlpool Screw Assembly
58Evap. Tray
58VALVE, ACCESS (5/8“)
58Start Kit
58978027 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58978026 Whirlpool Refrigerator Primary Valve
58WP978025 Whirlpool Refrigerator Valve
58978030 Whirlpool Refrigerator Valve
