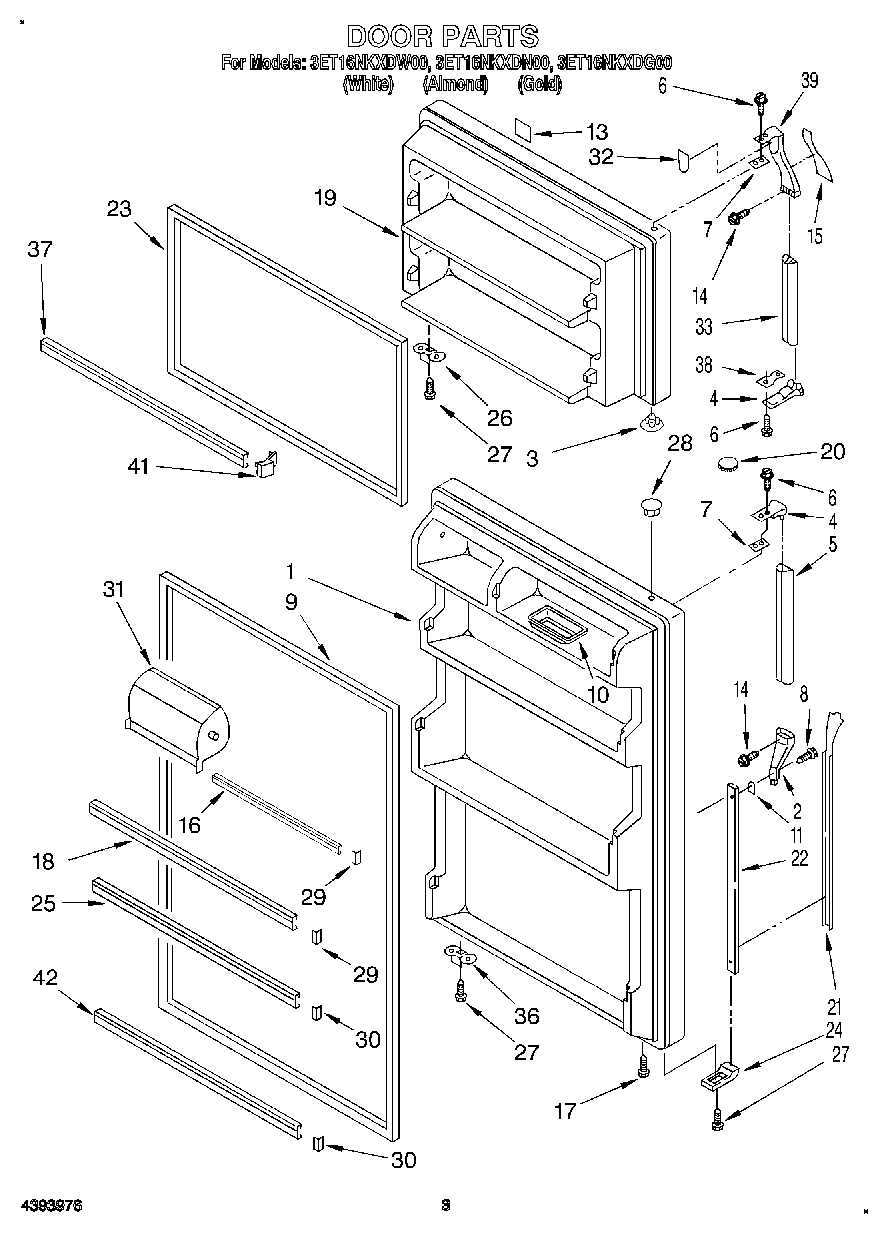

3ET16NKXDN00 02 – DOOR

3ET16NKXDN00 02 – DOOR

Written by

in

3ET16NKXDN00 02 – DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 9) (Gold)
1	Refrigerator Door (Includes No.8) (White)
1	Refrigerator Door (Includes No.8) (Almond)
2	Handle End, Side
3	Hole Plug (2) (Golden Harvest)
3	Hole Plug (2)
3	Hole Plug (2) (Almond)
4	Handle End
5	Handle, Center
5	Handle Center (Almond)
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	Butter, Tray
11	Shim
13	Nameplate (Almond)
13	Nameplate (White)
14	Screw
15	Insert, Handle (For Platinum Model Only)
15	Insert, Handle
15	Insert, Handle (Almond)
16	Trim, Door Shelf
17	WP8281206 Whirlpool Refrigerator Screw
18	TRIM-DOOR
19	Freezer Door (Includes Item 23) (Almond)
19	Freezer Door (Includes Item 23) (White)
19	Freezer Door (Includes Item 23) (Gold)
20	Hole Plug, Handle (White)
20	Hole Plug, Handle (Almond)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	Insert, Handle (White)
21	Insert, Handle (Almond)
21	Insert, Handle (Black)
22	Retainer
23	Door Gasket, Magnetic (Service) (Chocolate)
23	Door Gasket, Magnetic (Service) (Mist Beige)
24	WPL 1105804
25	Trim, Door Shelf
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
32	Shim, EndCap (Top)
33	WPL 2166437
33	WPL 2159415
33	WPL 2166786
36	Bracket, Door Stop
36	W11745278 Whirlpool Bracket
38	Shim, Handle
39	Handle End, Top
41	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42	Trim, Door
