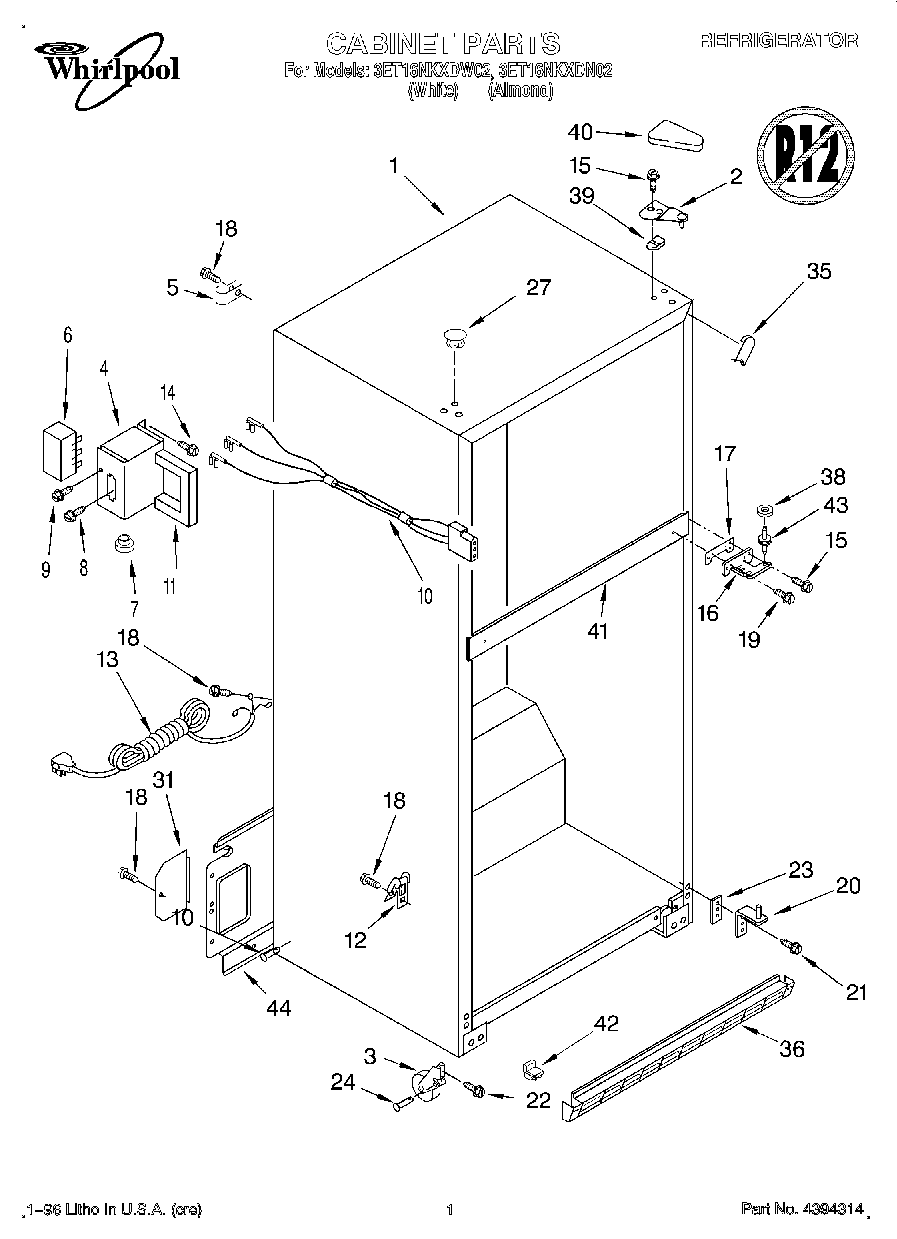

3ET16NKXDN02 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2189412 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Enclosure, Term.
5	WP488366 Whirlpool Refrigerator Clamp
6	Terminal Block
7	Bushing
8	WPW10272364 Whirlpool Refrigerator Screw
9	Screw
10	Wire Assembly, Terminal Box
11	Gasket
12	489348 Whirlpool Refrigerator Tube Clamp
13	Service Cord
14	WP250830 Whirlpool Refrigerator Screw
15	WP999367 Whirlpool Refrigerator Screw
17	Shim, Hinge Center
18	WP489463 Whirlpool Refrigerator Screw
19	Screw
20	Hinge, Butt
21	Screw
22	Screw
23	Shim, Bottom Hinge
24	W11594405 Whirlpool Axle
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Almond)
31	Cover, Water Valve
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille (Almond)
36	Grille
38	WP487576 Whirlpool Washer
39	Shim, Hinge Top
40	Cover, Hinge (Almond)
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
42	Corner Filler, Grille (White)
42	Corner Filler, Grille (Almond)
43	WP2254618 Whirlpool Center Door Hinge
44	Cover, Unit
