3ET18DKXAN00 04 – SHELF, LIT/OPTIONAL

3ET18DKXAN00 04 – SHELF, LIT/OPTIONAL

Written by

in

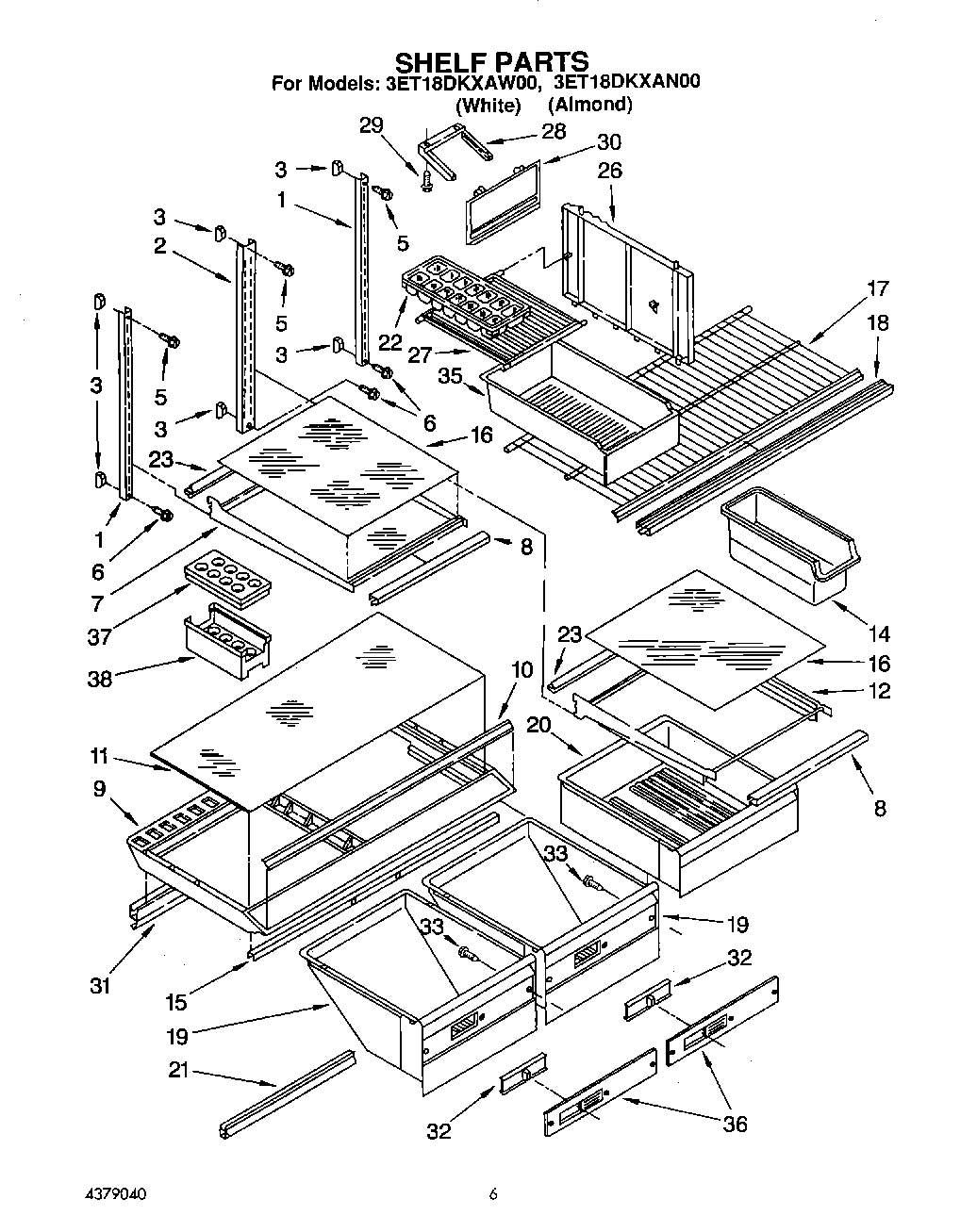

3ET18DKXAN00 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2165004
	WPL LIT2158656
	WPW10190943 Whirlpool Refrigerator Icemaker
	WPL LIT4379040
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Trim, Shelf
9	Crisper Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
14	WP982704 Whirlpool Refrigerator Container
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Crisper, Gasket Front (2)
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Reflector, Shelf
26	Divider
27	Shelf, Ice Compartment (2)
28	Slide, Ice Compartment
29	WP489478 Whirlpool Refrigerator Screw
30	Door, Ice Compartment
31	Crisper, Gasket Rear (2)
32	Slide, Crisper
33	Screw (6)
35	PAN-ICE
36	Crisper, Pan Front
37	Egg Container-Top
38	350956 Whirlpool Spray Assembly
38	285006 Whirlpool Spray
38	WP505587 Whirlpool Refrigerator Sealer
38	WP542638 Whirlpool Refrigerator Grease
38	TAPE, VINYL (3/4 X 108“)
38	350930 Whirlpool White Spray Paint
38	WPL 799833
38	72017 Whirlpool Appliance Touch-Up Paint White
38	Egg Container- Bottom
38	350942 Whirlpool Spray Paint
38	72032 Whirlpool Touch Up Paint Black
38	799344 Whirlpool Refrigerator Paint
38	212643 Whirlpool Refrigerator Permagum Sealer
38	WPL 876029
38	Almond (Uncut)
38	511873 Whirlpool Refrigerator Paint
38	606755 Whirlpool Refrigerator Bag
38	833938 Whirlpool Refrigerator Terminal
38	876370 Whirlpool Refrigerator Insulation
38	WP503695 Whirlpool Refrigerator Sealer
38	Leveler (Thinner)
38	WP72107 Whirlpool Touchup
38	CEMENT, ALUMILASTIC (1 1/4 OZ.)
