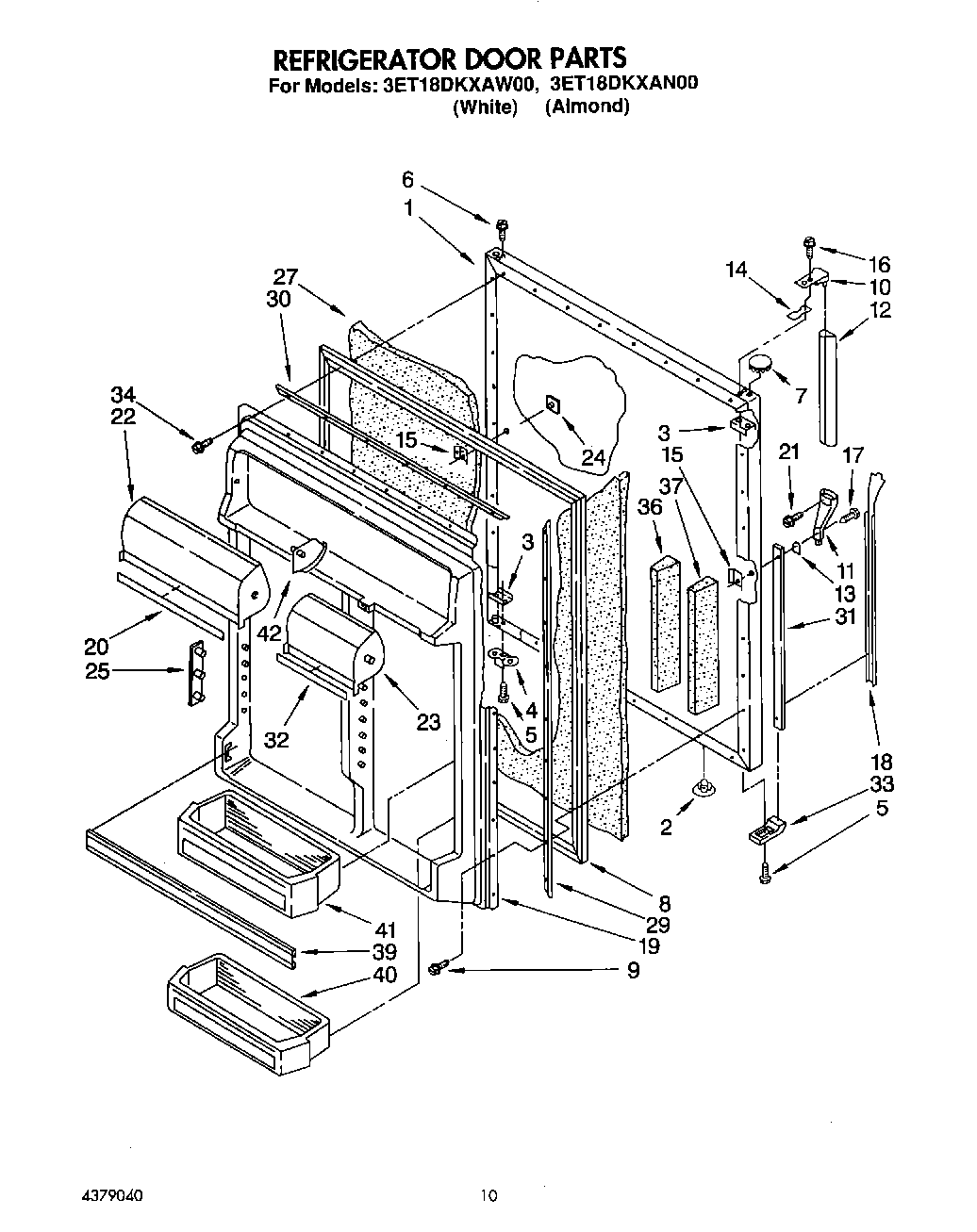

3ET18DKXAW00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2) (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center
12	Handle Center (Almond)
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle
18	Insert, Handle (Almond)
19	Interior Door Panel
20	Trim, Door Compartment
21	Screw
22	Compartment Door
23	Compartment Door
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Pin Plate (8)
27	WPL 876029
29	Retainer, Gasket Side (2)
30	WPL 1115137
31	WPL 1118080
32	Trim, Compartment Door
33	WPL 1105804
36	WPL 1118008
37	WPL 1118007
39	Trim, Door Shelf
40	Shelf Bin (2)
41	Shelf Bin (2) Deep
42	WP1118001 Whirlpool Hinge Pin
