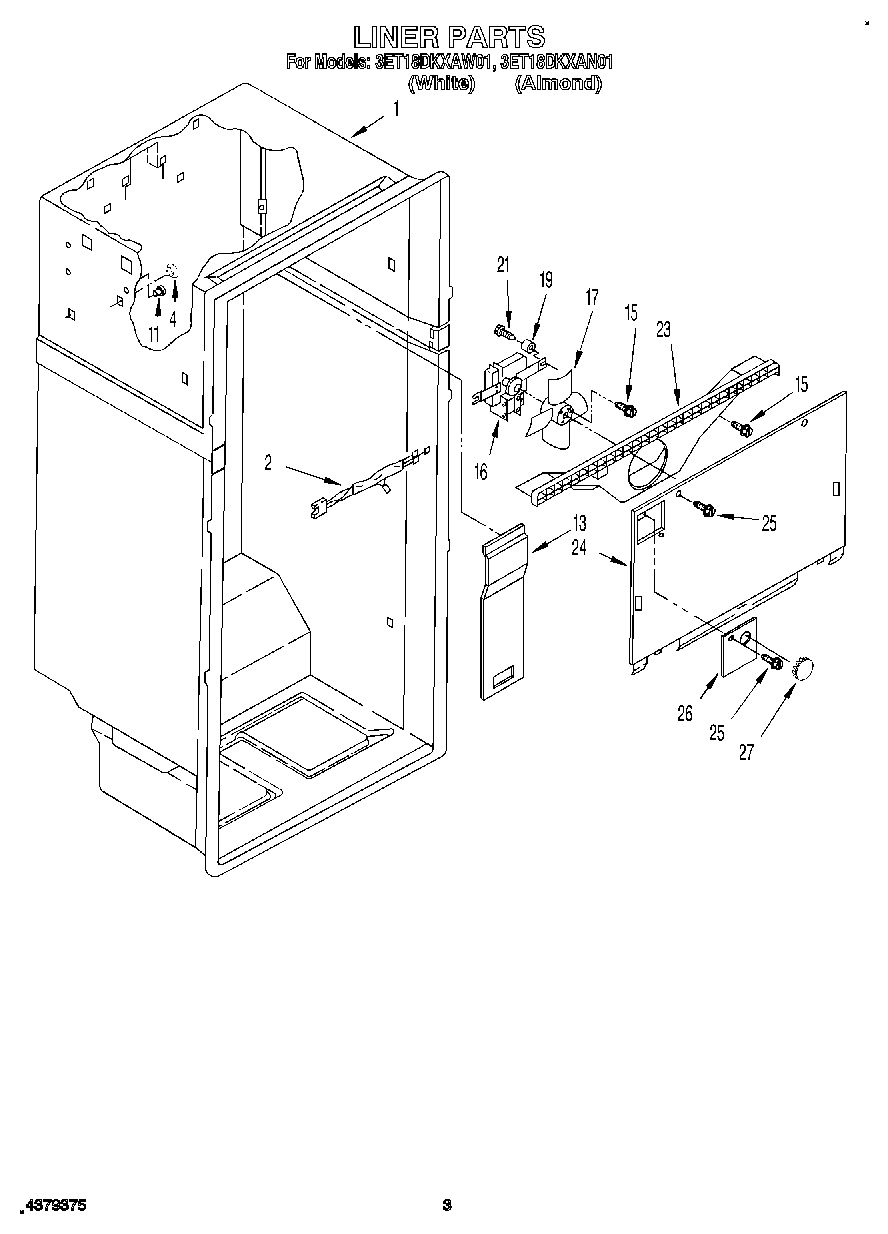

3ET18DKXAW01 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
4	WP941839 Whirlpool Refrigerator Button Plug
11	Grommet (8)
13	Cover, Air Duct
15	WP489478 Whirlpool Refrigerator Screw
16	Motor, Fan
17	WP1100938 Whirlpool Refrigerator Fan Blade
19	Grommet
21	Screw (2)
23	Scroll, Fan
24	Evaporator Cover
25	WP488729 Whirlpool Refrigerator Door Screw
26	WP2217784 Whirlpool Refrigerator Cover
27	Hole Plug
