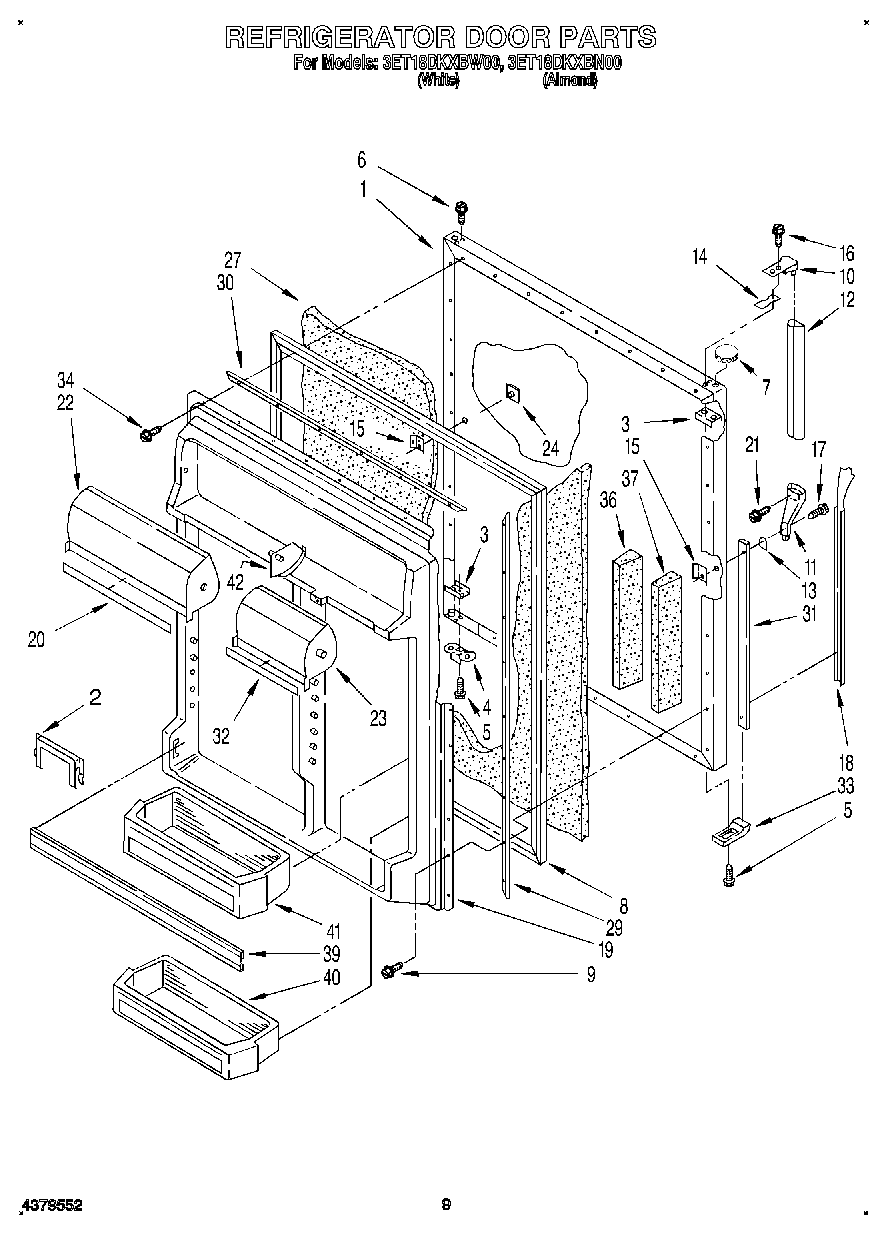

3ET18DKXBN00 06 – REFRIGERATOR DOOR

3ET18DKXBN00 06 – REFRIGERATOR DOOR

Written by

in

3ET18DKXBN00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (White)
2Retainer, Bottle
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10Handle End
11Handle End, Side
12Handle, Center
12Handle Center (Almond)
13Shim
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18Insert, Handle (Almond)
18Insert, Handle
19Interior Door Panel
20Trim, Door Compartment (L.S.)
21Screw
22Compartment Door
23Compartment Door
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
27WPL 876029
29Retainer, Gasket Side (2)
30WPL 1115137
31WPL 1118080
32Trim, Compartment Door
33WPL 1105804
36WPL 2157385
37WPL 1118007
39Trim, Door Shelf
40Bin, Do
41WPL 2162886
42WP1118001 Whirlpool Hinge Pin
