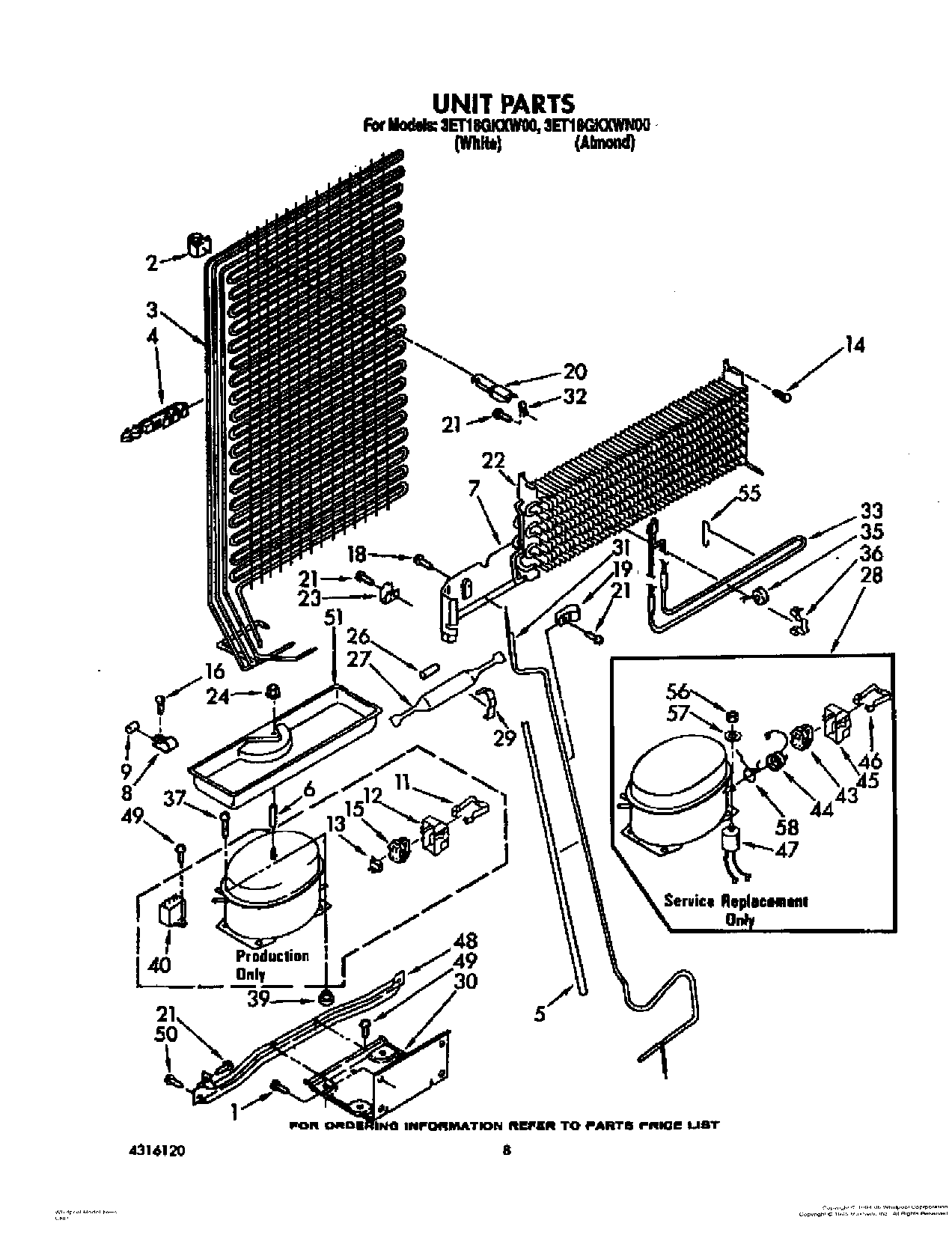

3ET18GKXWN00 07 – UNIT

Products

Position	Product
1	WP250830 Whirlpool Refrigerator Screw
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
12	Cover
13	Overload
14	WP489174 Whirlpool Refrigerator Screw
16	Screw, 8-32 x 1/2
19	Tube, Clamp
20	Condenser, Stand-Off
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	WPW10662129 Whirlpool Refrigerator Run Capacitor
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	WP489427 Whirlpool Refrigerator Screw
51	Evaporator Tray
55	Support, Heater
56	Nut
57	Washer
58	WP978025 Whirlpool Refrigerator Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	Overload Spring
58	VALVE, ACCESS (5/8“)
58	VALVE, ACCESS (1/2“)
