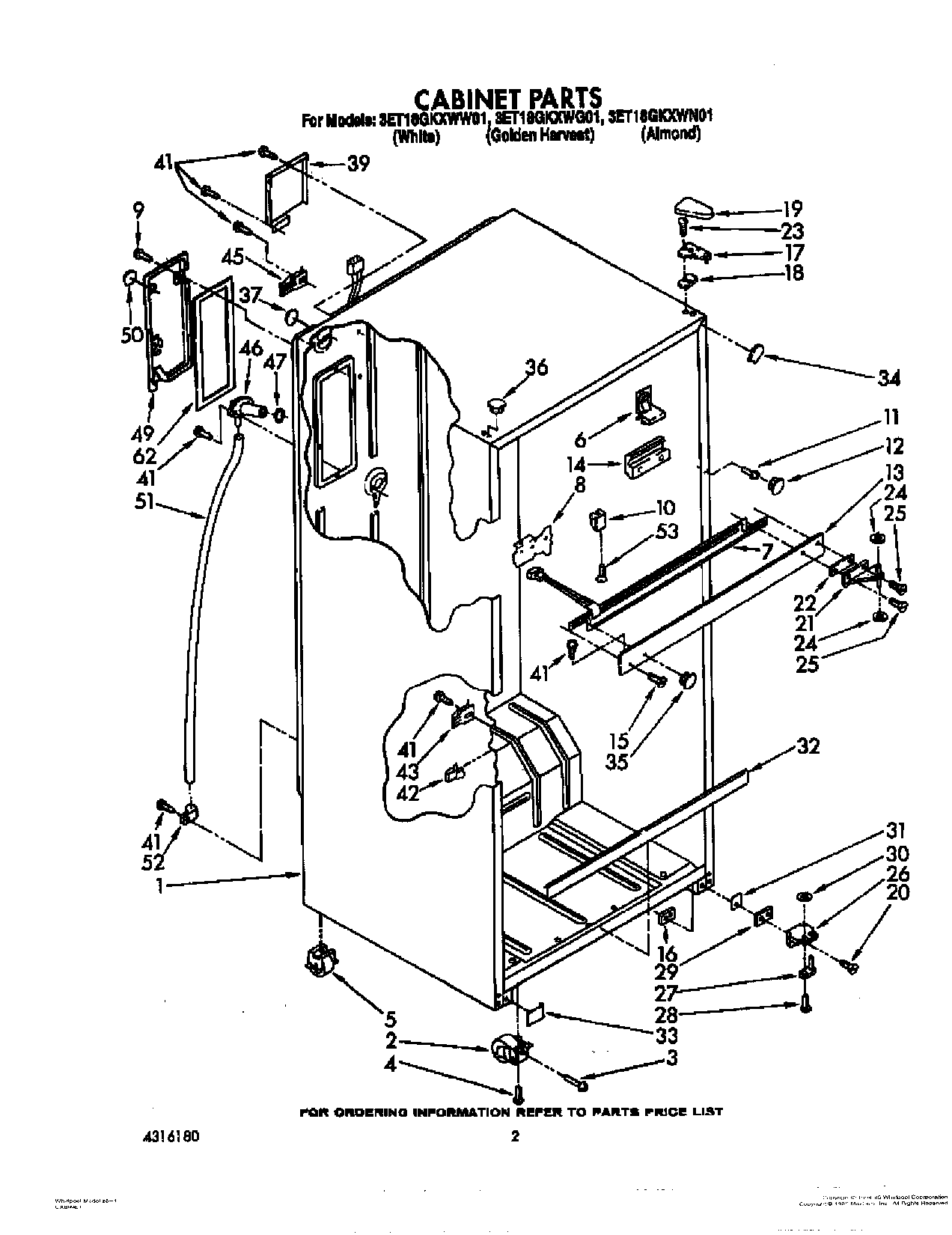

3ET18GKXWW01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw
4	Screw, 10-32 x 1/2
5	Roller, Rear
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Spacer (3)
11	WPL 488844
12	Hole Plug (2) (Golden Harvest)
12	Hole Plug (2) (Almond)
12	Hole Plug (2) (White)
13	Center Rail (Almond)
13	Center Rail (Golden Harvest)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
16	Tap Plate (2)
17	Hinge, Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Golden Harvest)
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP489349 Whirlpool Refrigerator Screw
24	WP488296 Whirlpool Washer Refrigerator
25	WP999367 Whirlpool Refrigerator Screw
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP487576 Whirlpool Washer
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Almond)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (White)
33	WPL 943552
33	WPL 944831
33	WPL 944833
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Golden Harvest)
35	Hole Plug (Almond)
35	WPL 1119708
35	Hole Plug (White)
36	Hole Plug (6) (Almond)
36	WP2151652 Whirlpool Refrigerator Button Plug
36	Hole Plug (5) (Golden Harvest)
37	Hole Seal
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP488163 Whirlpool Refrigerator Screw
62	WPL 1106510
