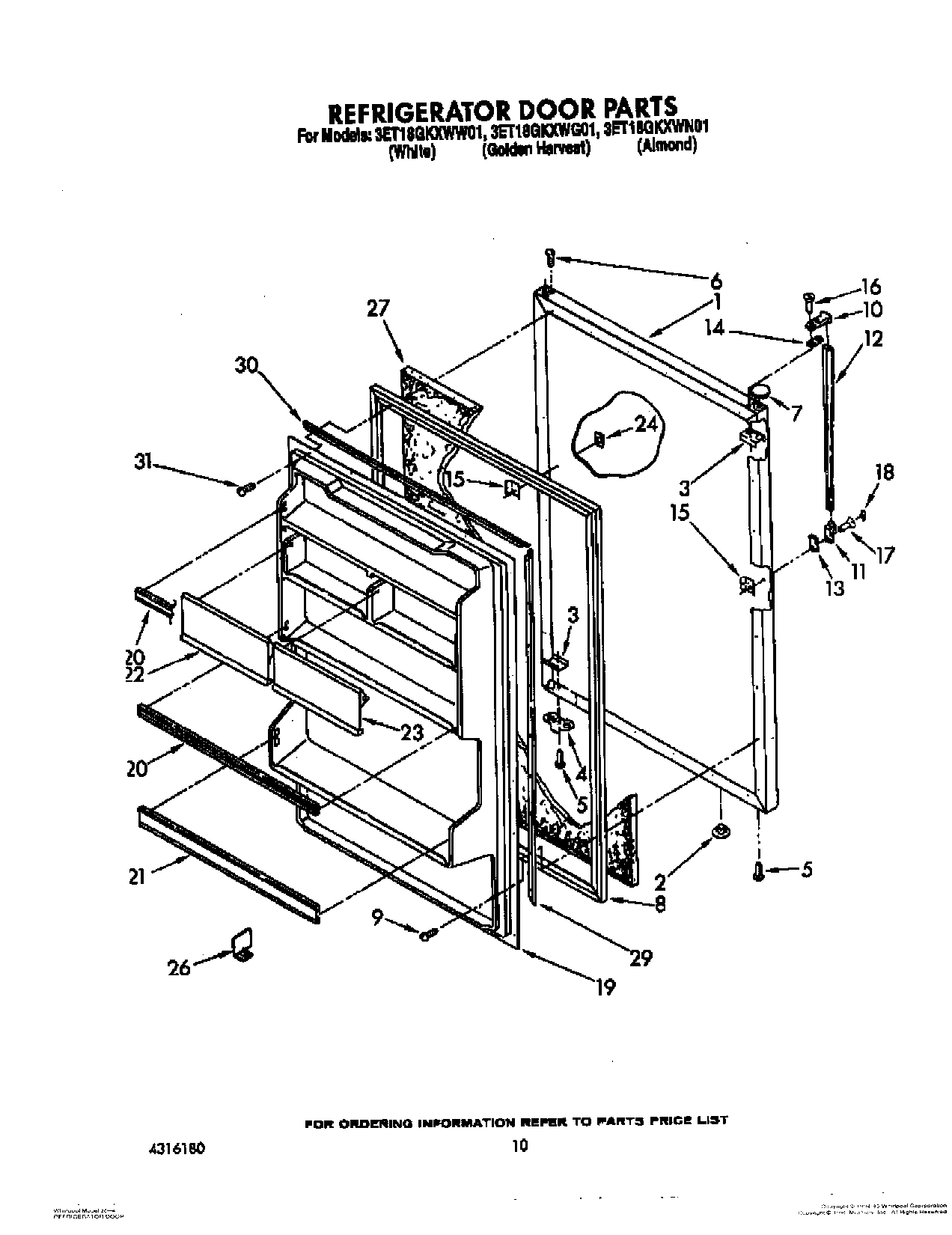

3ET18GKXWW01 09 – REFRIGERATOR DOOR, NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	Torx Key
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT4316180
	WPL LIT2148174
	350942 Whirlpool Spray Paint
	Service & Wiring Sheet
	WPL LIT2148379
	WPL LIT1129629
	Leveler (Thinner)
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Golden Harvest)
1	Panel, Refrigerator Door (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	Handle, Center
13	Shim, Handle End
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door, Utility
23	Compartment Door, Butter
24	Hole Plug, Handle (White)
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
26	Divider
29	Gasket Retainer, Side (2)
30	Gasket Retainer, Top & Bottom (2)
31	799344 Whirlpool Refrigerator Paint
31	WPL 876029
31	212643 Whirlpool Refrigerator Permagum Sealer
31	72017 Whirlpool Appliance Touch-Up Paint White
31	72032 Whirlpool Touch Up Paint Black
31	WPL 799833
31	511873 Whirlpool Refrigerator Paint
31	Enamel, Black (1 Qt. Uncut)
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	TAPE, VINYL (3/4 X 108“)
31	Transformer (115-230 Volt)
31	606755 Whirlpool Refrigerator Bag
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	WP503695 Whirlpool Refrigerator Sealer
31	833938 Whirlpool Refrigerator Terminal
31	876370 Whirlpool Refrigerator Insulation
