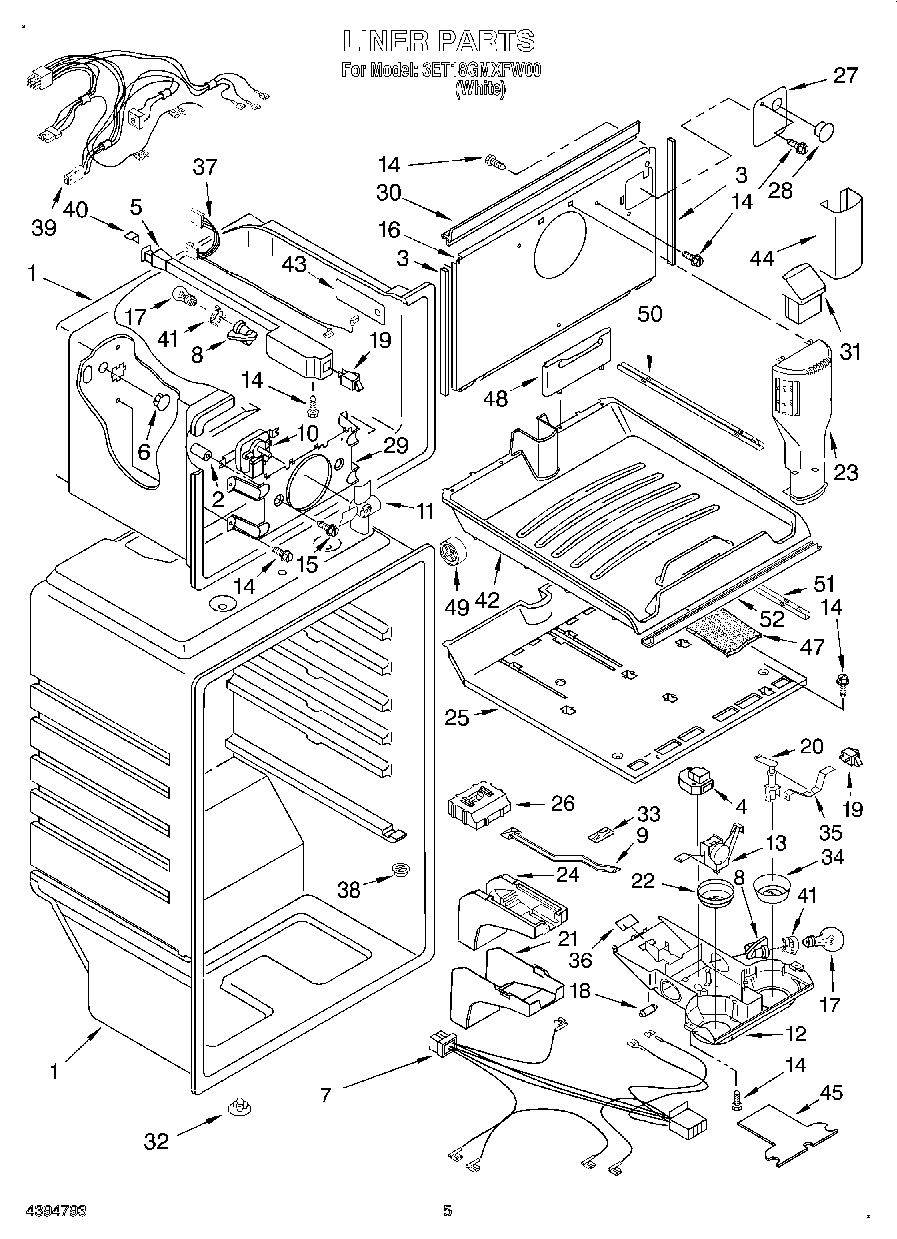

3ET18GMXFW00 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
4	WP2166867 Whirlpool Refrigerator Defrost Timer
5	Housing Base
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	4387562 Whirlpool Refrigerator Thermostat Temperature Cold Control
14	WP489478 Whirlpool Refrigerator Screw
15	Screw
16	Cover, Evaporator
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Post, Damper
21	Cover, Air Diffuser
22	Knob, Thermostat
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
27	WP2217784 Whirlpool Refrigerator Cover
28	940014 Whirlpool Refrigerator Primary Button Plug
29	Bracket, Fan Motor
30	WP2254360 Whirlpool Refrigerator Gasket
31	4388450 Whirlpool Refrigerator Insert
32	Hole Plug
33	Clip, Defrost Timer
34	Knob, Damper
35	Bracket, Damper Knob
36	WP2205079 Whirlpool Refrigerator Seal
37	Wiring Harness, Freezer Light
38	WP2210509 Whirlpool Refrigerator Tub Valve
39	Wire Assembly, F.C.
40	Gasket, Rear
41	WP2175210 Whirlpool Refrigerator Shroud
42	Pullout, Freezer Floor
43	Electrical Shield, Freezer Light
44	Sleeve
45	Shield
47	Insulation, Freezer Floor
48	REAR FENCE PULL-OUT FREEZER FLOOR
49	Roller, Slide
50	Side Support, Floor Assembly
51	Center Support, Floor Assembly
52	Trim, Pullout Freezer Floor
