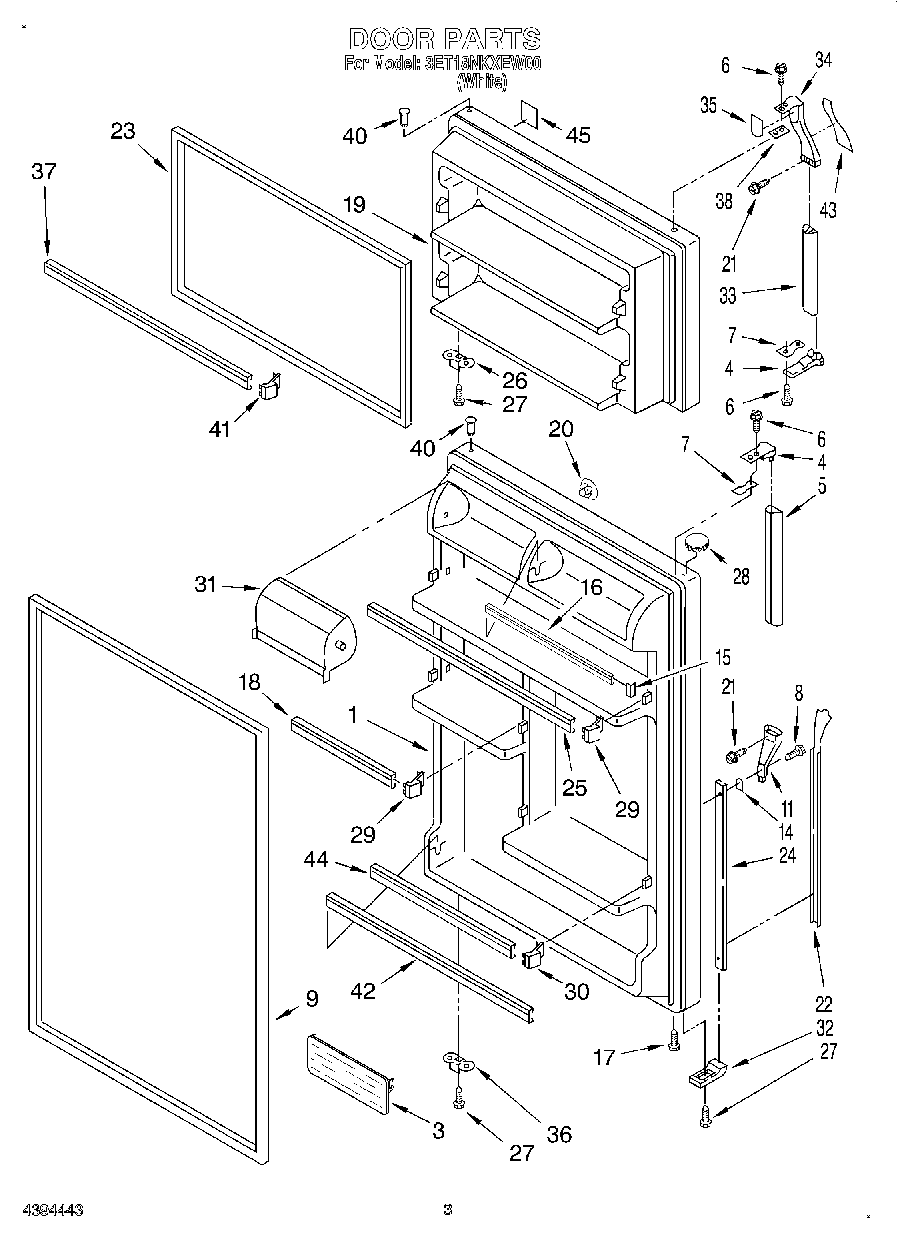

3ET18NKXEW00 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (White)
3	WP2188234 Whirlpool Shelf
4	Handle End
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	Handle End, Side
14	Shim
15	ENDCAP-TRM
16	Trim, Door Shelf
17	WP8281206 Whirlpool Refrigerator Screw
18	Trim, Door
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	Screw
22	Insert, Handle (White)
23	2159327 Whirlpool Refrigerator Door Gasket
24	Retainer
25	Trim, Door Shelf
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	WP2195915 Whirlpool Door Shelf Support
30	Plug-Trim
31	WP2218113 Whirlpool Dairy Door
32	WPL 1105804
33	Handle, Center (White)
34	Handle End, Top
35	Shim, EndCap (Top)
36	W11745278 Whirlpool Bracket
37	Trim-Door (2)
38	Shim, Handle
40	WP2183003 Whirlpool Thimble
41	ENDCAP
42	Trim, Door
43	Insert, Handle
44	Trim-Door Shelf
45	Nameplate (White)
