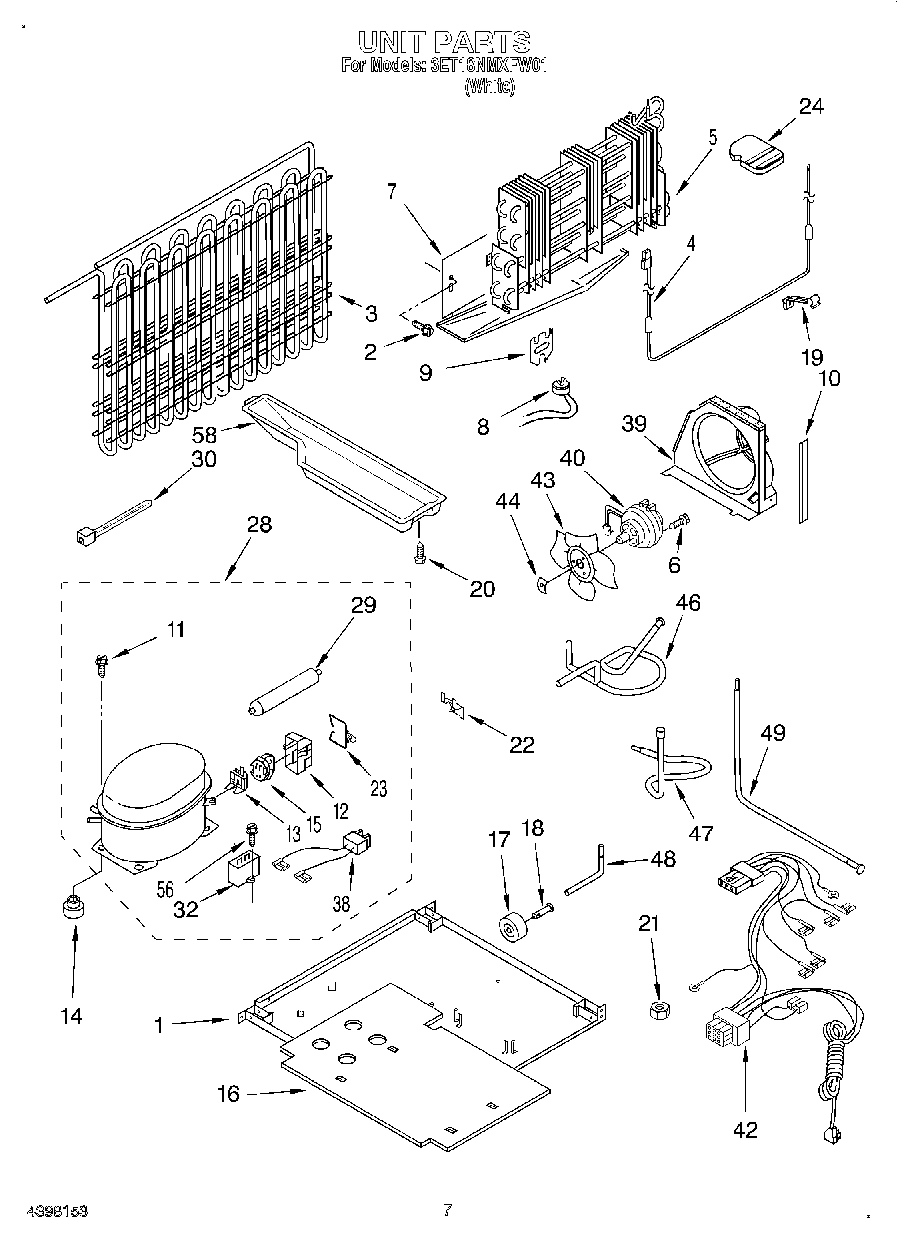

3ET18NMXFW01 04 – UNIT

3ET18NMXFW01 04 – UNIT

Written by

in

3ET18NMXFW01 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3Condenser
4Heater, Defrost
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
8WP2182381 Whirlpool Refrigerator Bimetallic Defrost
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13Overload (Service)
13Overload
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
15WP2262184 Whirlpool Refrigerator Start Relay
16Cover, Unit
174388239 Whirlpool Refrigerator Primary Cabinet Roller
18W11594405 Whirlpool Axle
19Clip, Heater
20Screw
21Nut (Not Serviced)
22Clip, Capacitator
23Clip, Wire
24Support Block
28Installation Kit
284387782 Whirlpool Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WP2201147 Whirlpool Refrigerator Capacitor
38WP2172890 Whirlpool Refrigerator Wire
39Air Baffle
408201703 Whirlpool Refrigerator Condenser Motor
42Wire Assy. Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56W11693756 Whirlpool Screw Assembly
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (5/8“)
58Evap. Tray
58876764 Whirlpool Refrigerator Primary Valve
58Start Kit
58978026 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58978030 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
