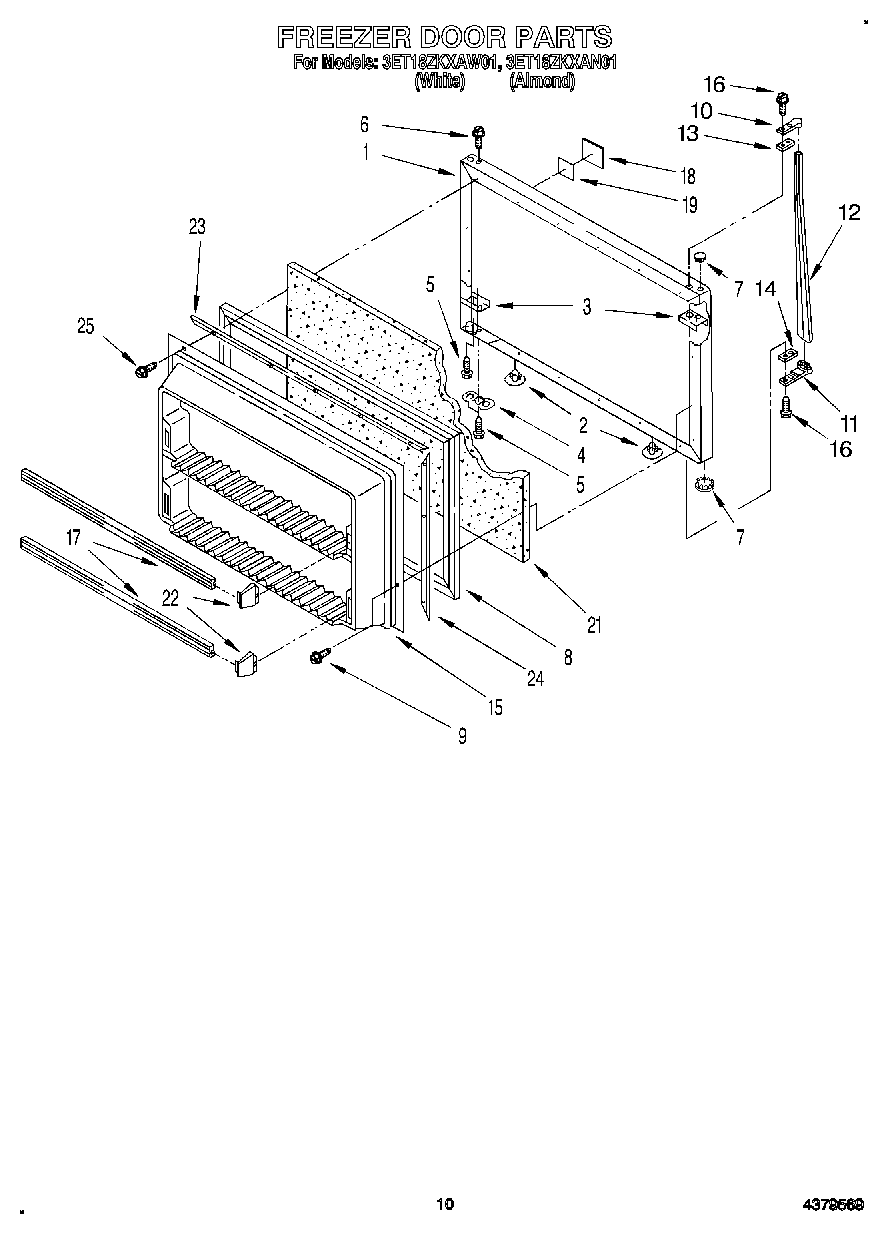

3ET18ZKXAN01 07 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT2165191
WPL LIT2158656
1Panel, Freezer Door (Also Order Item 21) (White)
1Panel, Freezer Door (Also Order Item 21) (Almond)
2Hole Plug (2) (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10WP2191882 Whirlpool Refrigerator Handle End Cap
11WP2191883 Whirlpool Refrigerator Handle Endcap
12WP2162555 Whirlpool Refrigerator White Door Handle
12Handle, Center (Almond)
13Shim, Handle
14Spa
15Interior Door Panel
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door Shelf (2)
18Nameplate (White)
18Nameplate (Almond)
19Tape Strip
224386917 Whirlpool Endcap Kit
23WPL 1115137
24WPL 1115138
25511873 Whirlpool Refrigerator Paint
25350942 Whirlpool Spray Paint
25212643 Whirlpool Refrigerator Permagum Sealer
25Door Reversal Instructions
25350930 Whirlpool White Spray Paint
25Almond (Uncut)
25WP72107 Whirlpool Touchup
25799344 Whirlpool Refrigerator Paint
2572017 Whirlpool Appliance Touch-Up Paint White
25350956 Whirlpool Spray Assembly
25WPL 799833
25606755 Whirlpool Refrigerator Bag
25TAPE, VINYL (3/4 X 108“)
25WP542638 Whirlpool Refrigerator Grease
25CEMENT, ALUMILASTIC (1 1/4 OZ.)
25WP505587 Whirlpool Refrigerator Sealer
25WP503695 Whirlpool Refrigerator Sealer
25876370 Whirlpool Refrigerator Insulation
2572032 Whirlpool Touch Up Paint Black
25833938 Whirlpool Refrigerator Terminal
25WP488729 Whirlpool Refrigerator Door Screw
25285006 Whirlpool Spray
25WPL 876029
