3ET18ZKXDN02 06 – UNIT, LIT/OPTIONAL

3ET18ZKXDN02 06 – UNIT, LIT/OPTIONAL

Written by

in

3ET18ZKXDN02 06 – UNIT, LIT/OPTIONAL

Products

PositionProduct
WPL LIT677971
WPL LIT2170417
Torx Key
WPL LIT2166777

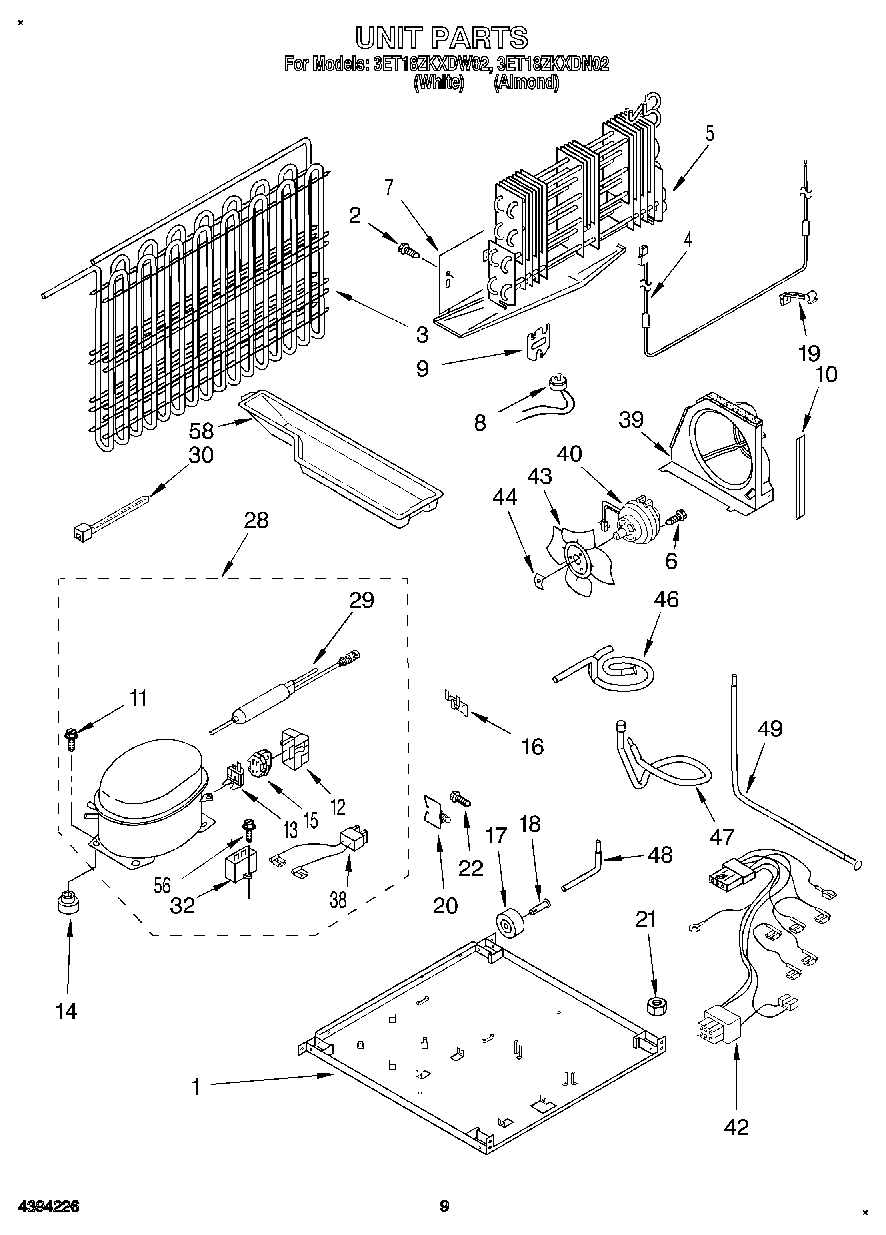

Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3Condenser
4Heater, Defrost
5Evaporator Assy.
6Screw
7Drain Pan
8WP2182381 Whirlpool Refrigerator Bimetallic Defrost
9Bracket, Heater
10Extension, Air Baffle
11SCREW
12WP2162358 Whirlpool Refrigerator Terminal Cover
13Overload
14W11661108 Whirlpool Grommet
14876811 Whirlpool Grommet
15Relay (See Overload)
16Clip, Capacitator
17Roller (2)
18W11594405 Whirlpool Axle
19Clip, Heater
20Clip, Wire
21Nut (Not Serviced)
28Installation Kit
28876765 Whirlpool Primary Mounting Kit Refrigerator
284387782 Whirlpool Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WP2201147 Whirlpool Refrigerator Capacitor
38WP2172890 Whirlpool Refrigerator Wire
39Baffle, Air
408201703 Whirlpool Refrigerator Condenser Motor
42Wire Assy. Unit
43Fan, Blade
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56W11693756 Whirlpool Screw Assembly
58Start Kit
58350930 Whirlpool White Spray Paint
58Door Reversal Instructions
58Evap. Tray
58CEMENT, ALUMILASTIC (1 1/4 OZ.)
58WP503695 Whirlpool Refrigerator Sealer
58876370 Whirlpool Refrigerator Insulation
58833938 Whirlpool Refrigerator Terminal
58606755 Whirlpool Refrigerator Bag
58511873 Whirlpool Refrigerator Paint
58350942 Whirlpool Spray Paint
58212643 Whirlpool Refrigerator Permagum Sealer
58VALVE, ACCESS (5/8“)
58Almond (Uncut)
58WP72107 Whirlpool Touchup
58799344 Whirlpool Refrigerator Paint
5872017 Whirlpool Appliance Touch-Up Paint White
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
5872032 Whirlpool Touch Up Paint Black
58285006 Whirlpool Spray
58WPL 876029
58WPL 799833
58WPL 799832
58TAPE, VINYL (3/4 X 108“)
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58978030 Whirlpool Refrigerator Valve
58WP542638 Whirlpool Refrigerator Grease
58978027 Whirlpool Refrigerator Primary Valve
58WP505587 Whirlpool Refrigerator Sealer
58350956 Whirlpool Spray Assembly
