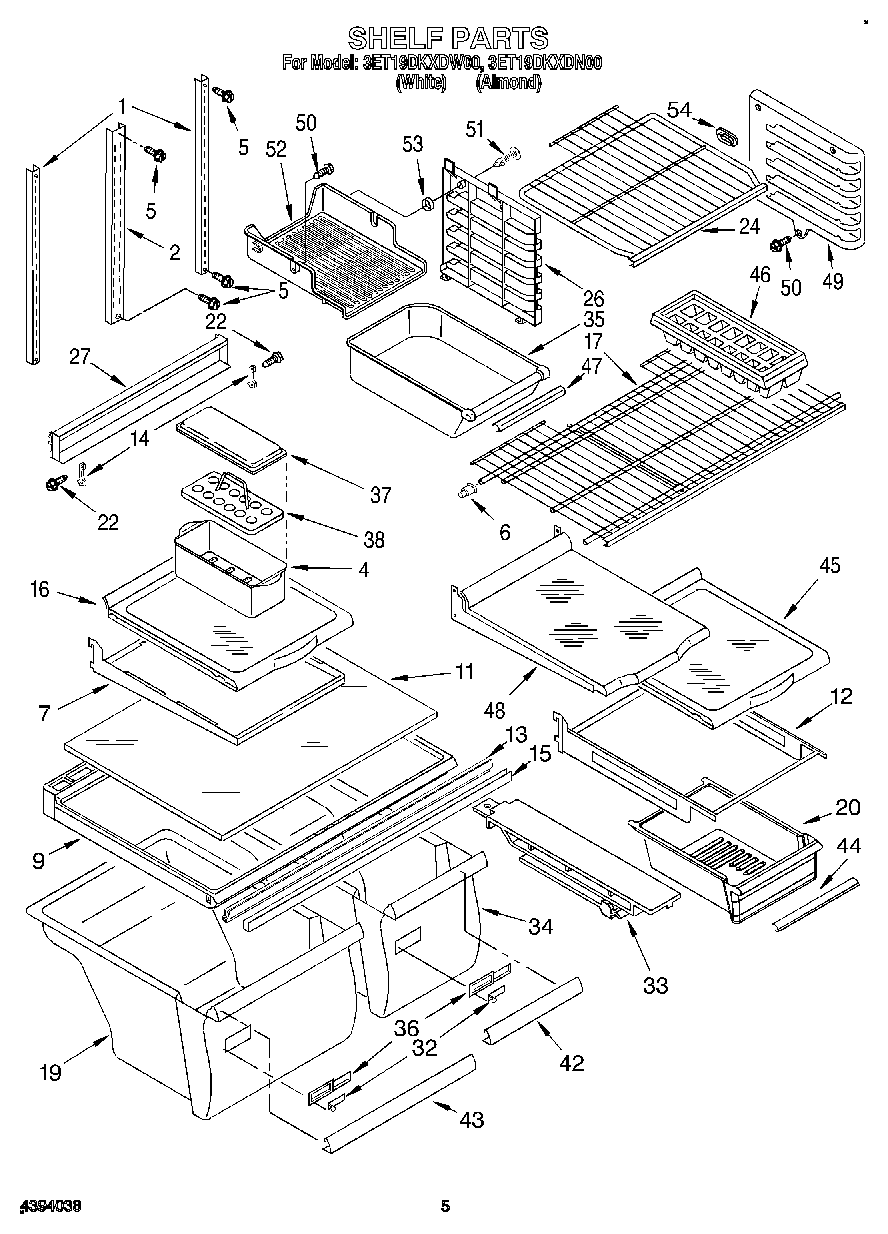

3ET19DKXDN00 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	2163762 Whirlpool Refrigerator Cup Assembly
7	Frame Assembly, Shelf (3)
9	WP2314548 Whirlpool Refrigerator Cover
11	WP2169921 Whirlpool Refrigerator Glass Shelf
12	Frame Assembly, Meat Shelf
13	Gasket, Crisper Cover
14	Hook, Shelf
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard
17	WP2176275 Whirlpool Refrigerator Wire Shelf
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	PAN-MEAT
22	Screw
24	Shelf, Freezer (Top)
26	Bracket, Shelf Mounting (L.S.)
27	Track Assembly, Shelf
32	WP2176222 Whirlpool Refrigerator Slide
33	WP2163835 Whirlpool Track Assembly
34	W10856580 Whirlpool Crisper Pan
35	Ice Bucket
36	WP2212446 Whirlpool Refrigerator Control Body
37	Cover
38	WP2177817 Whirlpool Refrigerator Egg Container
42	Trim, Crisper Pan
43	Trim, Crisper Pan
44	Trim, Meat Pan
45	Shelf Assembly, Spillguard
46	WP841180A Whirlpool Microwave Glass Turntable Tray
47	Trim, Ice Bucket
48	Shelf Assembly, Spillguard
49	Bracket, Shelf Mounting (R.S.)
50	WP489442 Whirlpool Refrigerator Screw
51	Fastener
52	Shelf, Ice Tray
53	Support, Ice Tray Shelf
54	Plug, Shelf Cup
