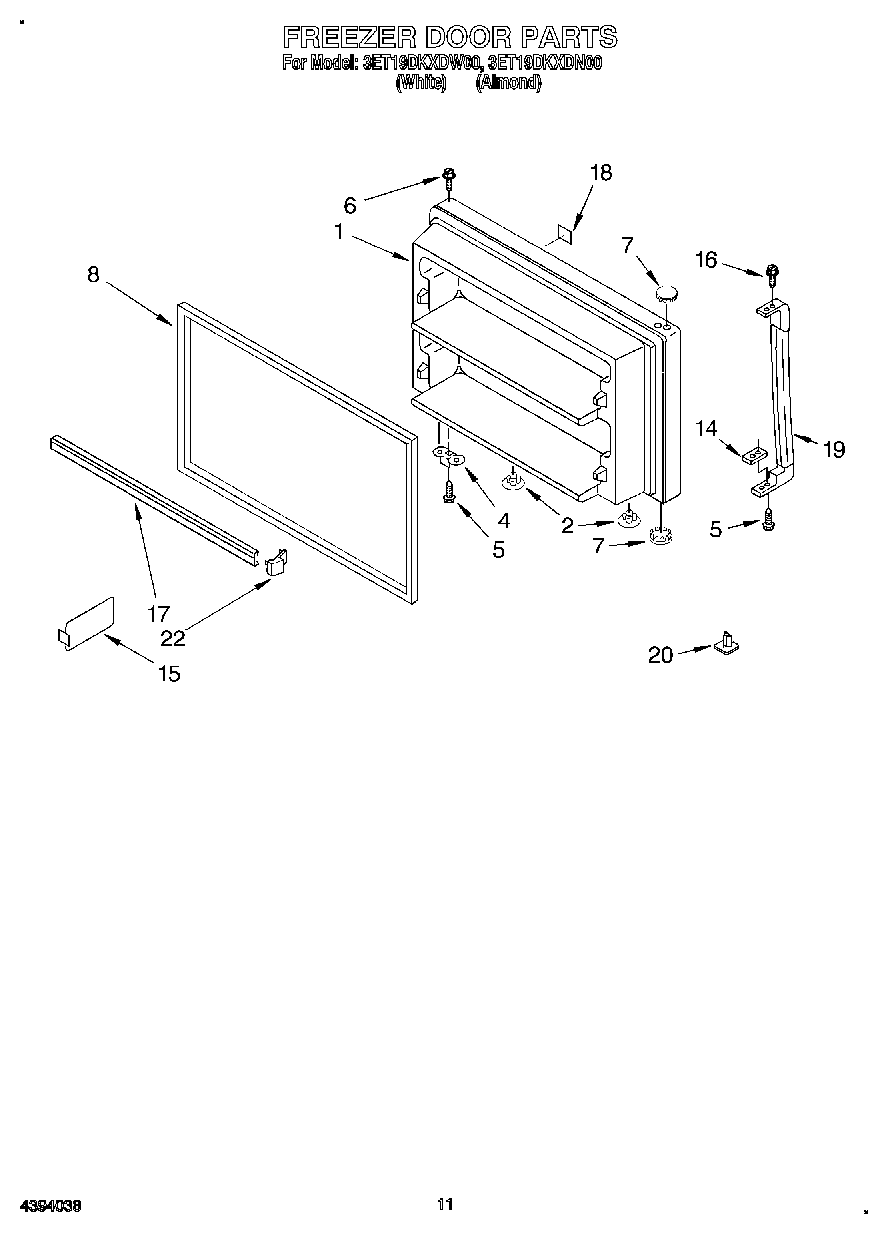

3ET19DKXDN00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2166777
	WPL LIT2170417
	Torx Key
1	Freezer Door (Includes Item 8) (Almond)
1	Freezer Door (Includes Item 8) (White)
2	Hole Plug (2)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
14	Shim, Bottom
15	Divider-Door
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Nameplate (White)
18	Nameplate (Black)
19	Handle (White)
19	Handle (Almond)
20	Hole Plug (White)
20	Hole Plug (Almond)
22	ENDCAP
22	72032 Whirlpool Touch Up Paint Black
22	285006 Whirlpool Spray
22	Almond (Uncut)
22	TAPE, VINYL (3/4 X 108``)
22	350956 Whirlpool Spray Assembly
22	72017 Whirlpool Appliance Touch-Up Paint White
22	799344 Whirlpool Refrigerator Paint
22	WP72107 Whirlpool Touchup
22	212643 Whirlpool Refrigerator Permagum Sealer
22	350942 Whirlpool Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	606755 Whirlpool Refrigerator Bag
22	833938 Whirlpool Refrigerator Terminal
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP505587 Whirlpool Refrigerator Sealer
22	WP542638 Whirlpool Refrigerator Grease
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	WPL 799832
22	WPL 799833
22	WPL 876029
22	350930 Whirlpool White Spray Paint
