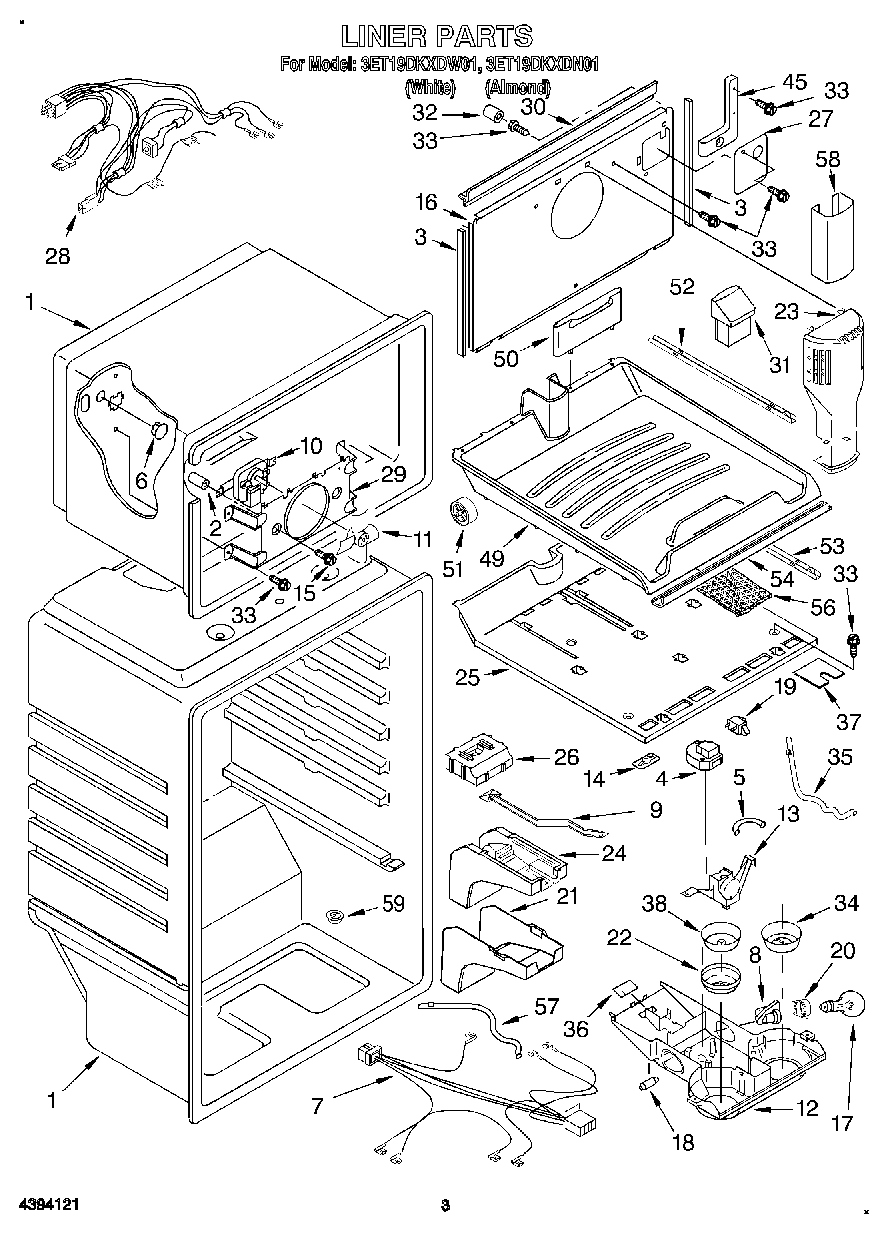

3ET19DKXDW01 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
4	WP2166867 Whirlpool Refrigerator Defrost Timer
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	4387562 Whirlpool Refrigerator Thermostat Temperature Cold Control
14	Clip, Defrost Timer
15	Screw
16	Cover, Evaporator
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	WP2175210 Whirlpool Refrigerator Shroud
21	Cover, Air Diffuser
22	Knob, Theromstat
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
27	WP2217784 Whirlpool Refrigerator Cover
28	Wire Assembly, Freezer Comp.
29	Bracket, Fan Motor
30	WP2254360 Whirlpool Refrigerator Gasket
31	4388450 Whirlpool Refrigerator Insert
32	WP487996 Whirlpool Refrigerator Cap Tube
33	WP489442 Whirlpool Refrigerator Screw
34	Knob, Damper
35	Light Bar, R.S.
36	WP2205079 Whirlpool Refrigerator Seal
37	Foil, Control Box
38	WP2184574 Whirlpool Refrigerator Gear Wheel
45	Shroud, Icemaker
49	Pullout, Freezer Floor (Includes Item 56)
50	Rear Fence, Pull- Out Freezer Floor
51	Roller, Slide
52	Side Support, Floor Assembly
53	Center Support, Floor Assembly
54	Trim, Pullout Freezer Floor
56	Insulation, Freezer Floor
57	Light Bar, L.S.
58	Sleeve
59	WP2210509 Whirlpool Refrigerator Tub Valve
