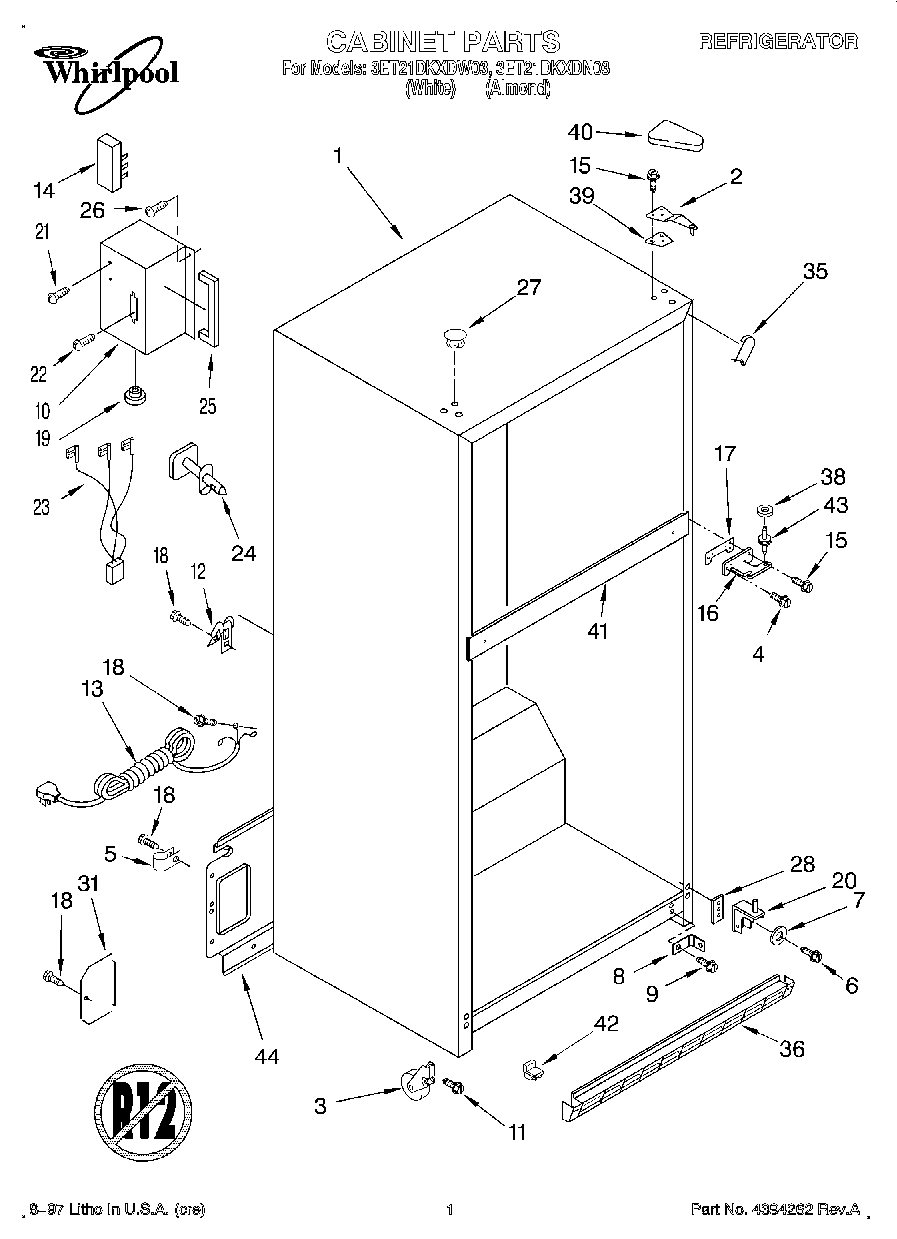

3ET21DKXDN03 01 – CABINET

Written by

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Hinge (Top)
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	Screw
7	WP489467 Whirlpool Hinge Shim
8	Bracket, Bottom Hinge
9	Screw
10	Enclosure, Term.
11	Screw
12	489348 Whirlpool Refrigerator Tube Clamp
13	Service Cord
14	Terminal Block
15	WP999367 Whirlpool Refrigerator Screw
16	Hinge, Center
17	Shim, Hinge Center
18	WP489463 Whirlpool Refrigerator Screw
19	Bushing
20	Hinge Butt
21	WPW10272364 Whirlpool Refrigerator Screw
22	Screw
23	Wire Assembly, Terminal Box
24	Fitting, Water Tube (Not Serviced)
25	Gasket
26	WP250830 Whirlpool Refrigerator Screw
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Almond)
28	Shim, Bottom Hinge
31	Cover, Water Valve
35	WPW10283959 Whirlpool Refrigerator Filler
35	Corner Filler (2) (Almond)
36	Grille (White)
36	Grille (Almond)
38	WP487576 Whirlpool Washer
39	Shim
40	Cover-Hinge (White)
40	Cover-Hinge (Almond)
41	Rail Center (Not Serviced)
42	Corner Filler, Grille (White)
42	Corner Filler, Grille (Almond)
43	WP2254618 Whirlpool Center Door Hinge
44	Cover, Unit
