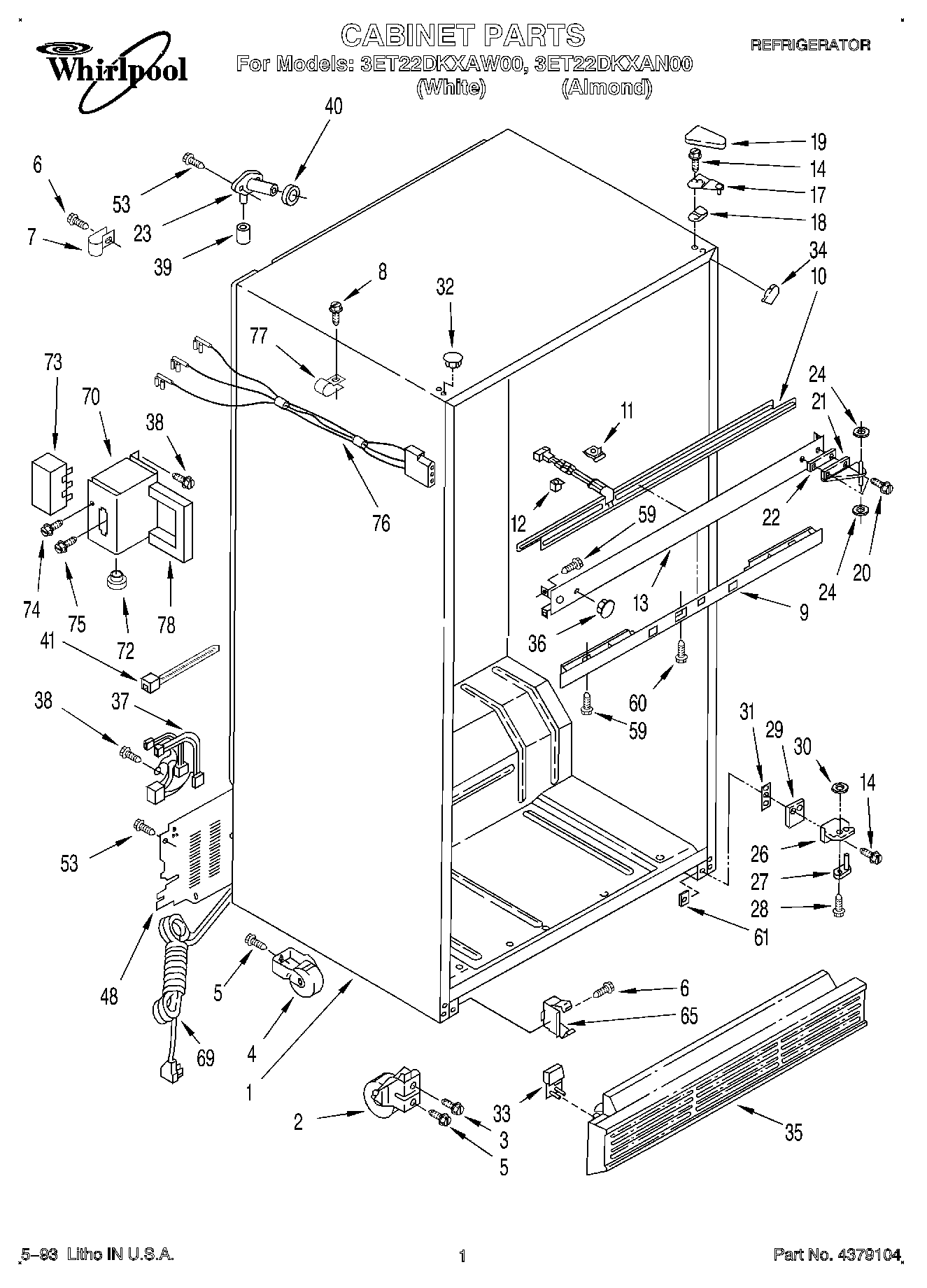

3ET22DKXAW00 01 – CABINET

3ET22DKXAW00 01 – CABINET

3ET22DKXAW00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3Screw, 5/16-24 x 1-1/4
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
6WP489478 Whirlpool Refrigerator Screw
7WP488366 Whirlpool Refrigerator Clamp
8WP489464 Whirlpool Refrigerator Screw
9Control, Front Cover
10Heater, Mullion
11Clip, Center Rail (4)
12Spacer (3)
13Center Rail (White)
17WP2189412 Whirlpool Refrigerator Door Hinge
18Shim, Hinge Top
19Cover, Hinge (Almond)
19WP2213360 Whirlpool Refrigerator Cover
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Hinge Center
23WP2196157 Whirlpool Fill Tube
24WP487802 Whirlpool Refrigerator Washer
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
31Spacer
32WP2151652 Whirlpool Refrigerator Button Plug
32Hole Plug (6) (Almond)
33Corner Filler, Grille (Almond)
33Corner Filler, Grille (White)
34Filler, Wrapper Corner (2) (White)
34Filler, Wrapper Corner (2) (Almond)
35Grille (Almond)
35Grille (White)
36Hole Plug (4) (White)
36Hole Plug (4) (Almond)
37Wiring Assy. Intermediate
38WP250830 Whirlpool Refrigerator Screw
39WP487996 Whirlpool Refrigerator Cap Tube
40WP1106508 Whirlpool Refrigerator Gasket
41WPW10339879 Whirlpool Wire Tie
48Cover, Unit
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap Plate (2)
65WP2155013 Whirlpool Refrigerator Clip
69Service Cord
70Enclosure, Term.
72Bushing
73Terminal Block
74Screw
75WPW10272364 Whirlpool Refrigerator Screw
76Wiring Assembly, Terminal Block
77489348 Whirlpool Refrigerator Tube Clamp
78Gasket
