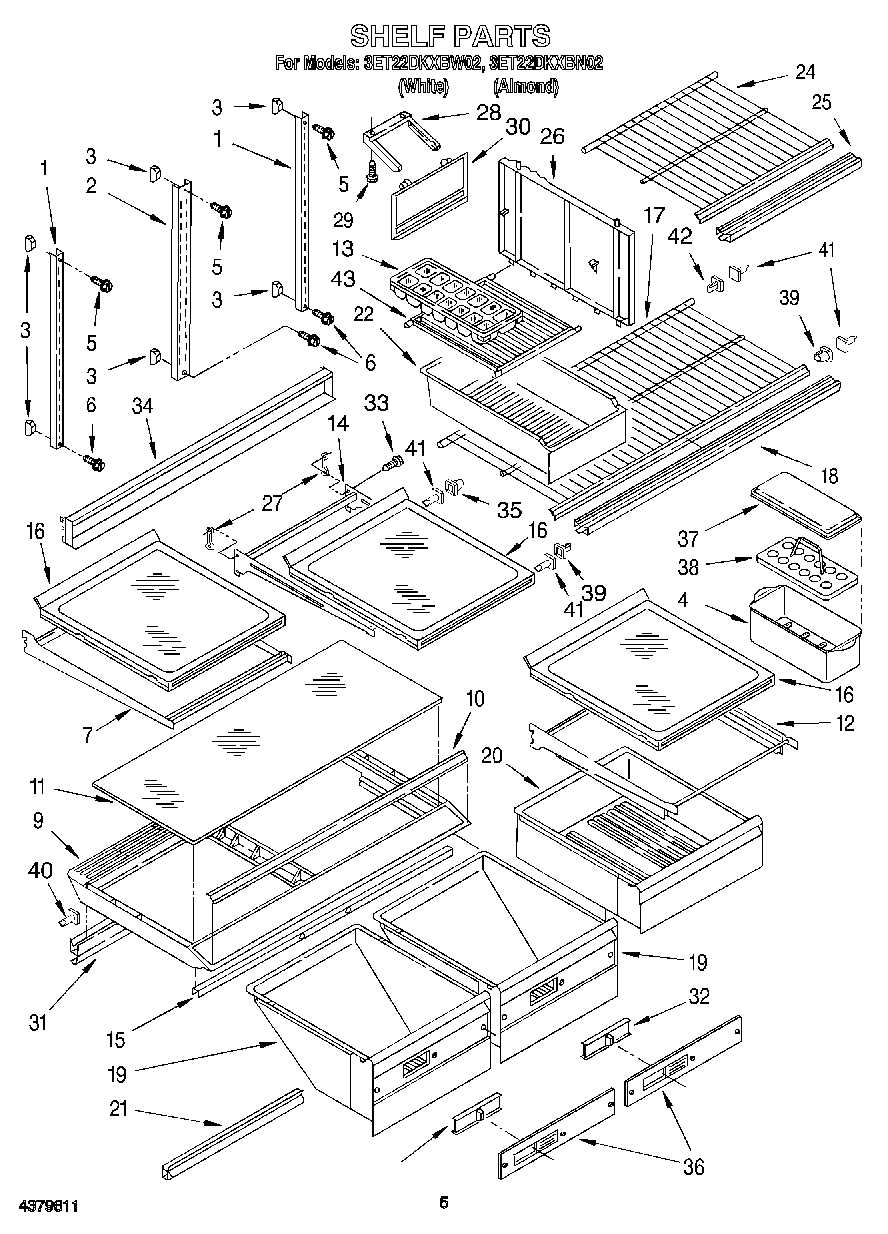

3ET22DKXBN02 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2170400
	Torx Key
	WPL LIT2166714
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	W10136387A Whirlpool Refrigerator Egg Container
5	Screw (3)
7	Shelf, Cantilever
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	WP841180A Whirlpool Microwave Glass Turntable Tray
14	Shelf Assembly, Spillguard
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
22	PAN-ICE
24	Shelf, Freezer (Top)
25	Trim, Shelf
26	Divider
27	Hook, Shelf
28	Slide, Ice Compartment
29	WP488163 Whirlpool Refrigerator Screw
30	Door, Ice Compartment
31	Gasket, Rear
32	Slide, Humidity Control
33	Screw
34	Slide, Track
36	Crisper Front
37	Cover
38	WP2177817 Whirlpool Refrigerator Egg Container
39	Stud, Front R.S.
40	W10854959 Whirlpool Refrigerator Shelf Stud
41	Stud, Support
42	819091 Whirlpool Refrigerator Shelf Stud
43	511873 Whirlpool Refrigerator Paint
43	350930 Whirlpool White Spray Paint
43	350942 Whirlpool Spray Paint
43	212643 Whirlpool Refrigerator Permagum Sealer
43	Almond (Uncut)
43	WP72107 Whirlpool Touchup
43	799344 Whirlpool Refrigerator Paint
43	72017 Whirlpool Appliance Touch-Up Paint White
43	350956 Whirlpool Spray Assembly
43	606755 Whirlpool Refrigerator Bag
43	833938 Whirlpool Refrigerator Terminal
43	876370 Whirlpool Refrigerator Insulation
43	Door Reversal Instructions
43	285006 Whirlpool Spray
43	72032 Whirlpool Touch Up Paint Black
43	WPL 876029
43	WPL 799833
43	CEMENT, ALUMILASTIC (1 1/4 OZ.)
43	TAPE, VINYL (3/4 X 108“)
43	WP542638 Whirlpool Refrigerator Grease
43	Shelf, Ice Compartment (2)
43	WP503695 Whirlpool Refrigerator Sealer
43	WP505587 Whirlpool Refrigerator Sealer
