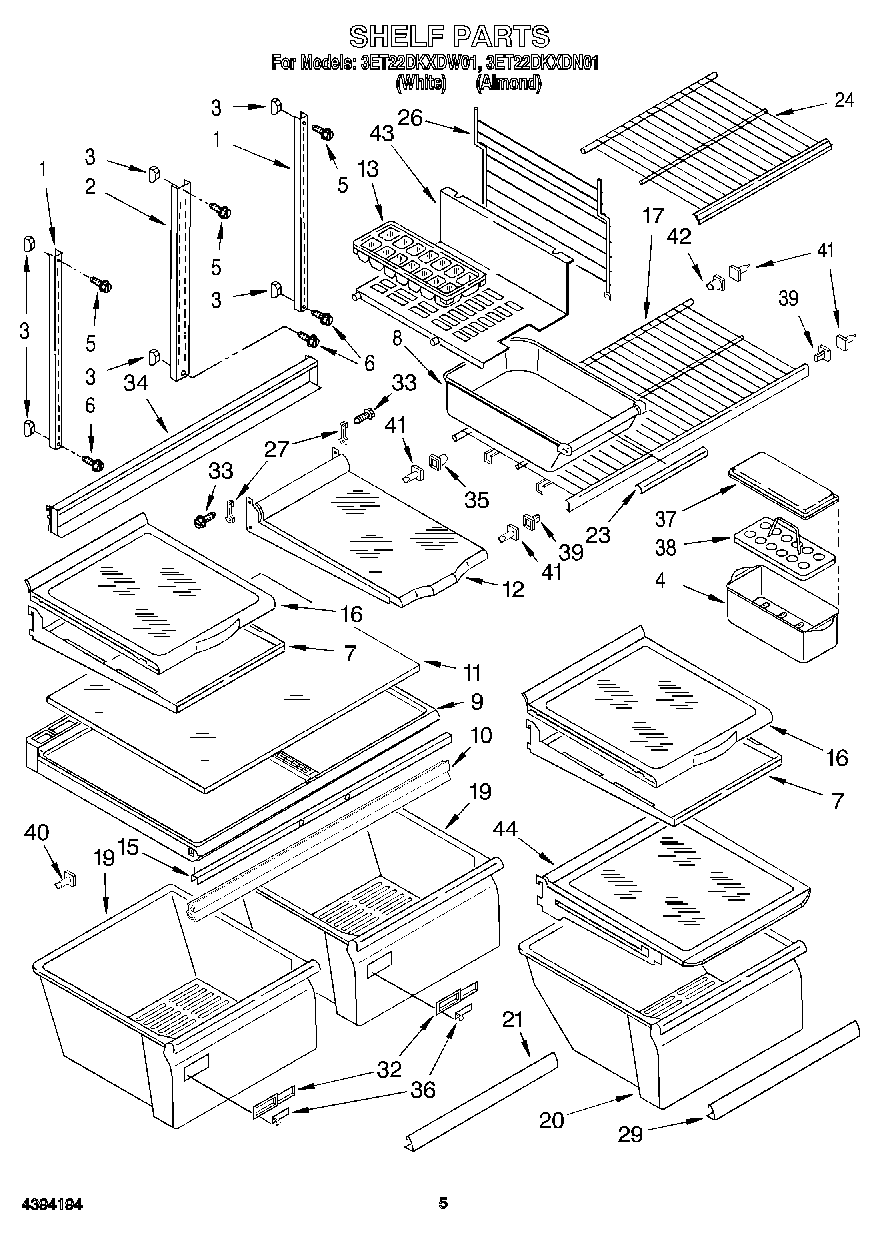

3ET22DKXDN01 04 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	W10136387A Whirlpool Refrigerator Egg Container
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	Frame Assembly, Cantilever (3)
8	Ice Bucket
9	Crisper Cover
10	Crisper Gasket, Front
11	Glass, Crisper Cover
12	Shelf, Slide
13	WP841180A Whirlpool Microwave Glass Turntable Tray
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
19	Pan, Crisper
20	Pan, Meat
21	WP2179234 Whirlpool Refrigerator Pan Trim
23	Trim, Ice Bucket
24	Shelf, Freezer (Top)
26	Divider
27	Hook, Shelf
29	WP2179243 Whirlpool Refrigerator Pan Trim
32	WP2179343 Whirlpool Refrigerator Control Body
33	Screw
34	Slide, Track
36	WP2179342 Whirlpool Refrigerator Slide
37	Cover
38	WP2177817 Whirlpool Refrigerator Egg Container
39	Stud, Front R.S.
40	W10854959 Whirlpool Refrigerator Shelf Stud
41	Stud, Support
42	819091 Whirlpool Refrigerator Shelf Stud
43	Shelf, Ice Tray
44	Shelf, Meat Pan
