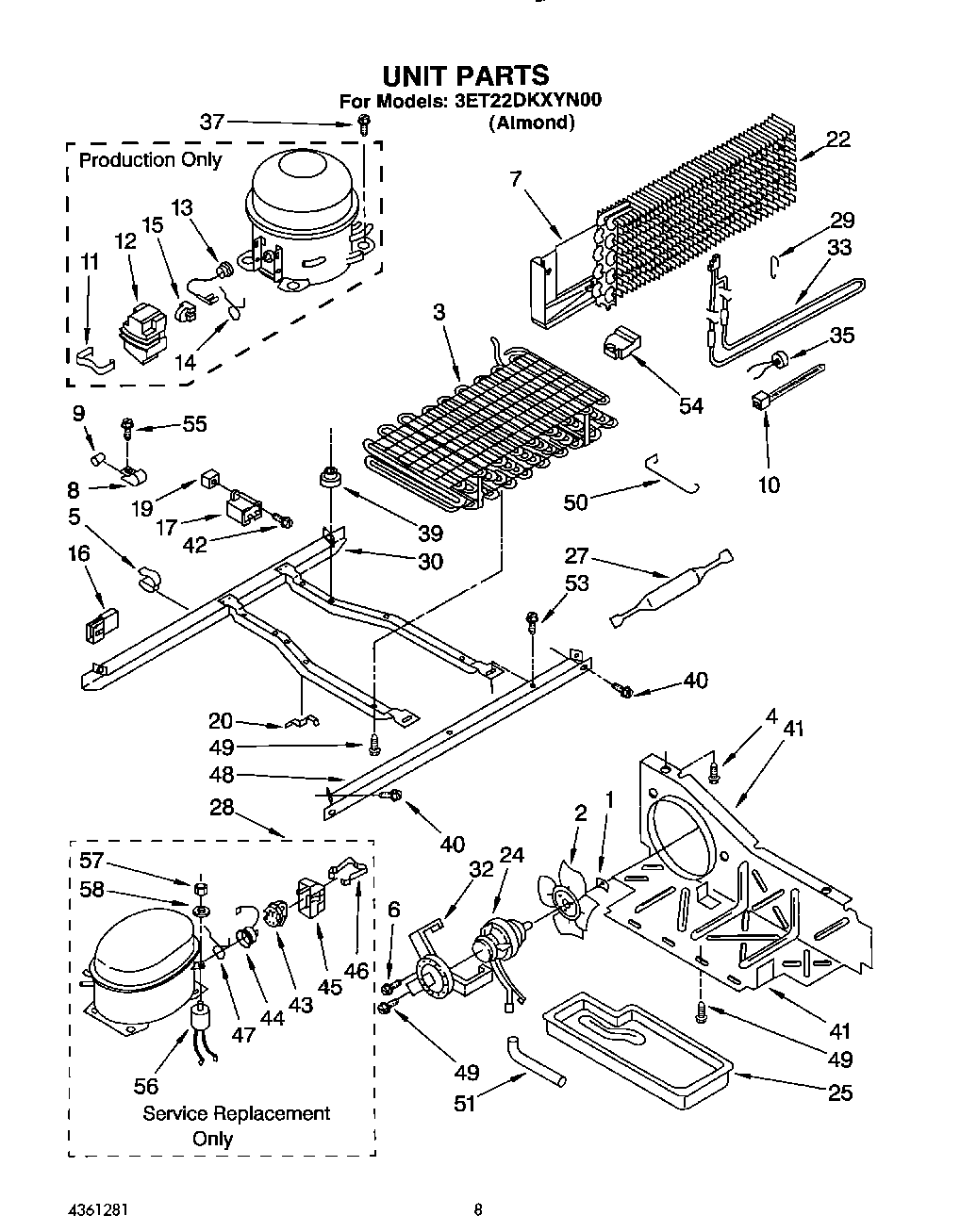

3ET22DKXYN00 06 – UNIT

3ET22DKXYN00 06 – UNIT

Written by

in

3ET22DKXYN00 06 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
5W10169512 Whirlpool Clip
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
8Clamp Tube
9Dampener (2)
10WPW10339879 Whirlpool Wire Tie
16Housing Plug
19Screw Grommet
20Clip (2)
22Evaporator
248201703 Whirlpool Refrigerator Condenser Motor
25Tray, Evaporator
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order 876765 Tube Kit)
29Support, Heater
302304903 Whirlpool Refrigerator Frame
32Fan, Motor Bracket
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
42W11693756 Whirlpool Screw Assembly
43Relay
44Overload
45Cover
46Strap
47Spring, Overload
48Unit Mounting Rail
49WP489464 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51Drain Extension
53WP489427 Whirlpool Refrigerator Screw
54Support (R.S.)
54Support (L.S.)
55WP489478 Whirlpool Refrigerator Screw
56Capacitor
57Nut
58VALVE, ACCESS (5/8“)
58Washer
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58876764 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58978026 Whirlpool Refrigerator Primary Valve
