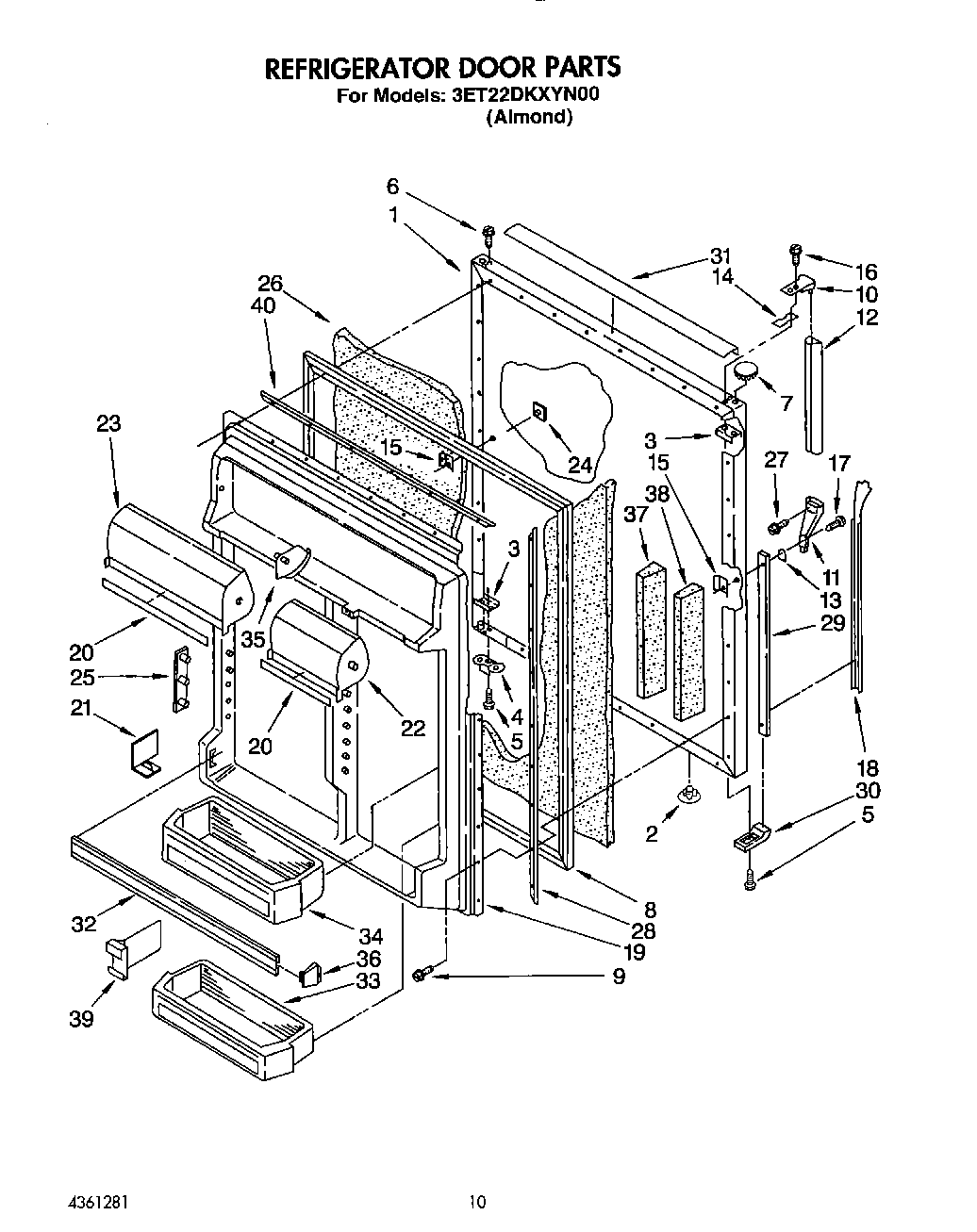

3ET22DKXYW00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
2	Hole Plug (2) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider, Shelf
22	Compartment Door, Right Side
23	Compartment Door, Left Side
24	Hole Plug, Handle (Almond)
25	Pin Plate (8)
26	WPL 876029
27	Screw
28	Gasket, Retainer
29	Retainer, Insert
30	WPL 1105804
31	Trim, Door
32	Trim, Door Shelf
33	Bin, Door Shelf (2)
34	Bin, Door Shelf (Deep) (2)
35	WP1118001 Whirlpool Hinge Pin
36	4386917 Whirlpool Endcap Kit
37	WPL 1122711
38	WPL 1122709
39	Divider, Bin
40	Gasket Retainer, Top & Bottom
