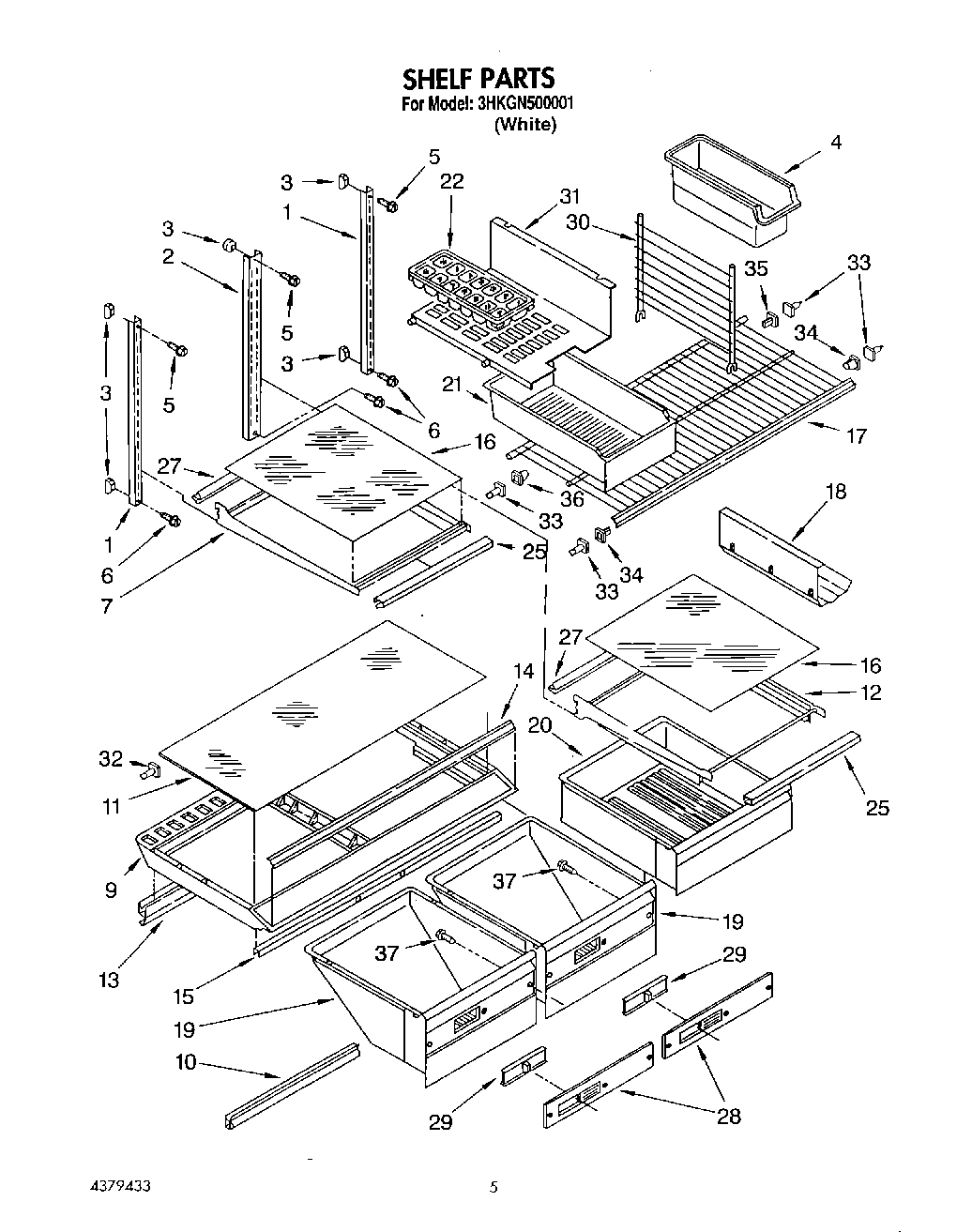

3HKGN500001 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2165202
	Torx Key
	WPL LIT2165200
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	WP982704 Whirlpool Refrigerator Container
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
9	Crisper Cover
10	Crisper, Gasket Front (2)
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Crisper, Gasket Rear (2)
14	Trim, Crisper Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Wine & Egg Rack
19	Pan, Crisper
20	Pan, Meat
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
25	Gasket
27	Retainer, Glass
28	Crisper, Pan Front
29	Slide, Crisper
30	Divider
31	Shelf, Ice Tray
32	W10854959 Whirlpool Refrigerator Shelf Stud
33	Stud, Support
34	Stud, Front R.S.
35	819091 Whirlpool Refrigerator Shelf Stud
37	606755 Whirlpool Refrigerator Bag
37	511873 Whirlpool Refrigerator Paint
37	350942 Whirlpool Spray Paint
37	212643 Whirlpool Refrigerator Permagum Sealer
37	Almond (Uncut)
37	Leveler (Thinner)
37	WP72107 Whirlpool Touchup
37	799344 Whirlpool Refrigerator Paint
37	72017 Whirlpool Appliance Touch-Up Paint White
37	350956 Whirlpool Spray Assembly
37	833938 Whirlpool Refrigerator Terminal
37	876370 Whirlpool Refrigerator Insulation
37	72032 Whirlpool Touch Up Paint Black
37	WPL 799833
37	285006 Whirlpool Spray
37	WPL 876029
37	CEMENT, ALUMILASTIC (1 1/4 OZ.)
37	TAPE, VINYL (3/4 X 108“)
37	WP542638 Whirlpool Refrigerator Grease
37	Screw (6)
37	WP505587 Whirlpool Refrigerator Sealer
37	WP503695 Whirlpool Refrigerator Sealer
37	350930 Whirlpool White Spray Paint
